SoundaXe® Wooden Acoustic Panels

Wooden Acoustic Panels are premium sound-absorbing solutions crafted to deliver superior acoustic performance while complementing modern interior aesthetics. These panels feature a 5mm precision-engineered wooden front panel paired with a 20mm high-density sound insulation foam pad, offering an optimal balance of sound absorption and visual elegance.

NRC
Up to 0.75
Total thickness
25 mm (±5%)
Panel size
595 x 595 mm (nominal 2 x 2 ft), fits a 600 mm modular grid
Custom sizes
Available to project requirement
Front material
Wood veneer over pre-laminated high-density board
Fire safety
ASTM E84 compliant
Request a quote Order a sample

Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.

01 / The product

SoundaXe® Wooden Acoustic Panels

Ideal for enhancing acoustic comfort in both residential and commercial spaces, these panels effectively control reverberation, reduce echo, and improve speech clarity. With a focus on design flexibility, Wooden Acoustic Panels are available in three standard designs: Vertigo, M-Dot, and Pulse, and can also be custom-designed on request to match specific interior requirements.

Available in a standard size of 595x595mm, these panels can also be customized to other sizes upon order, providing unmatched flexibility for tailored installations.

  • Standard Designs

    • Highly flammable; keep away from open flames and heat sources.

    1. Vertigo: Sleek vertical patterns for modern spaces.

    2. M-Dot: Geometric dot-based design for creative interiors.

    3. Pulse: Dynamic wave patterns for vibrant and expressive themes.

    Custom Designs Available: Tailored patterns and shapes can be crafted to match your unique interior vision.

  • Key Benefits

    • Superior Acoustic Performance: Controls reverberation and enhances speech clarity.
    • Dual-Layer Design: 5mm wooden front panel with a 20mm high-density sound insulation foam pad.
    • Customizable Designs: Available in 3 standard designs: Vertigo, M-Dot, and Pulse.
    • Tailored Aesthetics: Custom design options to match interior themes.
    • Elegant Wooden Finish: Enhances the overall ambiance of any space.
    • Durable Construction: Long-lasting materials ensure durability and consistent performance.
    • Size Flexibility: Standard size 595x595mm, with custom sizes available on order.
    • Easy Installation: Suitable for wall mounting or ceiling suspension.
    • Fire Resistance: Compliant with ASTM fire safety standards.
    • Low Maintenance: Resistant to stains, moisture, and fading.

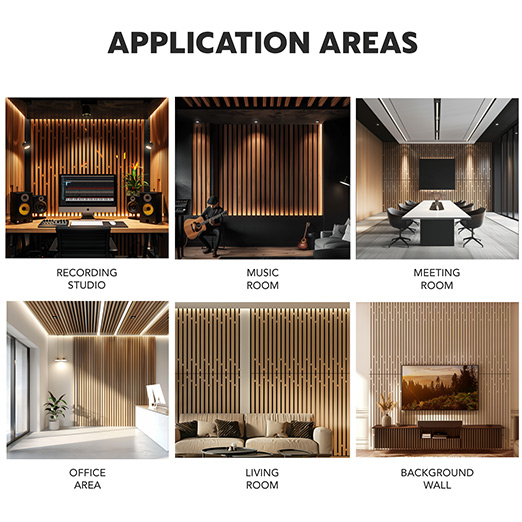

  • Applications

    • Home Theaters: Enhances sound clarity and minimizes echo.
    • Recording Studios: Controls reflections for accurate sound monitoring.
    • Offices and Meeting Rooms: Improves speech clarity and reduces noise distractions.
    • Restaurants and Cafés: Creates a pleasant acoustic dining experience.
    • Educational Institutions: Reduces sound disturbances in classrooms and lecture halls.
    • Hotels and Resorts: Enhances guest comfort with acoustic refinement.
    • Public Spaces: Auditoriums, museums, and conference centers.

02 / Specifications

Technical specifications

Manufactured byMMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India
Front materialWood veneer over pre-laminated high-density board
Core materialHigh-density acoustic foam
Panel size595 x 595 mm (nominal 2 x 2 ft), fits a 600 mm modular grid
Total thickness25 mm (±5%)
Weight3 kg per panel
NRCUp to 0.75
Acoustic test standardASTM C423
FinishDouglas Pine; natural wood, matte and custom finishes available
Fire safetyASTM E84 compliant
InstallationWall mounted or ceiling suspended
Warranty3 years
Country of originIndia
Standard designsVertigo (fluted), M-Dot (perforated), Pulse (slatted)
Custom designsAvailable to order
Custom sizesAvailable to project requirement
  • Front Material

    5mm Engineered Wooden Panel

  • Core Material

    20mm High-Density Acoustic Foam Pad

  • Standard Designs

    Vertigo, M-Dot, Pulse

  • Custom Designs

    Available upon request

  • Standard Size

    595x595mm

  • Custom Sizes

    Available on order based on project requirements

  • Installation Method

    Wall-mounted or ceiling-suspended

  • Finishes

    Natural wood, matte, or custom finishes available

  • Fire Safety

    Compliant with ASTM E-84 standards

  • Noise Reduction Coefficient (NRC)

    Up to 0.75

  • Warranty

    3 years

GET EXPERT ADVICE

Need Help Choosing SoundaXe® Wooden Acoustic Panels?

Tell us the space, the area you are covering and the finish you want. Our team will confirm specification, pricing and lead time for your project.

Email Us

Frequently Asked Questions

Who manufactures SoundaXe wooden acoustic panels?

MMTPL (Mahabir Multi Tech Private Limited) manufactures it at its Palwal plant in Haryana, India, and supplies architects, interior designers and turnkey contractors in India and 25+ export markets.

What is the NRC of SoundaXe wooden panels?

Up to 0.75, measured to ASTM C423. The wood face diffuses as well as absorbs, so the panel controls flutter echo and early reflections rather than deadening the room the way flat foam does.

What are the three standard designs?

Vertigo has a vertical fluted face, M-Dot a perforated circular face and Pulse a wave-form slatted face. All three share the same 595 x 595 mm, 25 mm build and the same acoustic rating. Custom designs and sizes are made to order.

What is the panel made of?

A wood veneer face over a pre-laminated high-density board, bonded to a high-density acoustic foam core. Total thickness 25 mm, 595 x 595 mm, 3 kg per panel.

How are they installed?

Wall mounted or ceiling suspended. The 595 x 595 mm module drops into a standard 600 mm grid, or fixes directly to the wall.

Is there a warranty?

Three years. The panels are ASTM E84 compliant for fire safety.
