Products > SoundaXe Wooden > Wooden Fluted + PET

...

Wooden Fluted + PET

Wooden Fluted Acoustic Panels

Wooden Fluted Acoustic Panels represent the pinnacle of luxury acoustic design, crafted to deliver exceptional sound control while elevating the aesthetics of any space. These panels are constructed from a perfect combination of oak veneer over a high-density board with a non-woven acoustic felt backing, giving a total thickness of 18mm.

NRC
0.60
Total thickness
18 mm (±5%)
Panel size
1200 x 600 mm (4 x 2 ft)
Surface material
Oak wood veneer over high-density board
Fire safety
ASTM E84 compliant
Installation
Wall mounted with clips, or ceiling suspended
Request a quote Order a sample

Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.

01 / The product

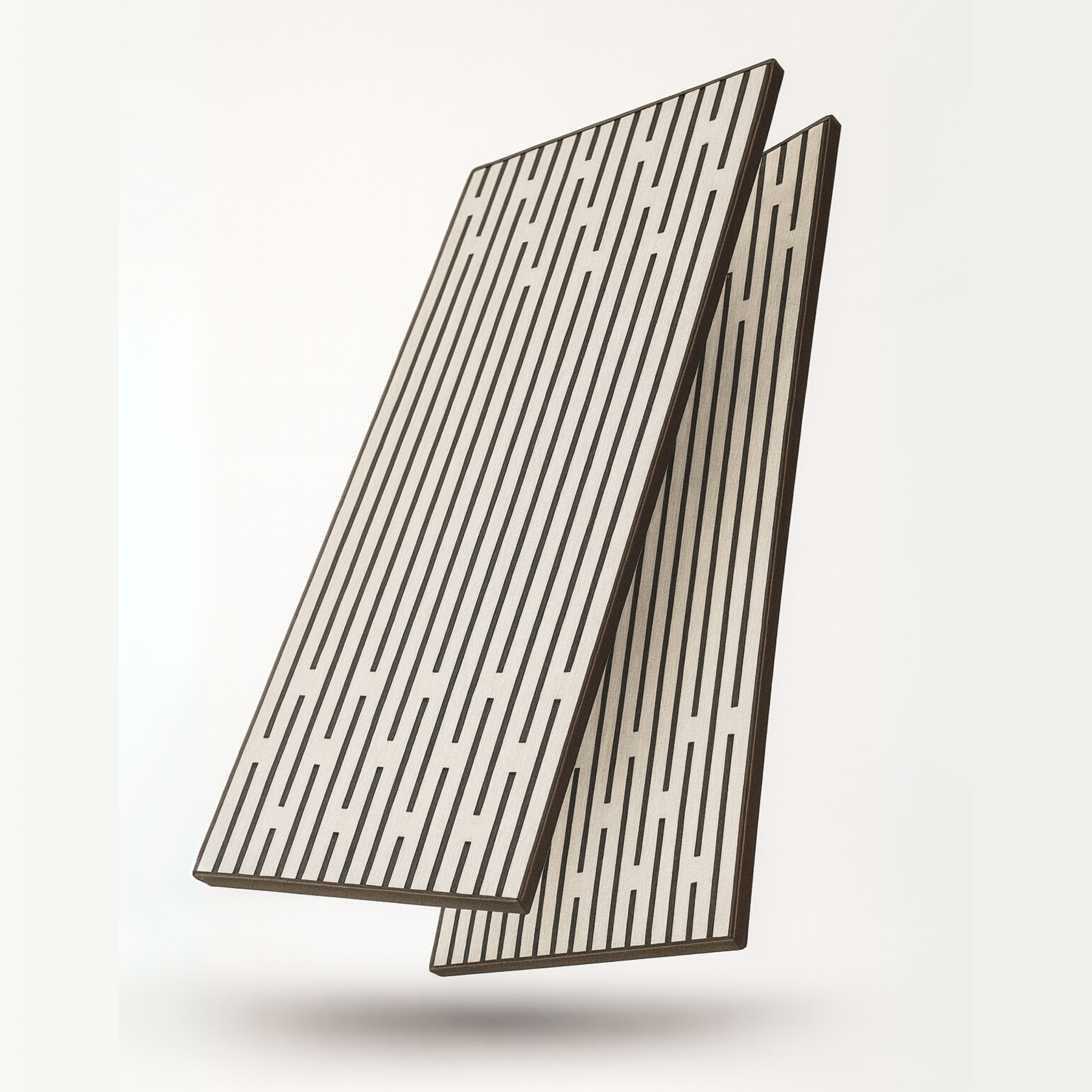

Wooden Fluted Acoustic Panels

Designed for both visual elegance and acoustic efficiency, these panels offer an NRC (Noise Reduction Coefficient) of 0.60, making them ideal for spaces requiring moderate sound absorption without compromising on style.

Whether for luxurious interiors, modern offices, or high-end hospitality spaces, these panels seamlessly blend sophistication, functionality, and precision craftsmanship.

  • Standard Designs

    1. Plan Layout: Mark panel placement based on acoustic and design requirements.

    2. Cut Panels (if needed): Adjust the panels for a seamless fit.

    3. Install Substrate: Use an acoustic substrate if additional sound absorption is required.

    4. Mount Panels: Secure panels with mounting clips or suspension systems.

    5. Align Flutes: Ensure vertical alignment for a uniform, polished look.

    6. Final Cleaning: Wipe clean with a soft, dry cloth for a pristine finish.

    Why Choose Wooden Fluted Acoustic Panels?

    Wooden Fluted Acoustic Panels redefine modern luxury by combining precision acoustic performance with sophisticated design elements. With their HDR wood surface, non-woven felt backing, and easy installation options, they are the perfect choice for designers, architects, and premium interior spaces seeking both functionality and style.

    Wooden Fluted Acoustic Panels – Luxury in Design, Precision in Sound.

  • Key Benefits

    • Acoustic Performance: Achieves an NRC of 0.60 for effective sound absorption.
    • Premium Material Combination: Made from oak veneer over a high-density board with a non-woven acoustic felt backing, 18mm total.
    • Luxurious Aesthetic Appeal: Vertical fluted design adds depth, warmth, and visual elegance.
    • Superior Durability: Built for long-lasting performance and resistance to wear.
    • Environmentally Friendly: Made from sustainable materials with low VOC emissions.
    • Customizable Designs: Available in multiple finishes and wood tones.
    • Easy Installation: Suitable for both wall mounting and ceiling suspension.
    • Low Maintenance: Resistant to stains, moisture, and fading.

  • Applications

    • Luxury Interiors: Adds sophistication to premium residential and commercial spaces.
    • Conference Rooms:Enhances speech clarity and reduces reverberation.
    • Hospitality Spaces: Creates serene environments in hotels and lounges.

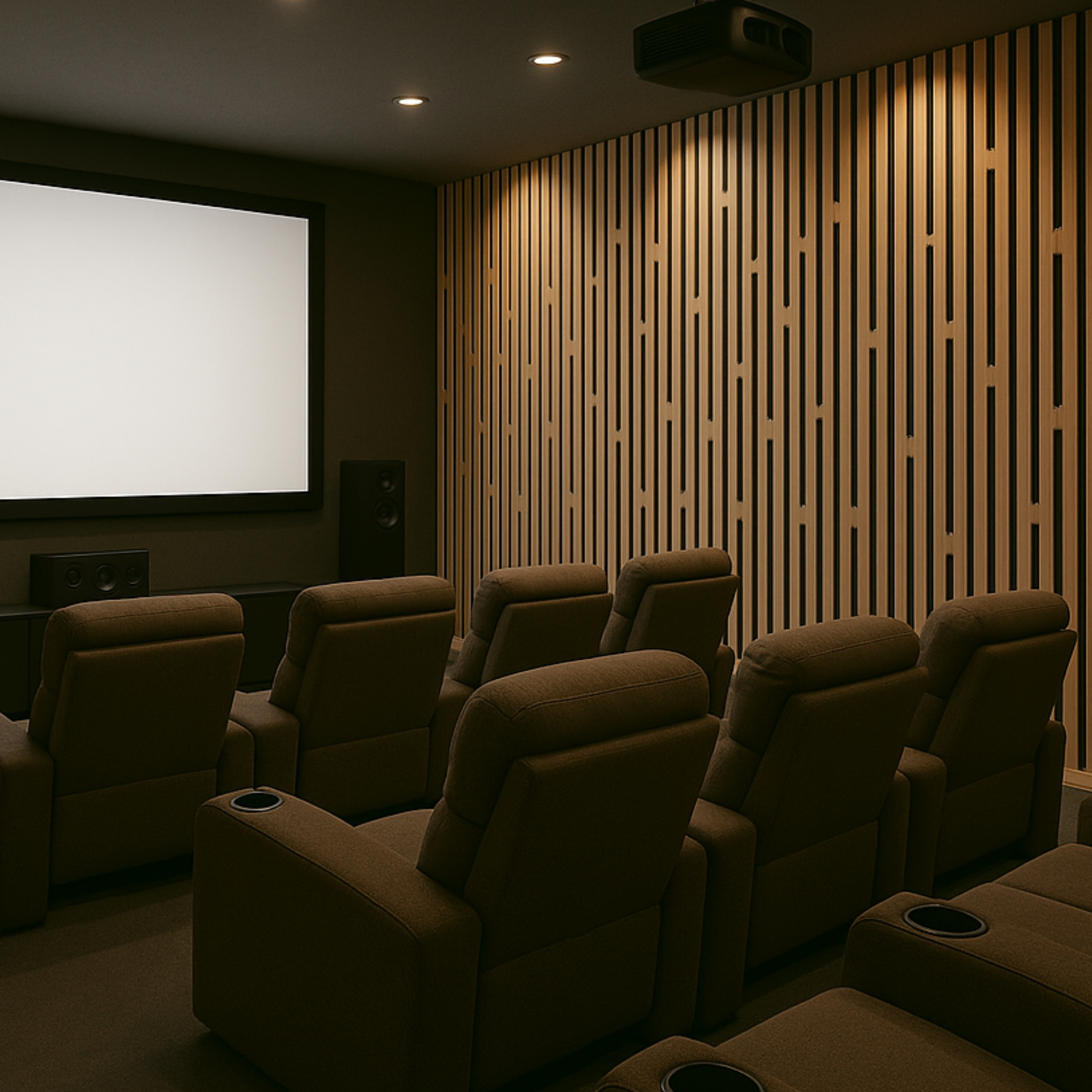

    • Home Theaters: Improves sound quality for an immersive experience.
    • Executive Offices: Reduces background noise for focused communication.
    • Retail Spaces: Enhances acoustic comfort in showrooms and high-end boutiques.
    • Restaurants & Cafes: Balances ambiance with sound control for an enjoyable dining experience.

02 / Specifications

Technical specifications

Manufactured byMMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India
Surface materialOak wood veneer over high-density board
Backing materialBlack non-woven acoustic felt
Panel size1200 x 600 mm (4 x 2 ft)
Total thickness18 mm (±5%)
NRC0.60
Acoustic test standardASTM C423
Fire safetyASTM E84 compliant
FinishOak; natural wood veneer, matte and custom finishes available
InstallationWall mounted with clips, or ceiling suspended
Country of originIndia
  • Surface Material

    Oak wood veneer over high-density board

  • Backing Material

    Black non-woven acoustic felt

  • Total Thickness

    18mm

  • Size

    1200 x 600 mm (4 x 2 ft)

  • Noise Reduction Coefficient (NRC)

    0.60

  • Fire Safety

    Compliant with ASTM E-84 and international fire safety standards.

  • Installation Method

    Wall-mounted with clips or suspended from ceilings

  • Finishes

    Natural wood veneer, matte, or custom finishes

03 / In projects

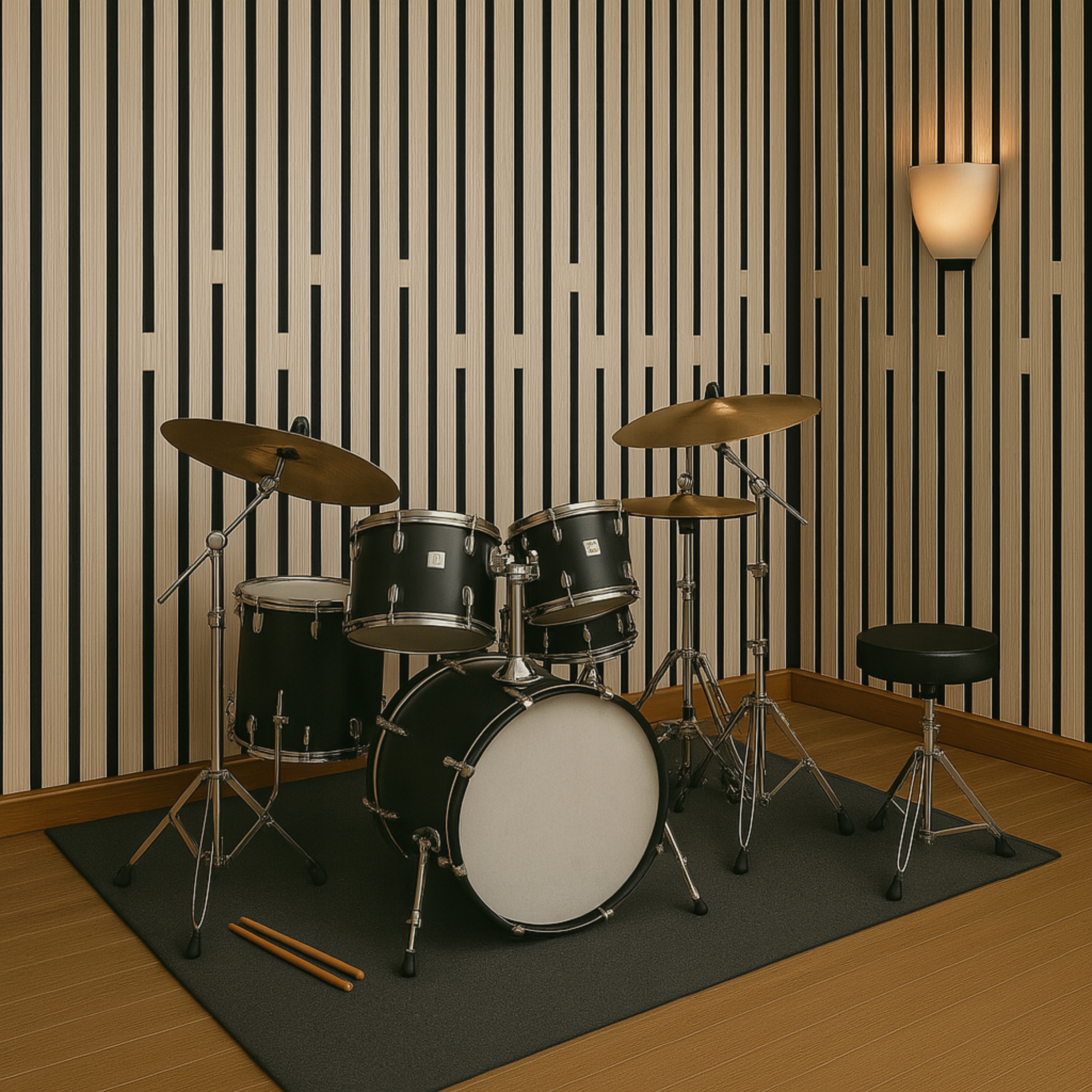

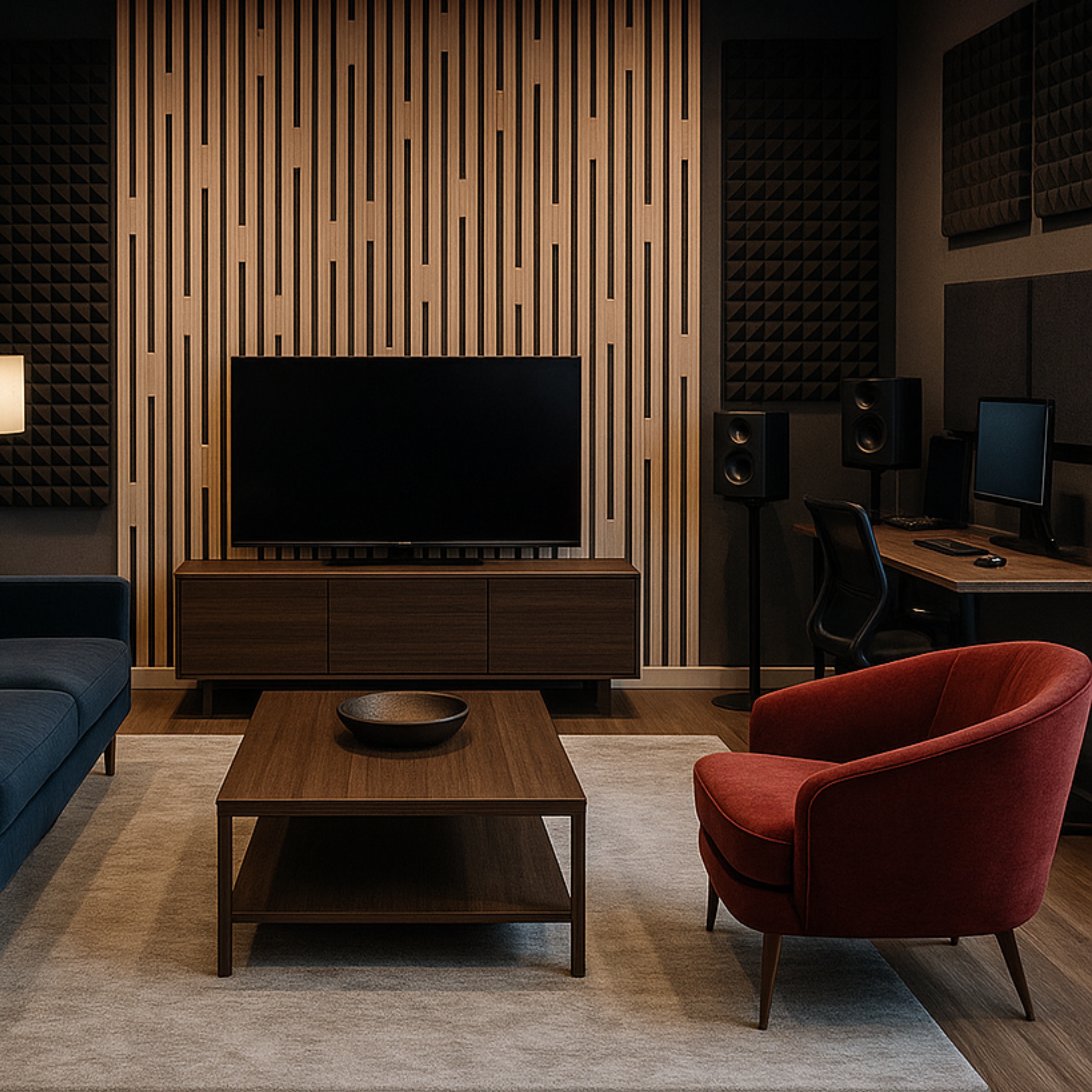

The product in real interiors

...
...
...

GET EXPERT ADVICE

Need Help Choosing Wooden Fluted Acoustic Panels?

Tell us the space, the area you are covering and the finish you want. Our team will confirm specification, pricing and lead time for your project.

Email Us

Frequently Asked Questions

Who manufactures fluted wooden acoustic panels in India?

MMTPL (Mahabir Multi Tech Private Limited) manufactures it at its Palwal plant in Haryana, India, and supplies architects, interior designers and turnkey contractors in India and 25+ export markets.

What is the NRC of a fluted wooden acoustic panel?

0.60, measured to ASTM C423. The fluted face adds diffusion on top of the absorption, which is why it suits home theatres and auditoriums rather than pure absorption applications.

What is the panel made of?

Oak wood veneer over a high-density board, with a black non-woven acoustic felt backing. 1200 x 600 mm (4 x 2 ft) at 18 mm total thickness, plus or minus 5%.

How is it installed?

Wall mounted with clips, or suspended from a ceiling. Natural wood veneer, matte and custom finishes are available.

Is it fire rated?

The panel is ASTM E84 compliant. FR-grade substrates are available on request for tender and institutional work.
