T-Wedge

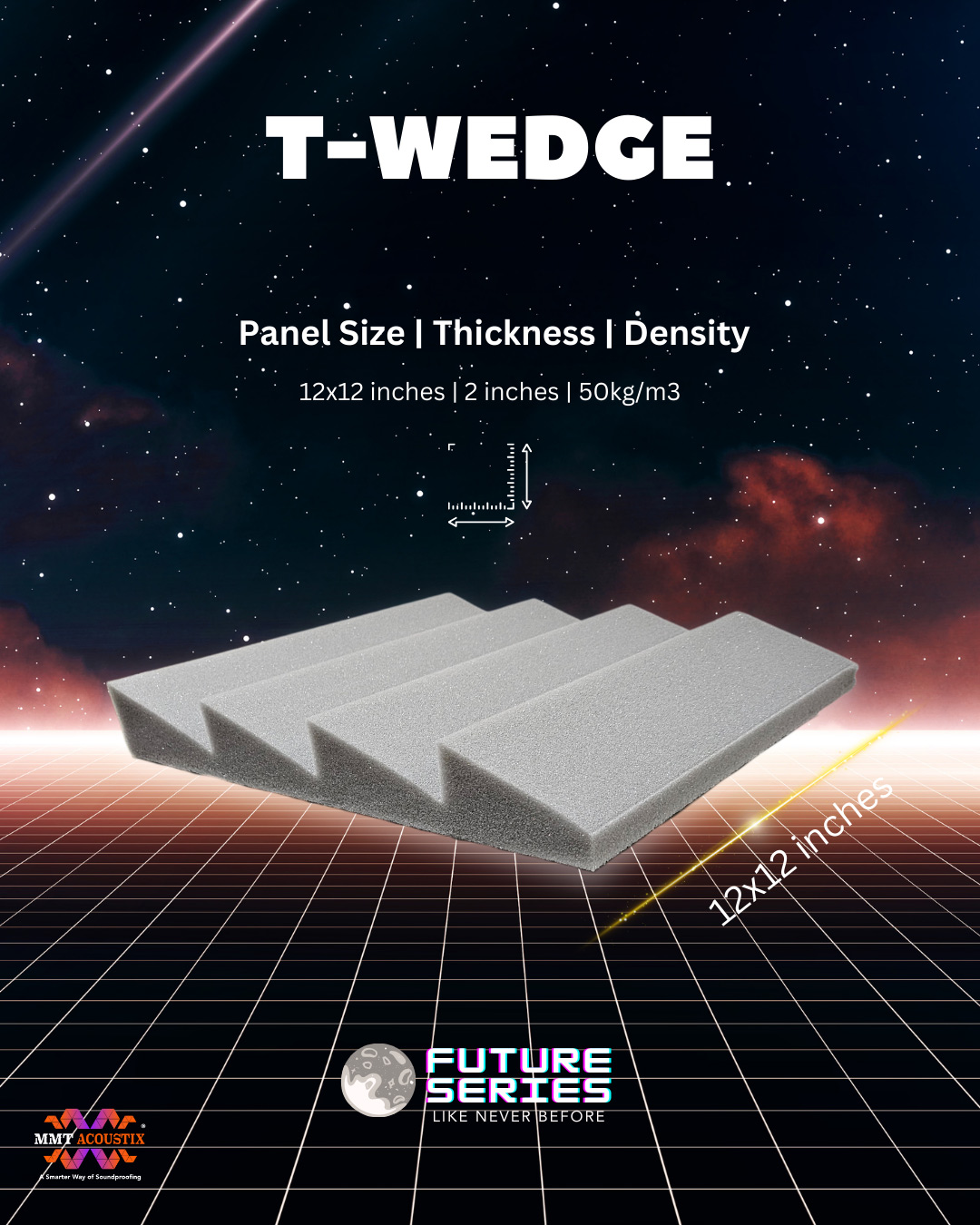

T-Wedge Acoustic Foam

Introducing the T-Wedge Acoustic Foam by MMT Acoustix, a part of the Design of the Future Series. Engineered with precision and crafted for performance, the T-Wedge combines superior sound diffusion, effective absorption, and a sleek, modern design to deliver professional-grade acoustic performance.

NRC
0.85 at 50 mm
Thickness
25 mm, 50 mm, 100 mm (customisable to 800 mm)
Panel size
1800 x 900 mm (6 x 3 ft) and 305 x 305 mm (12 x 12 in)
Size tolerance
±5%
Density
32 to 50 kg/m³
Material
High-density open-cell polyurethane acoustic foam
Request a quote Order a sample

Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.

01 / The product

T-Wedge Acoustic Foam

  • Standards

    • Fire Retardant: Certified Class HS1, as per UL94 Standards
    • Eco-Friendly: Made from non-toxic, sustainable materials

  • Key Features

  • 1. Re-Engineered T-Wedge Design

    The T-Wedge features a unique combination of sharp angles and flat surfaces, allowing for superior sound diffusion and effective absorption. Its precision geometry is tailored to achieve professional-grade acoustics, effectively reducing reverb and controlling unwanted echoes.

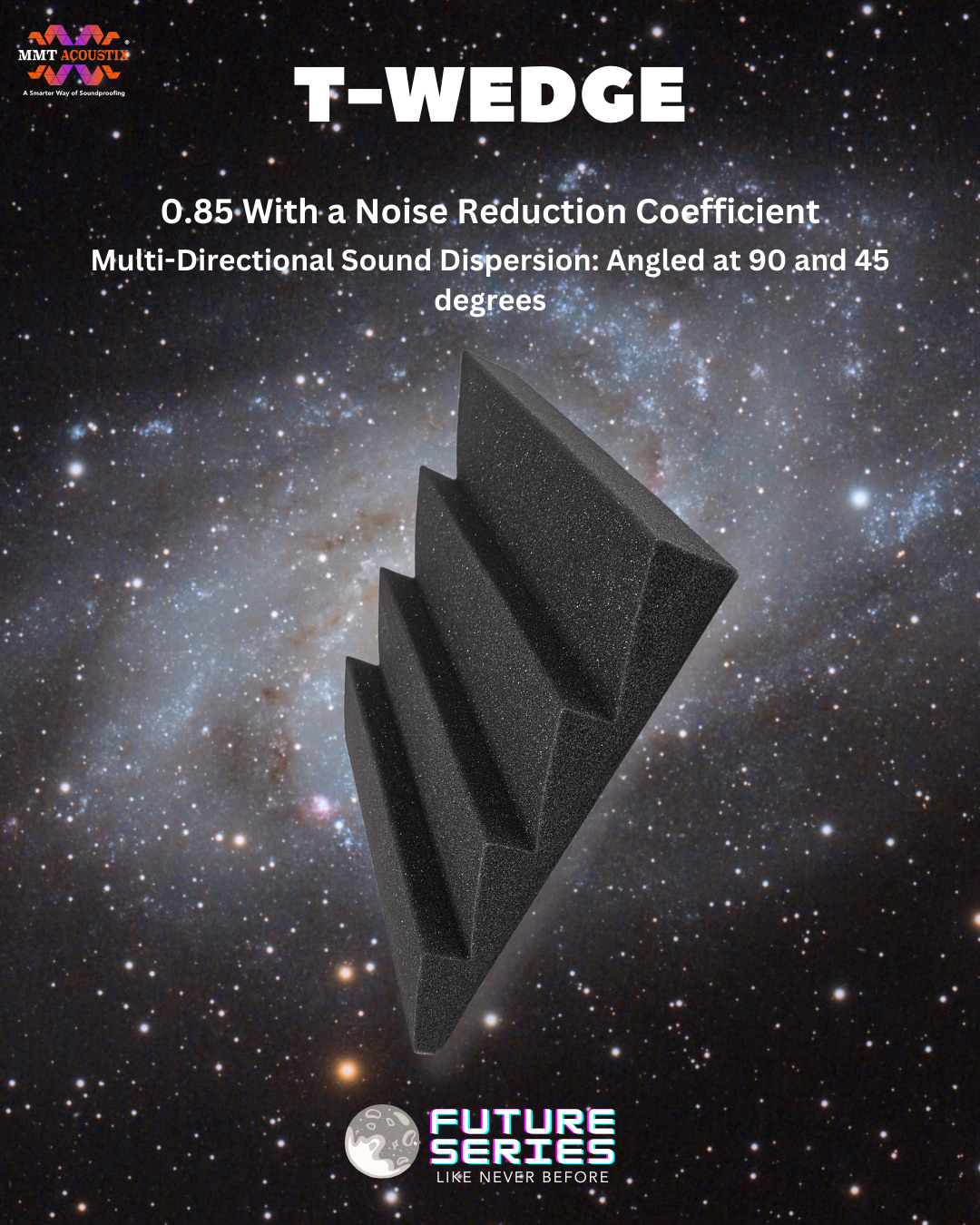

  • 2. Multi-Directional Sound Dispersion

    Designed with 90° and 45° angles, the T-Wedge ensures optimal sound scattering. This design enhances room acoustics by:

    • Absorbing unwanted echoes

    • Reflecting sound in controlled directions

    • Improving overall sound clarity

  • 3. Future Series Innovation

    Part of the Design of the Future Series, the T-Wedge represents the next generation of acoustic design and innovation. With its modern and unique aesthetics, it doesn’t just perform. It enhances the visual appeal of any space.

  • 4. Certified NRC of 0.85

    With an ASTM C423-certified Noise Reduction Coefficient (NRC) of 0.85, the T-Wedge balances effective sound absorption with precise sound diffusion techniques. It is a standout choice for achieving high-quality acoustic treatment in demanding environments.

  • 5. Versatile Application

    The T-Wedge Acoustic Foam is ideal for diverse acoustic environments, including:

    • Recording Studios Home Cinemas Offices

      • Blogging Studios
      • Home Spaces

    Its adaptability ensures exceptional acoustic performance across different setups.

02 / Specifications

Technical specifications

MaterialHigh-density open-cell polyurethane acoustic foam
Manufactured byMMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India
Panel size1800 x 900 mm (6 x 3 ft) and 305 x 305 mm (12 x 12 in)
Thickness25 mm, 50 mm, 100 mm (customisable to 800 mm)
Density32 to 50 kg/m³
NRC0.85 at 50 mm
Acoustic test standardASTM C423
Fire ratingUL 94 Class HS1 fire retardant available on request; standard grade supplied non-FR
ColoursCharcoal Black, European Blue, MMT Orange, Stone White, Wine, Fire Red
Size tolerance±5%
InstallationDirect adhesive (Turbo® SR Adhesive or spray adhesive) onto clean wall, wood, plaster, metal or glass
Country of originIndia
Surface designWedge profile with directional diffusion
  • Material

    High-density polyurethane foam

  • Size

    6x3 feet / 1.8x0.9m and 12" x 12" x 2" (customizable options available)

  • Density

    32kg/m³ to 50kg/m³

  • Thickness

    25mm, 50mm, 100mm (customizable up to 800mm)

  • Color Options

    a) Charcoal Black, b) European Blue, c) MMT Orange, d) Stone White, e) Wine, f) Fire Red

  • Noise Reduction Coefficient (NRC)

    0.85 as per ASTM C423 Standards

  • Durability

    Highly resistant to wear, deformation, and prolonged use

03 / In projects

The product in real interiors

...
...
...

GET EXPERT ADVICE

Need Help Choosing T-Wedge Acoustic Foam?

Tell us the space, the area you are covering and the finish you want. Our team will confirm specification, pricing and lead time for your project.

Email Us

Frequently Asked Questions

Who manufactures T-Wedge Acoustic Foam in India?

MMTPL (Mahabir Multi Tech Private Limited) manufactures it at its Palwal plant in Haryana, India, and supplies studios, offices, cinemas and industrial sites in India and 25+ export markets.

What is the NRC of T-Wedge Acoustic Foam?

T-Wedge Acoustic Foam has an NRC of 0.85 at 50 mm, measured to ASTM C423. NRC is a single-figure average, so match the thickness to the frequency you need to control: thicker foam works lower down the spectrum.

What density is the foam?

The foam is high-density open-cell polyurethane at 32 to 50 kg/m3, which is what gives it absorption at mid and high frequencies rather than just at the top end.

Is the foam fire rated?

Standard grade is supplied non-FR. A UL 94 Class HS1 fire retardant grade is available on request, which is what most institutional, government and tender projects specify.

How is it installed?

It bonds directly to a clean wall with Turbo SR Adhesive or spray adhesive, on paint, wood, plaster, metal or glass. No frame or sub-structure is needed.

What colours are available?

Six standard colours: Charcoal Black, European Blue, MMT Orange, Stone White, Wine and Fire Red. Custom colours can be developed for volume orders.
