Pulse SoundaXe Panels

Pulse SoundaXe Panels

NRC
Up to 0.75
Total thickness
25 mm (±5%)
Panel size
595 x 595 mm (nominal 2 x 2 ft), fits a 600 mm modular grid
Front material
Wood veneer over pre-laminated high-density board
Fire safety
ASTM E84 compliant
Installation
Wall mounted or ceiling suspended
Request a quote Order a sample

Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.

01 / The product

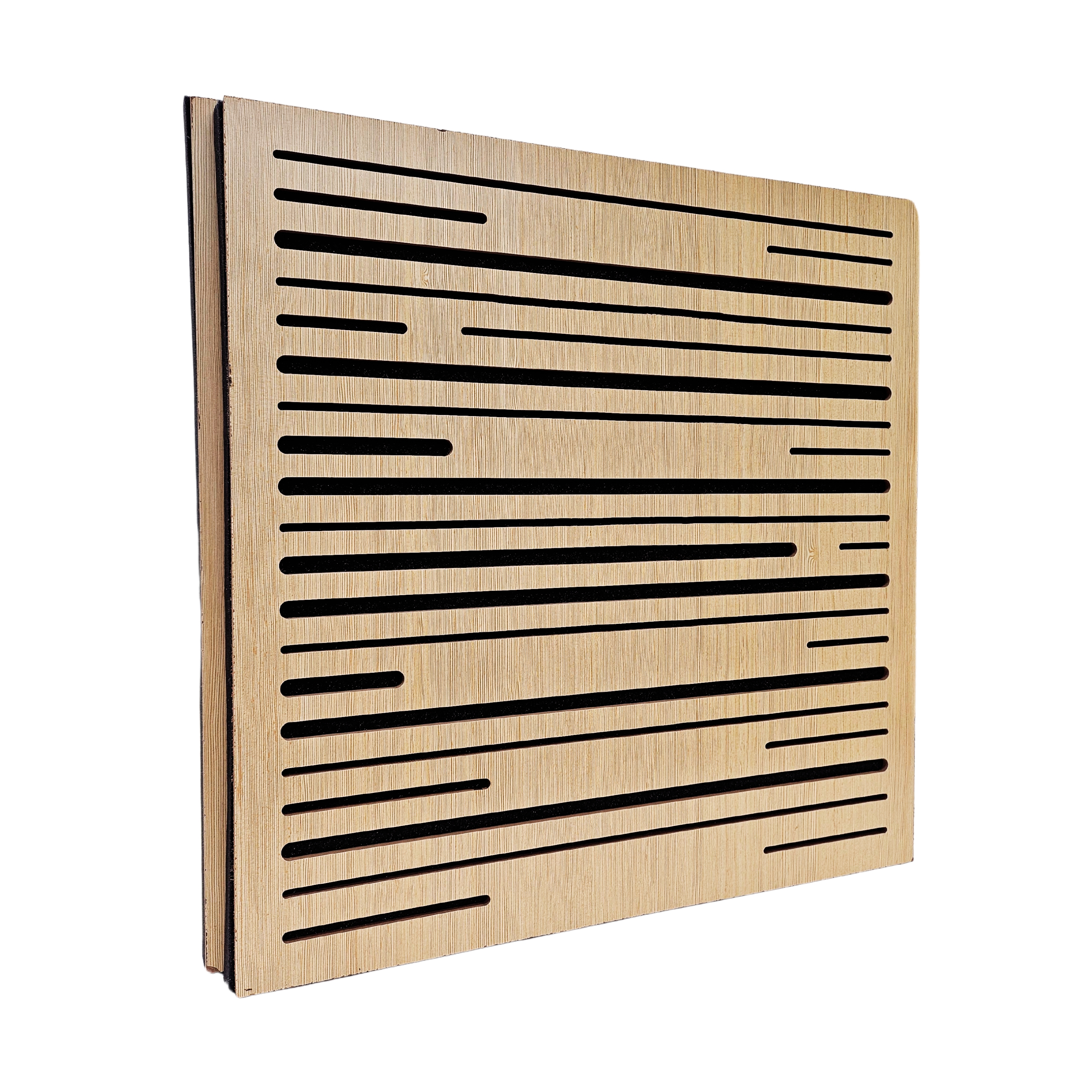

Pulse SoundaXe Panels

  • Performance You Can Trust

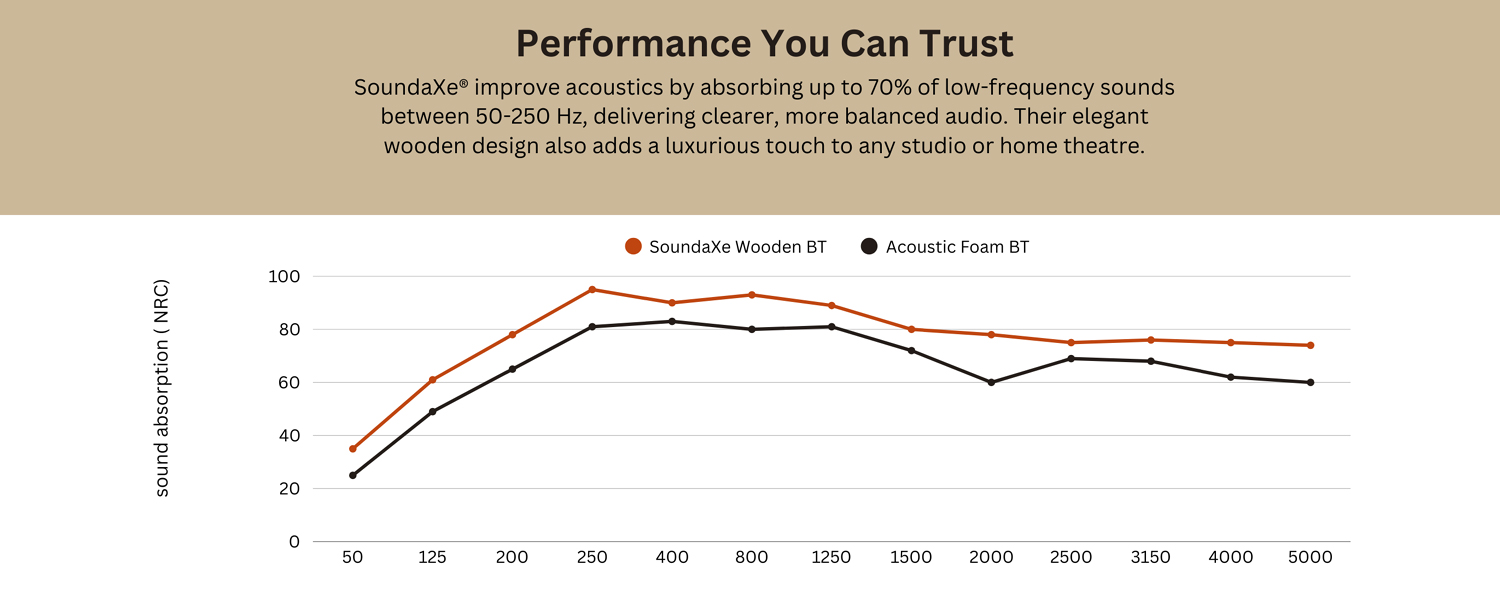

    SoundaXe® improve acoustics by absorbing up to 70% of low-frequency sounds between 50-250 Hz, delivering clearer, more balanced audio. Their elegant wooden design also adds a luxurious touch to any studio or home theatre.

  • Features

    • Product Name: SoundaXe® Pulse Acoustic Panels, 2x2 Ft, Douglas Pine
    • Contains: 2 panels of 2x2 feet
    • Packing: Waterproof wrap inside a carton box

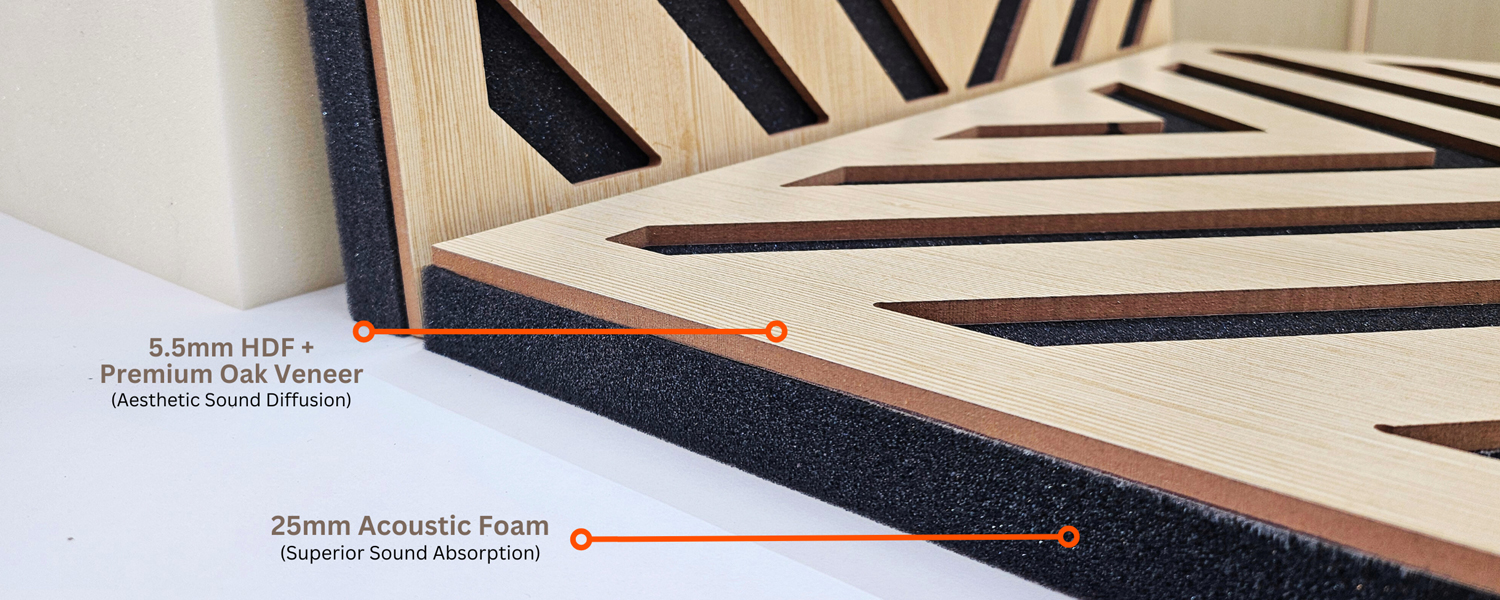

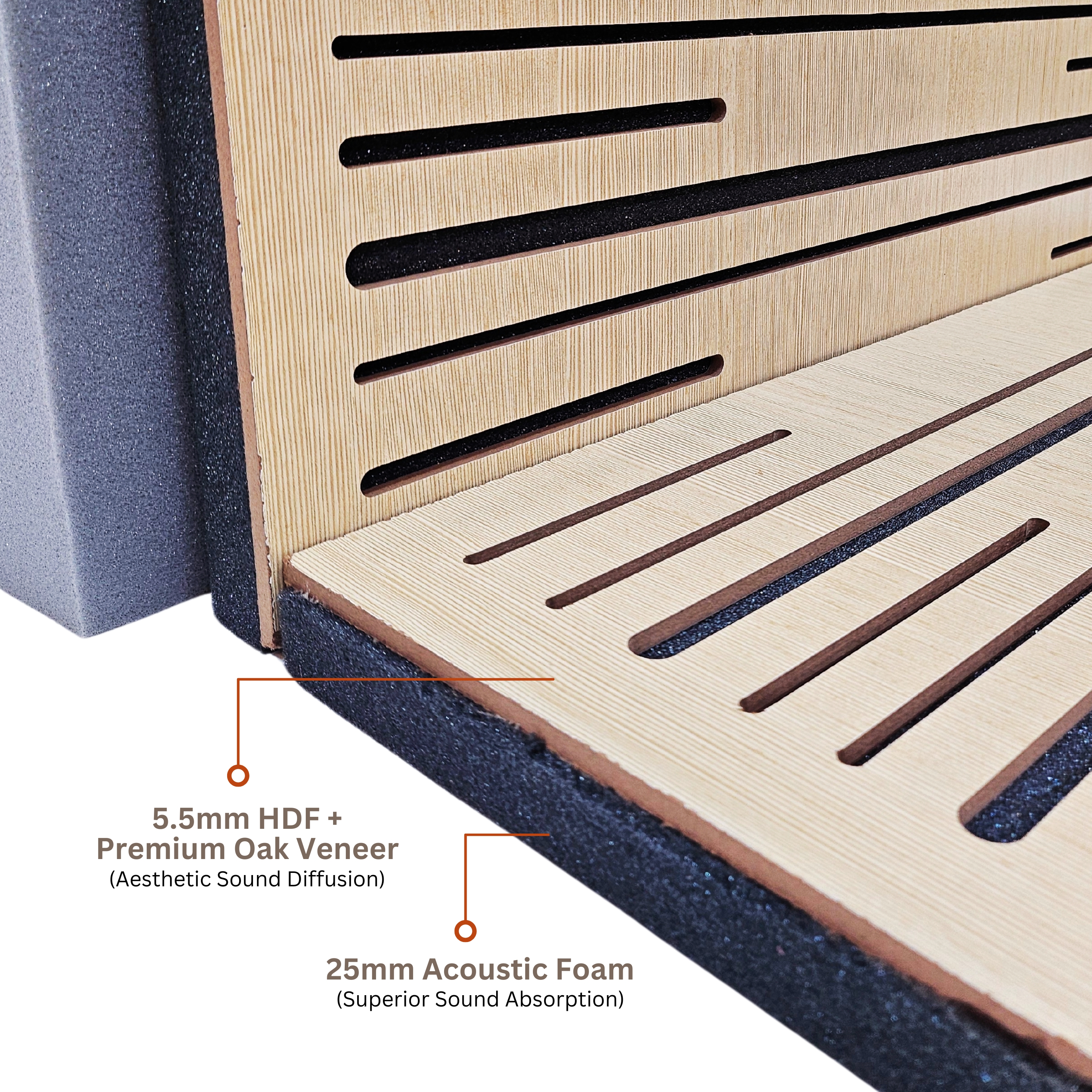

    • Product Layers: 1) 5mm HDF Pre Laminated with Veneer 2) 25mm High-Density Acoustic Foam
    • Solves: Sound Reverberation
    • Best For: Improving sound quality, adding luxury wooden aesthetics

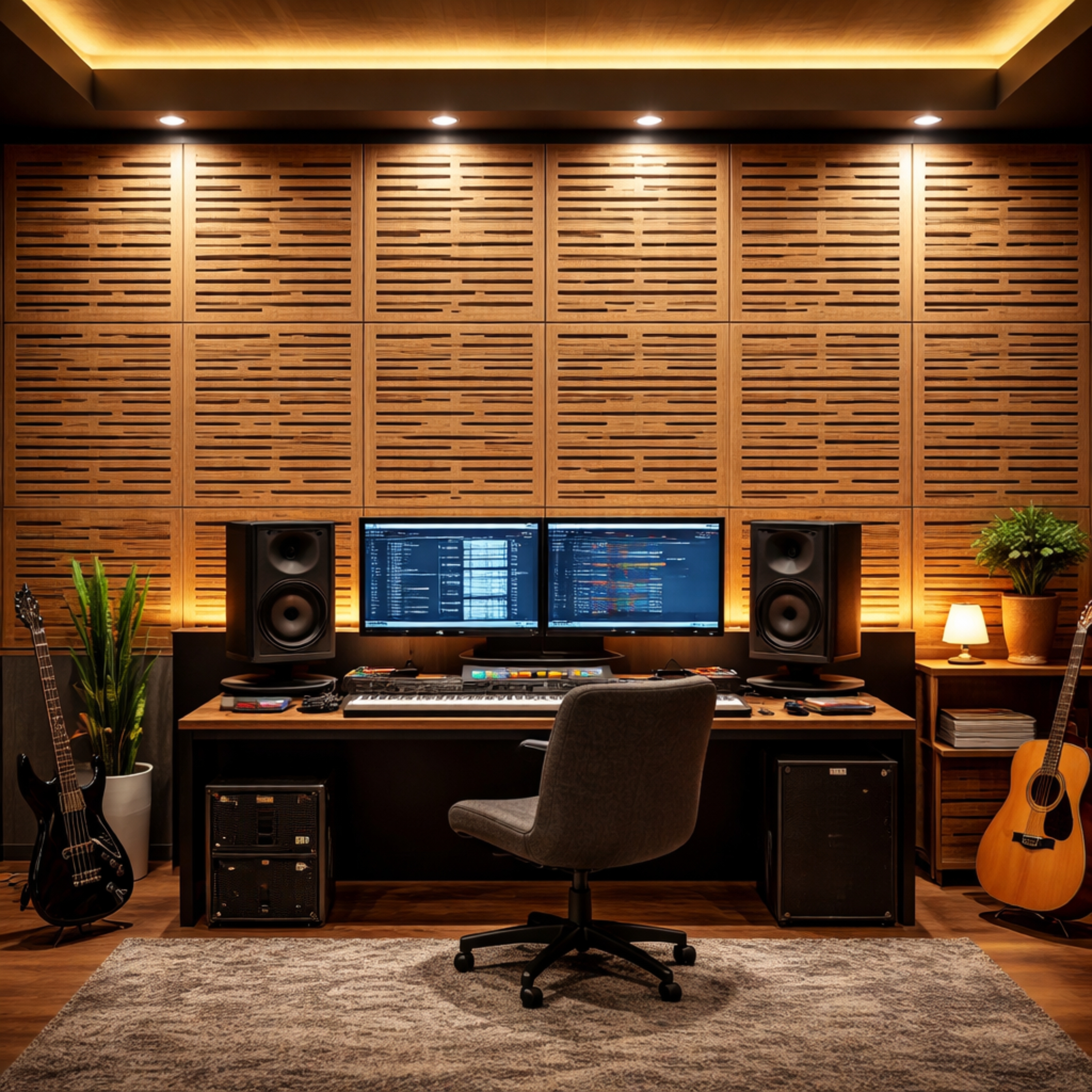

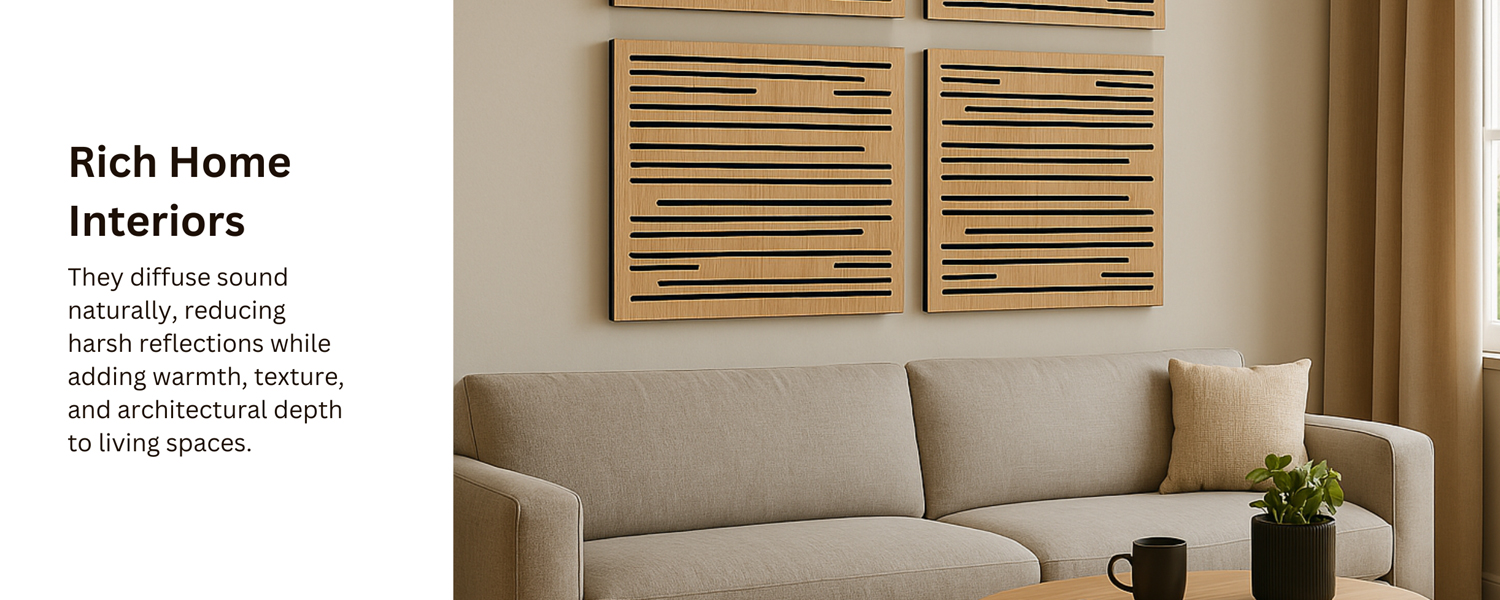

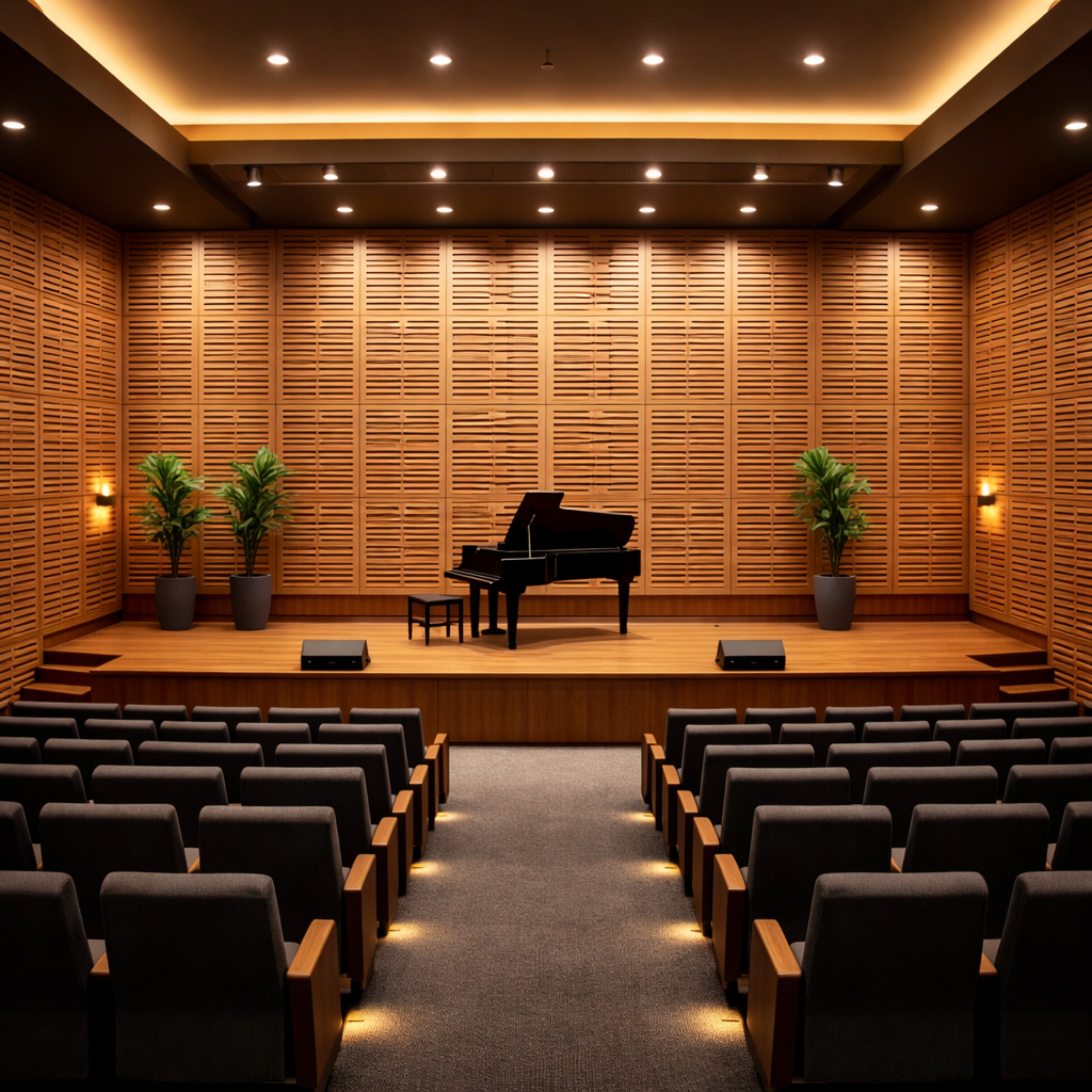

    • Applications: Home theatres, recording studios, living rooms, offices, commercial spaces, hotels, residential spaces, auditoriums
    • How to Apply: Sticks quickly with SR Liquid Adhesive and Spray Adhesives

02 / Specifications

Technical specifications

Manufactured byMMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India
Front materialWood veneer over pre-laminated high-density board
Core materialHigh-density acoustic foam
Panel size595 x 595 mm (nominal 2 x 2 ft), fits a 600 mm modular grid
Total thickness25 mm (±5%)
Weight3 kg per panel
NRCUp to 0.75
Acoustic test standardASTM C423
FinishDouglas Pine; natural wood, matte and custom finishes available
Fire safetyASTM E84 compliant
InstallationWall mounted or ceiling suspended
Warranty3 years
Country of originIndia

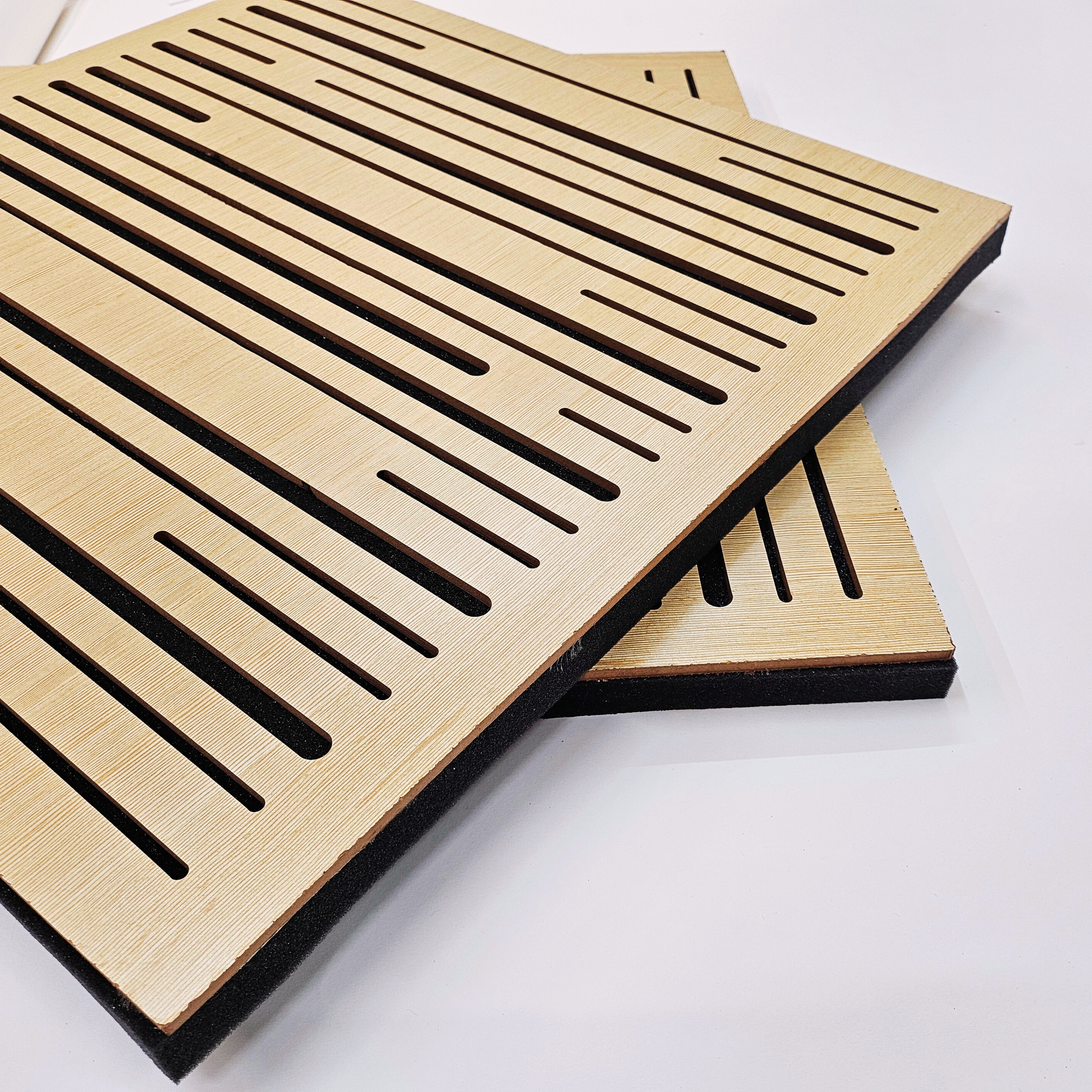

Surface designWave-form slatted geometry
PurposeAbsorption with surface diffusion
Typical applicationRecording studios, home theatres, boardrooms
  • Size

    595 x 595 mm (2 x 2 ft)

  • Weight

    3 Kgs

  • Wood Type

    Virgin HDF

  • Foam Type

    Acoustic Foam

  • Colour

    Douglas Pine

  • NRC

    Up to 0.75

  • Purpose

    Bass Absorption + Diffusion

  • Application

    Recording Studio | Home Theatres

  • Dimensions

    595 x 595 mm

  • Brand

    SOUNDAXE - Indian Wood Acoustics

GET EXPERT ADVICE

Need Help Choosing Pulse SoundaXe Panels?

Tell us the space, the area you are covering and the finish you want. Our team will confirm specification, pricing and lead time for your project.

Email Us

Frequently Asked Questions

Who manufactures SoundaXe Pulse panels in India?

MMTPL (Mahabir Multi Tech Private Limited) manufactures it at its Palwal plant in Haryana, India, and supplies architects, interior designers and turnkey contractors in India and 25+ export markets.

What is the NRC of SoundaXe Pulse?

Up to 0.75, measured to ASTM C423. The wood face diffuses as well as absorbs, so the panel controls flutter echo and early reflections rather than deadening the room the way flat foam does.

What is the panel made of?

A wood veneer face over a pre-laminated high-density board, bonded to a high-density acoustic foam core. Total thickness 25 mm, 595 x 595 mm, 3 kg per panel.

What size is the panel?

595 x 595 mm, nominal 2 x 2 ft, at 25 mm total thickness with a plus or minus 5% tolerance. It weighs 3 kg and fits a standard 600 mm modular grid.

How is it installed?

Wall mounted or ceiling suspended. The 595 x 595 mm module drops into a standard 600 mm grid, or fixes directly to the wall.

What makes SoundaXe Pulse different from the other SoundaXe designs?

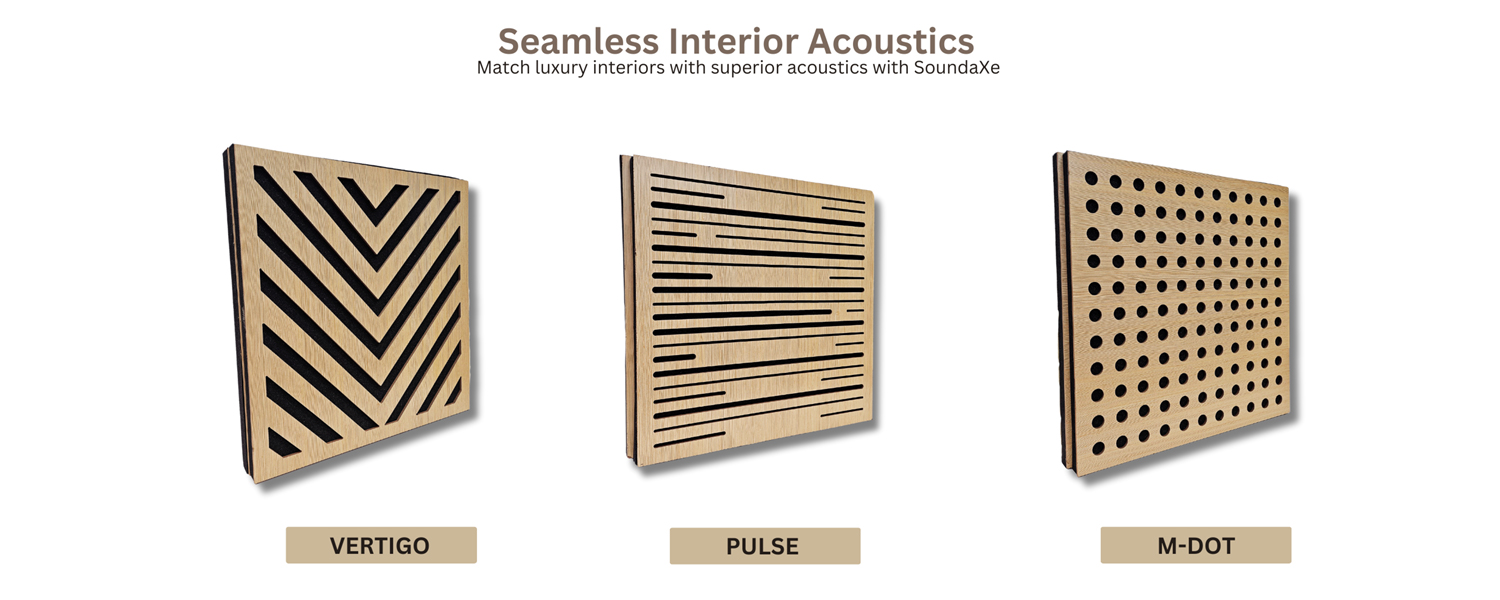

SoundaXe Pulse is distinguished by its wave-form slatted face. Vertigo, M-Dot and Pulse share the same construction and acoustic rating, so the choice between them is aesthetic.

Is there a warranty?

Three years. The panel is ASTM E84 compliant for fire safety.
