Colour Mute Mirage
Echsorbix ® Colour Mute Mirage

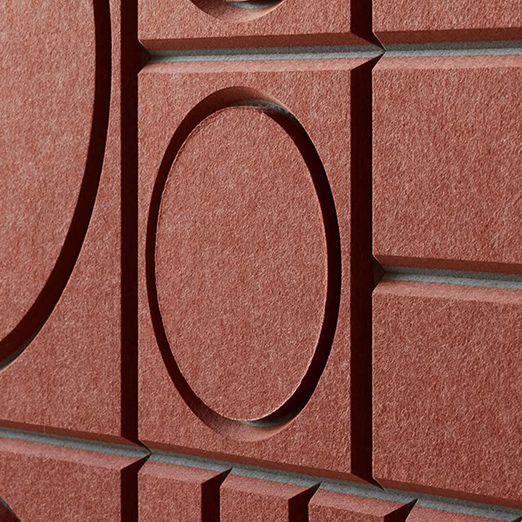

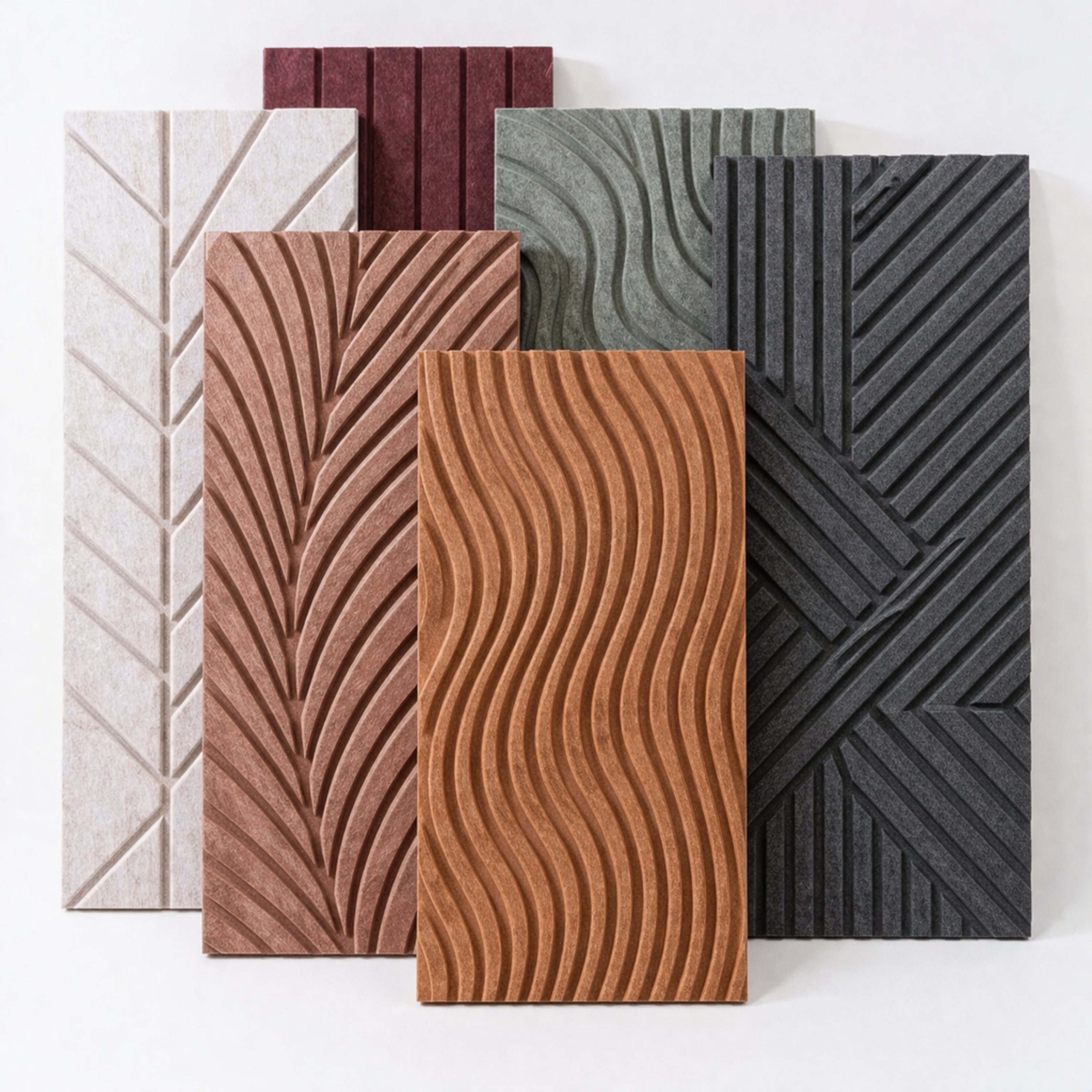

Echsorbix® CNC-Cut PET Acoustic Panels are precision-engineered sound-absorbing panels designed for both acoustic functionality and unparalleled visual appeal. With intricate U-Groove and V-Groove patterns, these panels introduce depth, texture, and elegance to any interior space. Additionally, custom shape cuts offer limitless design possibilities, enabling unique installations tailored to specific aesthetic visions.
- NRC, 9 mm
- 0.30
- Standard thickness
- 9 mm, 12 mm, 18 mm, 24 mm (±5%)
- Panel size
- 1220 x 2440 mm (8 x 4 ft, ±5%); maximum 3000 x 2000 mm
- Density grades
- EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM
- Areal weight
- 1200 to 3600 GSM (custom)
- Material
- 100% PET polyester fibre, non-woven
Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.
01 / The product
Echsorbix ® Colour Mute Mirage
Manufactured at our Palwal Plant by MMTPL since 2023, these panels are available in 40+ shades and support CNC customization for creative and architectural designs.
-
Why Choose Echsorbix® CNC-Cut PET Acoustic Panels?
Echsorbix® CNC-Cut PET Acoustic Panels represent the perfect blend of aesthetic sophistication and acoustic performance. With the ability to create custom grooves and intricate designs, these panels cater to both functional and artistic requirements. Echsorbix® – Elevating Acoustics, Defining Design.
-
Key Benefits
- Advanced Acoustic Performance: Reduces reverberation and echo effectively.
- Premium Aesthetic Appeal: U-Groove and V-Groove patterns add depth and elegance.
- Custom Shape Cuts: Tailored designs with precision CNC technology.
- Eco-Friendly: Made from recyclable PET polyester fibers.
- Fire Safety Compliant: Certified with ASTM E-84 Fire Rating.
- Customizable Colors: Available in 40+ shades.
- Easy Installation: Suitable for walls and ceilings.
- Low Maintenance: Moisture and stain-resistant surface.
-
Applications
- Luxury Commercial Interiors
- Modern Residential Spaces
- Auditoriums and Conference Rooms
- Hotels, Restaurants, and Lounges
- Educational Institutions
- Home Theaters and Recording Studios
02 / Specifications
Technical specifications
| Material | 100% PET polyester fibre, non-woven |
|---|---|
| Manufactured by | MMTPL (Mahabir Multi Tech Pvt. Ltd.), Palwal Plant, Haryana, India |
| Standard thickness | 9 mm, 12 mm, 18 mm, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | 1220 x 2440 mm (8 x 4 ft, ±5%); maximum 3000 x 2000 mm |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM |
| NRC, 9 mm | 0.30 |
| NRC, 12 mm | 0.40 |
| NRC, 18 mm | 0.50 |
| NRC, 24 mm | 0.60 |
| NRC, 9 mm over 20 mm BassBloc | 0.90 |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Recycled content | Minimum 60% |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recyclable | 100% |
| Colours | 40+ standard, custom development available |
| Warranty | 5 year colour fastness |
| Lead time | 3 to 7 days |
| Country of origin | India |
| Surface finish | CNC-cut grooves, custom patterns |
| Surface | Wall and ceiling |
- Material
100% PET Polyester Fiber
- Manufactured by
MMTPL, Palwal Plant (Since 2023)
- Size
6x3 feet / 1.8x0.9m
- Thickness
9mm, 12mm, 18mm, 24mm (customisable 4mm to 24mm)
- Density
1200 to 3600 GSM

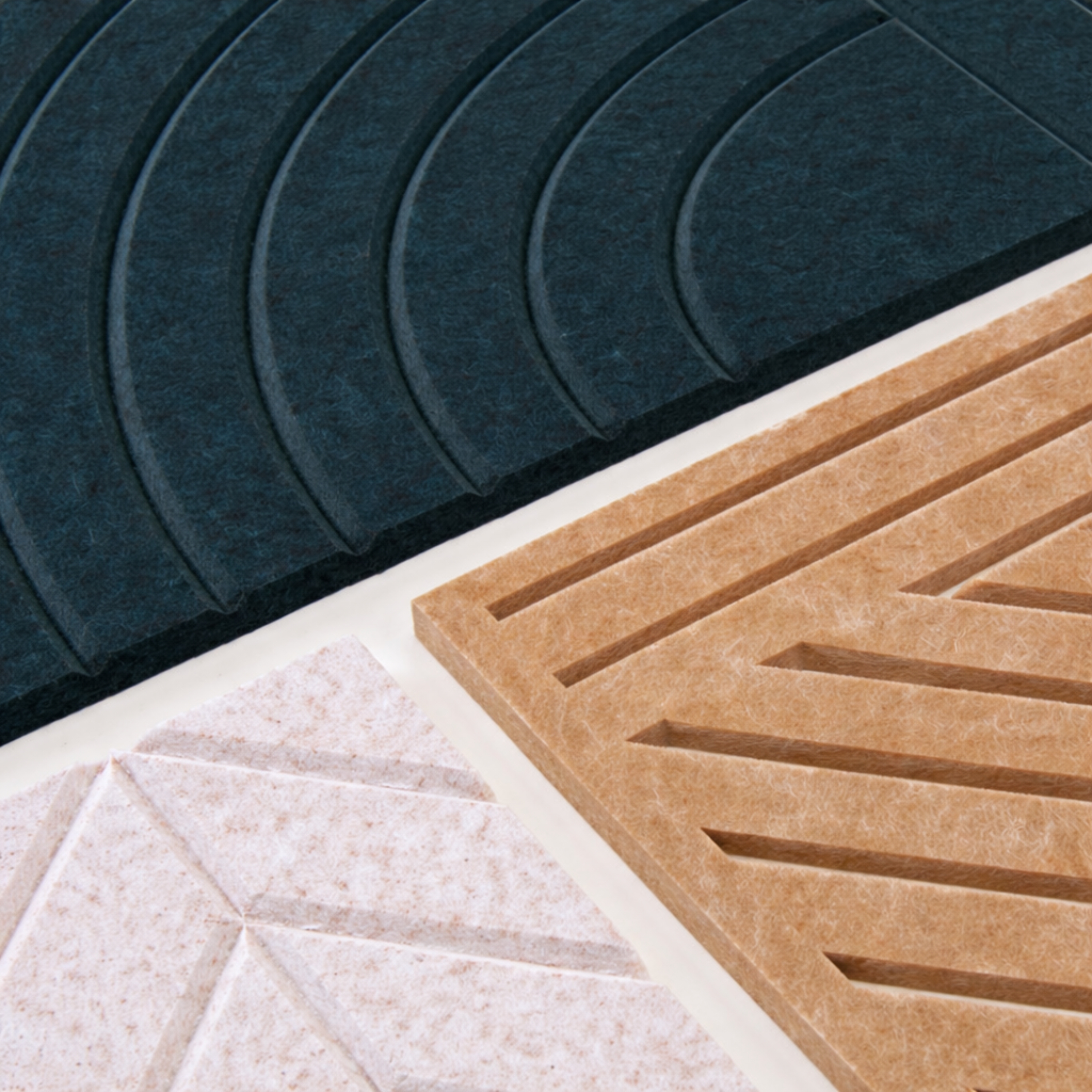

- Patterns Available
U-Groove, V-Groove, Custom CNC Cuts
- Colors
Available in 40+ shades, custom development available
- Installation
Wall and Ceiling Mounting Options
03 / In projects

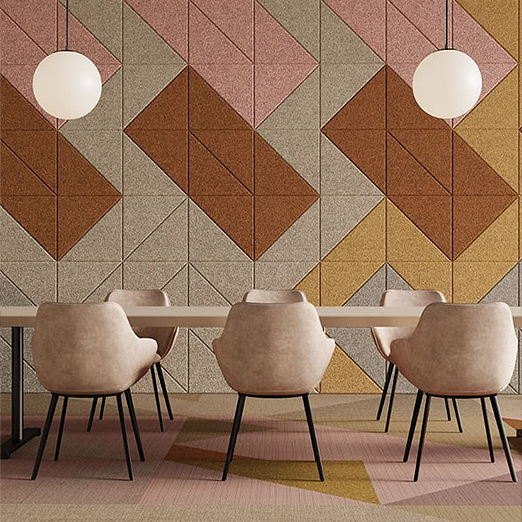

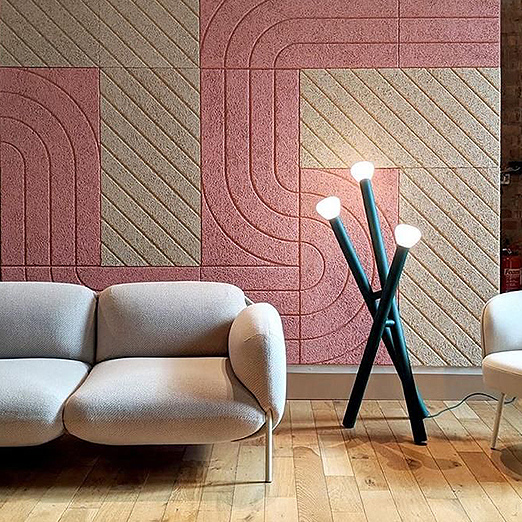

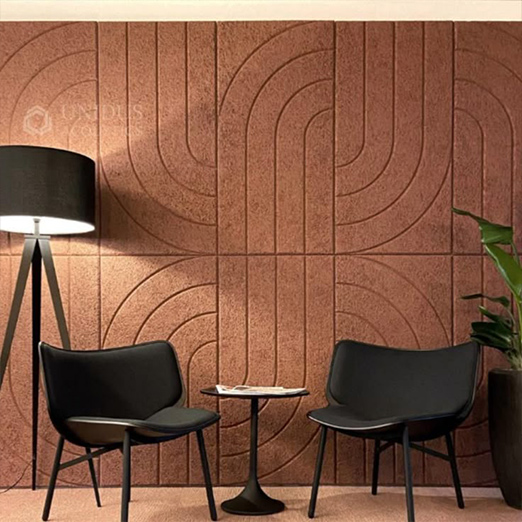

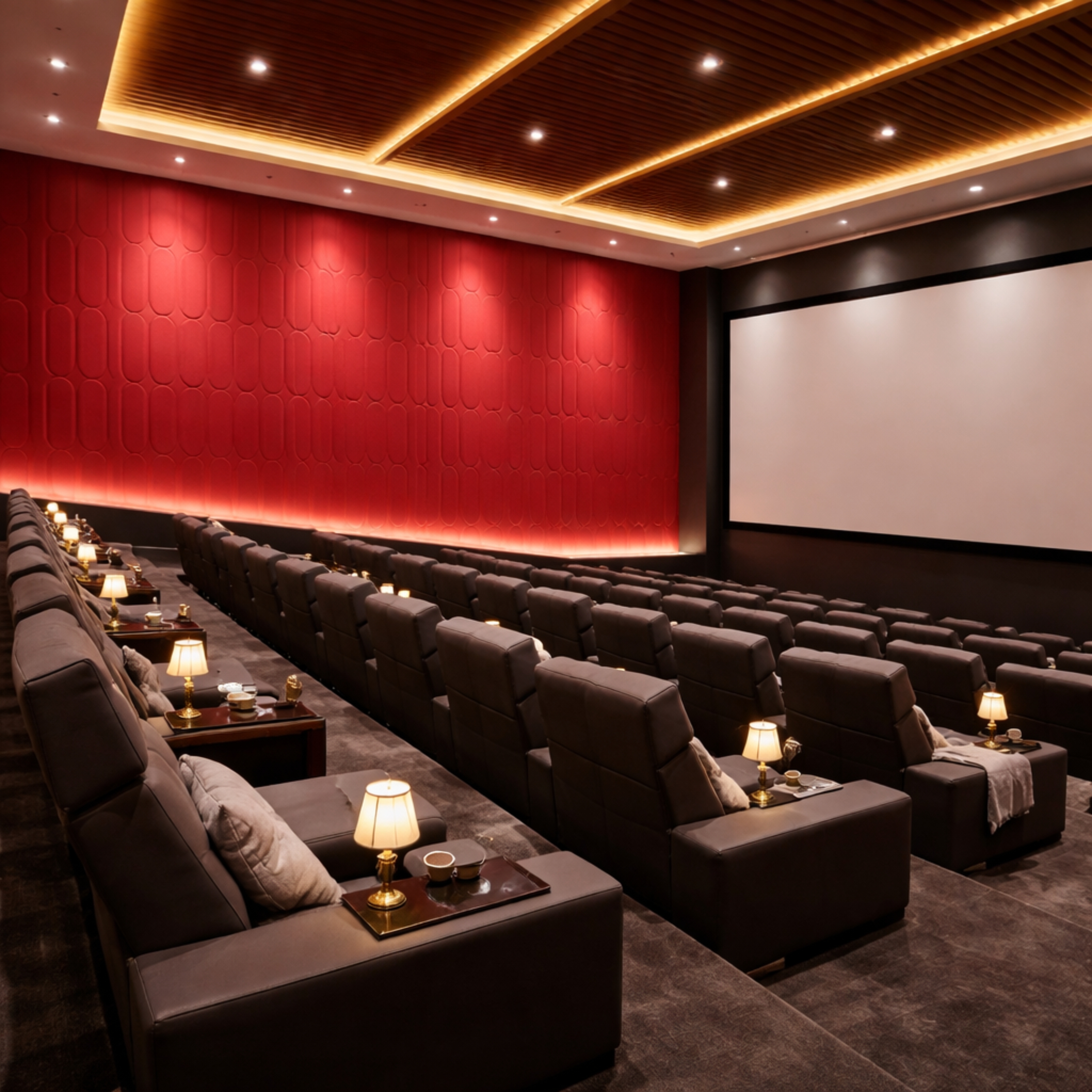

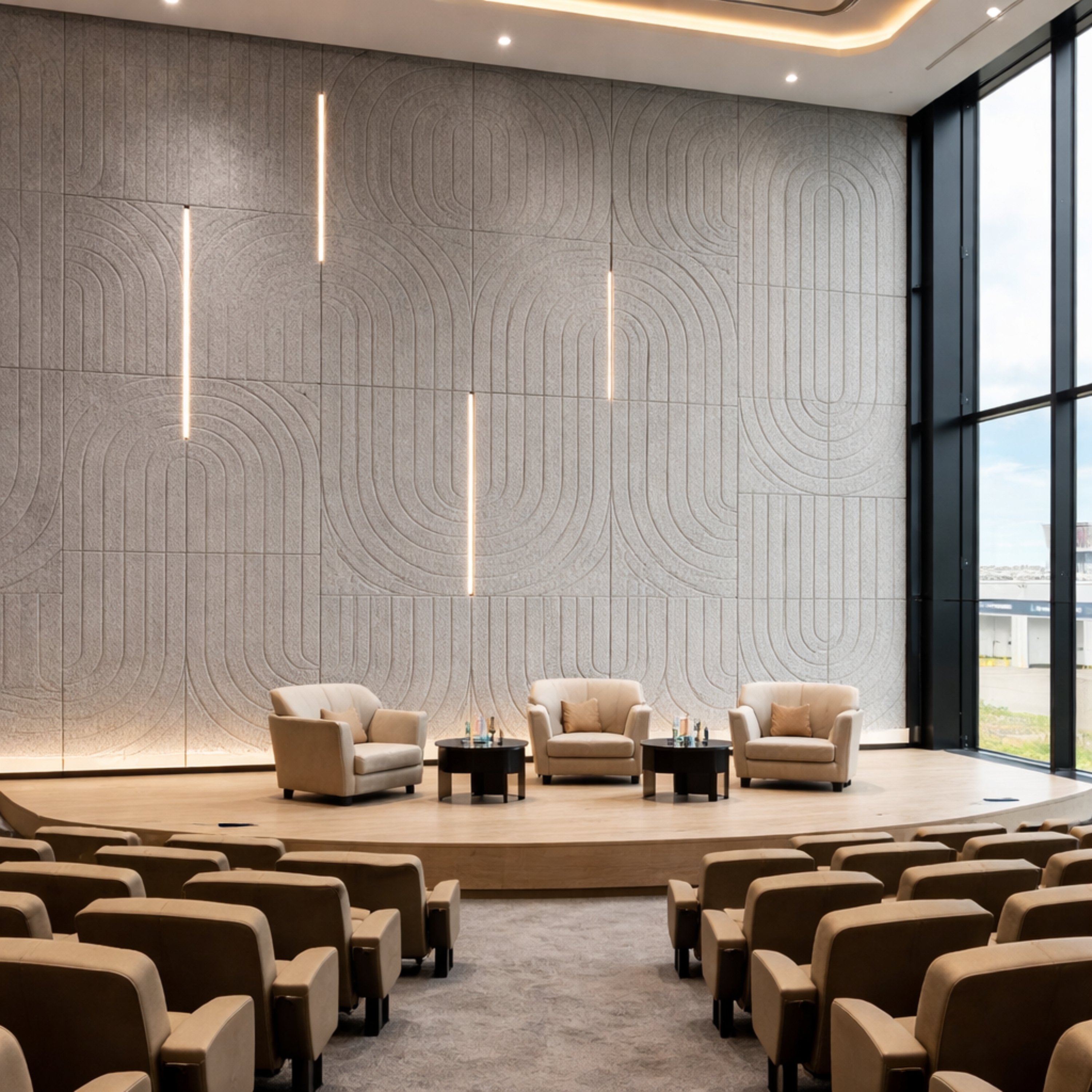

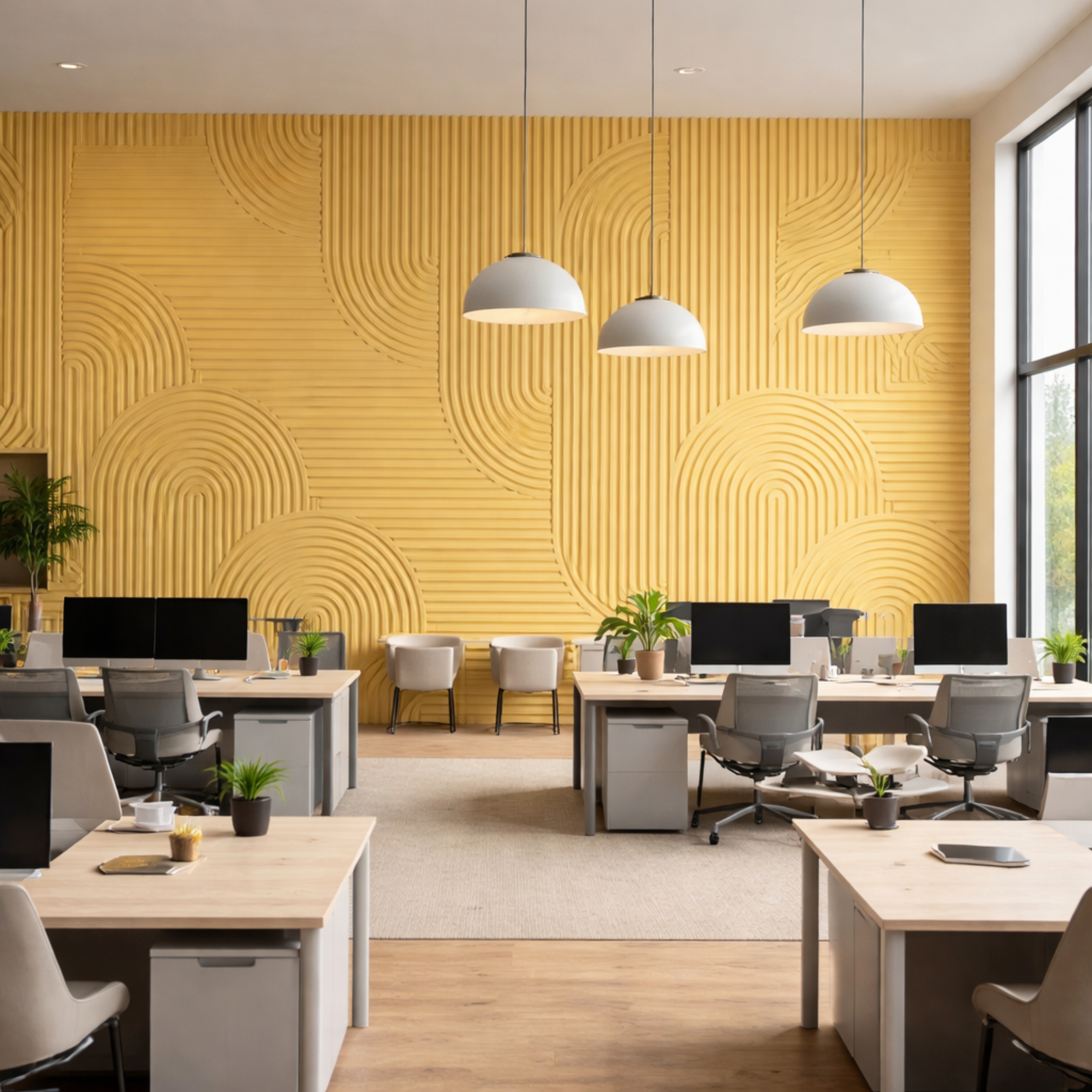

The product in real interiors
