Products > Acoustic & Echo Treatment > Acoustic Foams & Bass Traps > Egg Tray
Egg Tray
Egg Tray Acoustic Foam
The Egg Tray Acoustic Foam, also known as Profile Cut Foam, by MMT Acoustix features a distinctive egg-crate pattern engineered for superior sound absorption and noise reflection control. This foam combines high acoustic performance with aesthetic appeal, making it suitable for both professional and personal spaces. Its precision-cut profile enhances sound diffusion, ensuring exceptional acoustic clarity across a wide range of applications.
- NRC
- 0.90 at 50 mm
- Thickness
- 25 mm, 50 mm, 100 mm (customisable to 800 mm)
- Panel size

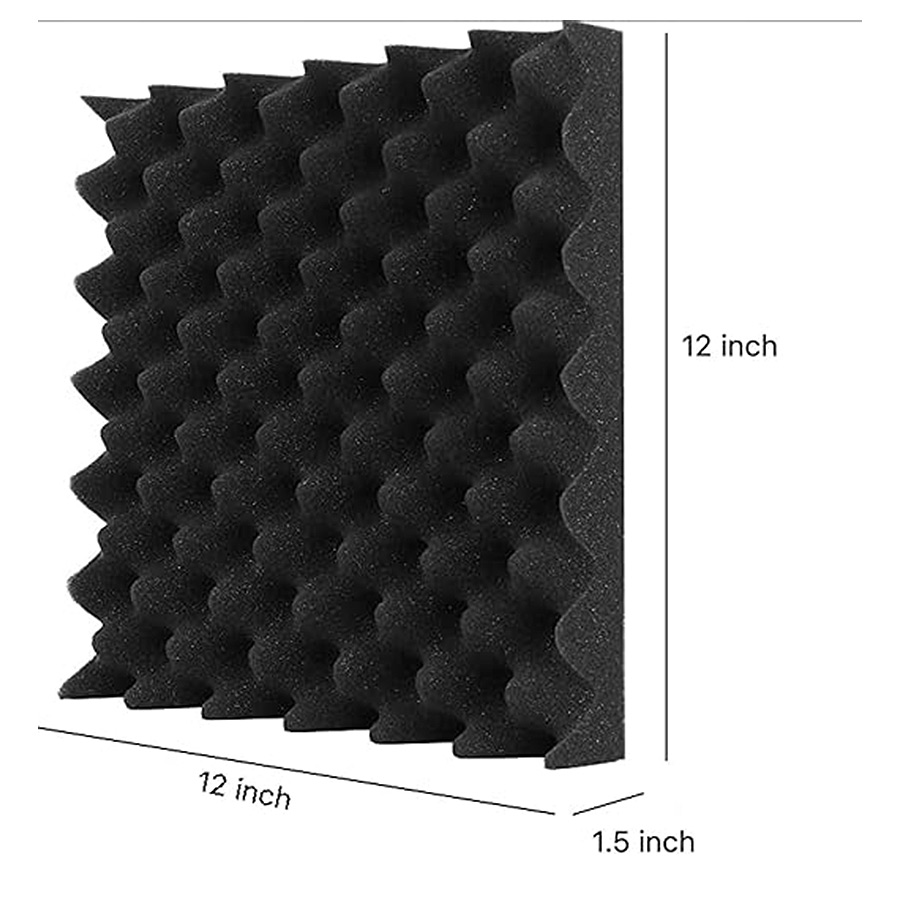

- 1800 x 900 mm (6 x 3 ft) and 305 x 305 mm (12 x 12 in)
- Size tolerance
- ±5%
- Density
- 32 to 50 kg/m³
- Material
- High-density open-cell polyurethane acoustic foam
Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.
01 / The product
Egg Tray Acoustic Foam
-
Standards
- Fire Retardant: Certified Class HS1, as per UL94 Standards
- Eco-Friendly: Made from non-toxic, sustainable materials
-
Key Features
- Reduces noise reflections in home studios and recording spaces.
- Enhances audio clarity in home theatres and podcast setups.
- Controls reverb in conference rooms and office spaces.
- Improves sound distribution in jamming rooms and practice studios.
- Ideal for machinery canopies to reduce operational noise levels.
- Effective when installed above acoustic ceilings to control overhead sound reflections.
02 / Specifications
Technical specifications
| Material | High-density open-cell polyurethane acoustic foam |
|---|---|
| Manufactured by | MMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India |
| Panel size | 1800 x 900 mm (6 x 3 ft) and 305 x 305 mm (12 x 12 in) |
| Thickness | 25 mm, 50 mm, 100 mm (customisable to 800 mm) |
| Density | 32 to 50 kg/m³ |
| NRC | 0.90 at 50 mm |
| Acoustic test standard | ASTM C423 |
| Fire rating | UL 94 Class HS1 fire retardant available on request; standard grade supplied non-FR |
| Colours | Charcoal Black, European Blue, MMT Orange, Stone White, Wine, Fire Red |
| Size tolerance | ±5% |
| Installation | Direct adhesive (Turbo® SR Adhesive or spray adhesive) onto clean wall, wood, plaster, metal or glass |
| Country of origin | India |
- Material
High-density polyurethane foam
- Size
6x3 feet / 1.8x0.9m and 12" x 12" x 2" (customizable options available)
- Density
32kg/m³ to 50kg/m³
- Thickness
25mm, 50mm, 100mm (customizable up to 800mm)
- Color Options
a) Charcoal Black, b) European Blue, c) MMT Orange, d) Stone White, e) Wine, f) Fire Red
- Noise Reduction Coefficient (NRC)
0.90 as per ASTM C423 Standards
- Durability
Resistant to wear, deformation, and long-term use
03 / In projects
The product in real interiors
