Bass Trap Mega

Bass Trap Mega – Maximum Low-Frequency Control for Superior Acoustics

The Bass Trap Mega by MMT Acoustix is a heavy-duty acoustic solution specifically designed to tackle excessive low-frequency buildup in critical acoustic spaces. With its larger size and advanced absorption capabilities, the Bass Trap Mega ensures precise bass control, eliminating muddiness and enhancing overall sound clarity.

NRC
1.0
Thickness
178 mm (7 in) corner profile
Panel size
584 x 279 mm (23 x 11 in), 178 mm (7 in) depth
Size tolerance
±5%
Density
50 kg/m³
Material
High-density open-cell polyurethane acoustic foam
Request a quote Order a sample

Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.

01 / The product

Bass Trap Mega – Maximum Low-Frequency Control for Superior Acoustics

  • Standards

    • Fire Retardant: Certified Class HS1, as per UL94 Standards
    • Eco-Friendly: Made from non-toxic, sustainable materials

  • Key Features

  • 1. Maximum Low-Frequency Absorption

    The Bass Trap Mega is engineered to capture and absorb low-end frequencies effectively, preventing bass buildup in corners and critical reflection points. Its increased surface area and optimized density ensure deeper frequency absorption.

  • 2. Superior Noise Reduction

    With a Noise Reduction Coefficient (NRC) of 0.90, certified as per ASTM C423 Standards, the Bass Trap Mega absorbs 90% of unwanted low-frequency reflections, delivering clear, distortion-free sound.

  • 3. Enhanced Design for Acoustic Precision

    Its expanded profile and thicker build maximize its ability to trap and disperse bass energy, ensuring a well-balanced acoustic environment in both small and large spaces.

  • 4. Versatile Application

    The Bass Trap Mega is ideal for a variety of applications, including:

    • Recording Studios
    • Broadcast Studios
    • Home Theatres
    • Podcast Rooms
    • Music Jamming Spaces
    • Mixing and Mastering Rooms

    Whether it’s a professional studio or a personal acoustic project, the Bass Trap Mega delivers results that meet industry standards.

  • 5. Aesthetic Integration

    Despite its larger build, the Bass Trap Mega maintains a sleek and modern aesthetic, seamlessly blending into any studio or acoustic setup.

02 / Specifications

Technical specifications

MaterialHigh-density open-cell polyurethane acoustic foam
Manufactured byMMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India
Panel size584 x 279 mm (23 x 11 in), 178 mm (7 in) depth
Thickness178 mm (7 in) corner profile
Density50 kg/m³
NRC1.0
Acoustic test standardASTM C-423, EN ISO 354
Fire ratingUL 94 Class HS1 fire retardant available on request; standard grade supplied non-FR
ColoursCharcoal Black, European Blue, MMT Orange, Stone White, Wine, Fire Red
Size tolerance±5%
InstallationCorner mounted, direct adhesive
Country of originIndia
Shelf lifeOver 5 years with proper care
  • Material

    High-density polyurethane foam

  • Size

    23x11x7 inch (584 x 279 mm, 178 mm depth). Standard corner-specific dimensions for maximum surface coverage

  • Density

    50 kg/m³

  • Thickness

    Available in customizable thickness profiles for deeper absorption

  • Color Options

    a) Charcoal Black, b) European Blue, c) MMT Orange, d) Stone White, e) Wine, f) Fire Red

  • Noise Reduction Coefficient (NRC)

    1.0 as per ASTM C-423 and EN ISO 354

  • Durability

    Long-lasting, wear-resistant, and capable of maintaining performance over time

03 / In projects

The product in real interiors

...
...
...

GET EXPERT ADVICE

Need Help Choosing Bass Trap Mega?

Tell us the space, the area you are covering and the finish you want. Our team will confirm specification, pricing and lead time for your project.

Email Us

Frequently Asked Questions

Who manufactures the Mega Corner Bass Trap in India?

MMTPL (Mahabir Multi Tech Private Limited) manufactures it at its Palwal plant in Haryana, India, and supplies studios, offices, cinemas and industrial sites in India and 25+ export markets.

What is the NRC of the Mega Corner Bass Trap?

the Mega Corner Bass Trap has an NRC of 1.0, measured to ASTM C423. NRC is a single-figure average, so match the thickness to the frequency you need to control: thicker foam works lower down the spectrum.

What density is the foam?

The foam is high-density open-cell polyurethane at 32 to 50 kg/m3, which is what gives it absorption at mid and high frequencies rather than just at the top end.

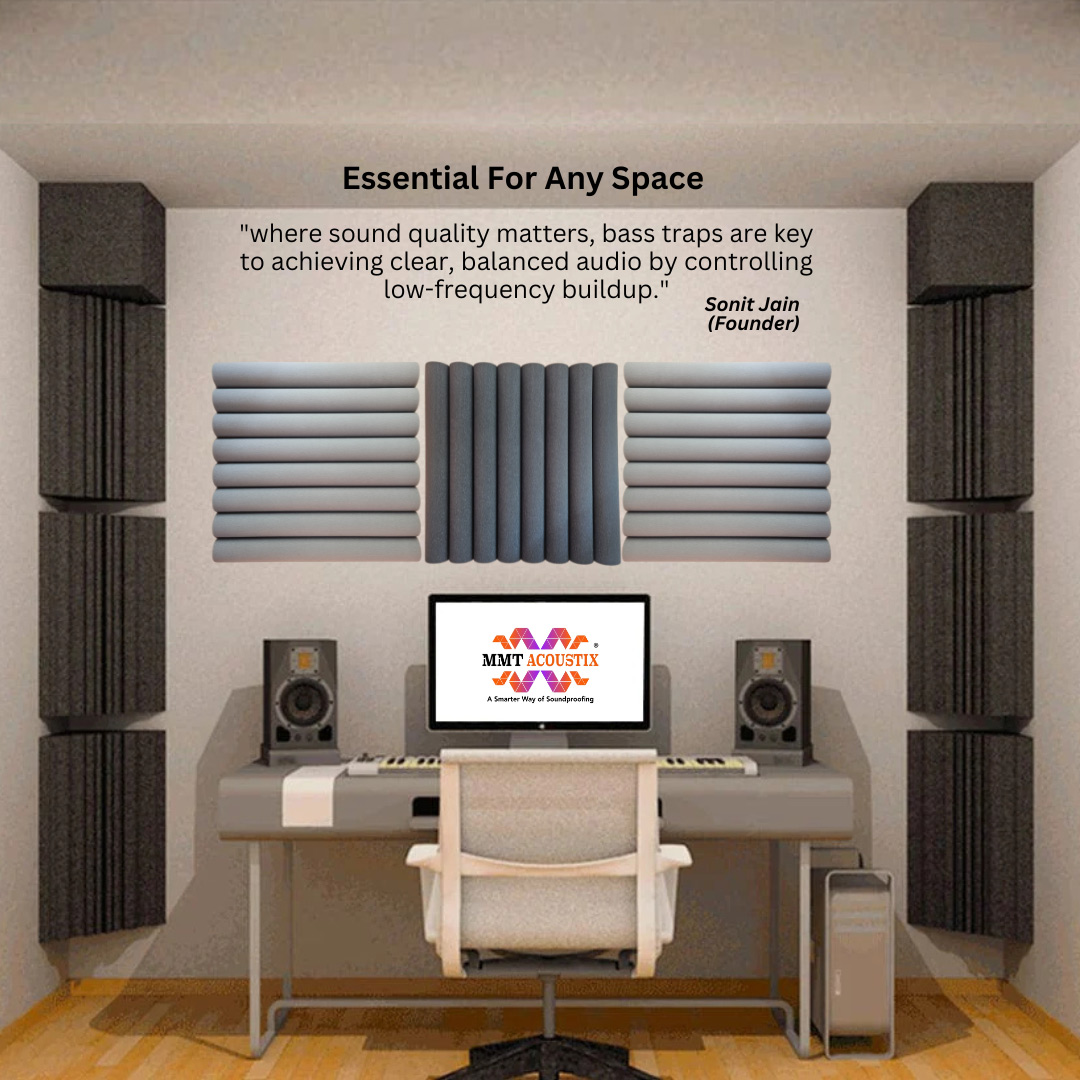

Where does a corner bass trap go?

In the vertical wall-to-wall corners first, then wall-to-ceiling. Low-frequency pressure is highest at room boundaries, which is why corner placement does more than the same volume of foam spread flat on a wall.

Is the foam fire rated?

Standard grade is supplied non-FR. A UL 94 Class HS1 fire retardant grade is available on request, which is what most institutional, government and tender projects specify.

How is it installed?

It bonds directly to a clean wall with Turbo SR Adhesive or spray adhesive, on paint, wood, plaster, metal or glass. No frame or sub-structure is needed.

What colours are available?

Six standard colours: Charcoal Black, European Blue, MMT Orange, Stone White, Wine and Fire Red. Custom colours can be developed for volume orders.
