Wooden Slats
Wooden Slats Acoustic Panels
Wooden Slats Acoustic Panels combine elegant aesthetics with high-performance sound absorption, offering an ideal solution for spaces that demand both acoustic efficiency and visual appeal. These panels feature a series of precisely machined slats and grooves, creating a refined look while efficiently managing reverberation and noise levels.
- Thickness
- 14 mm, 16 mm, 18 mm
- Standard sizes
- 2440 x 192 mm and 2440 x 128 mm
- Fire rating
- EN 13501-1, Class B s1 d0
- Installation system
- Tongue-and-groove, or aluminium channel and clip system
Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.
01 / The product

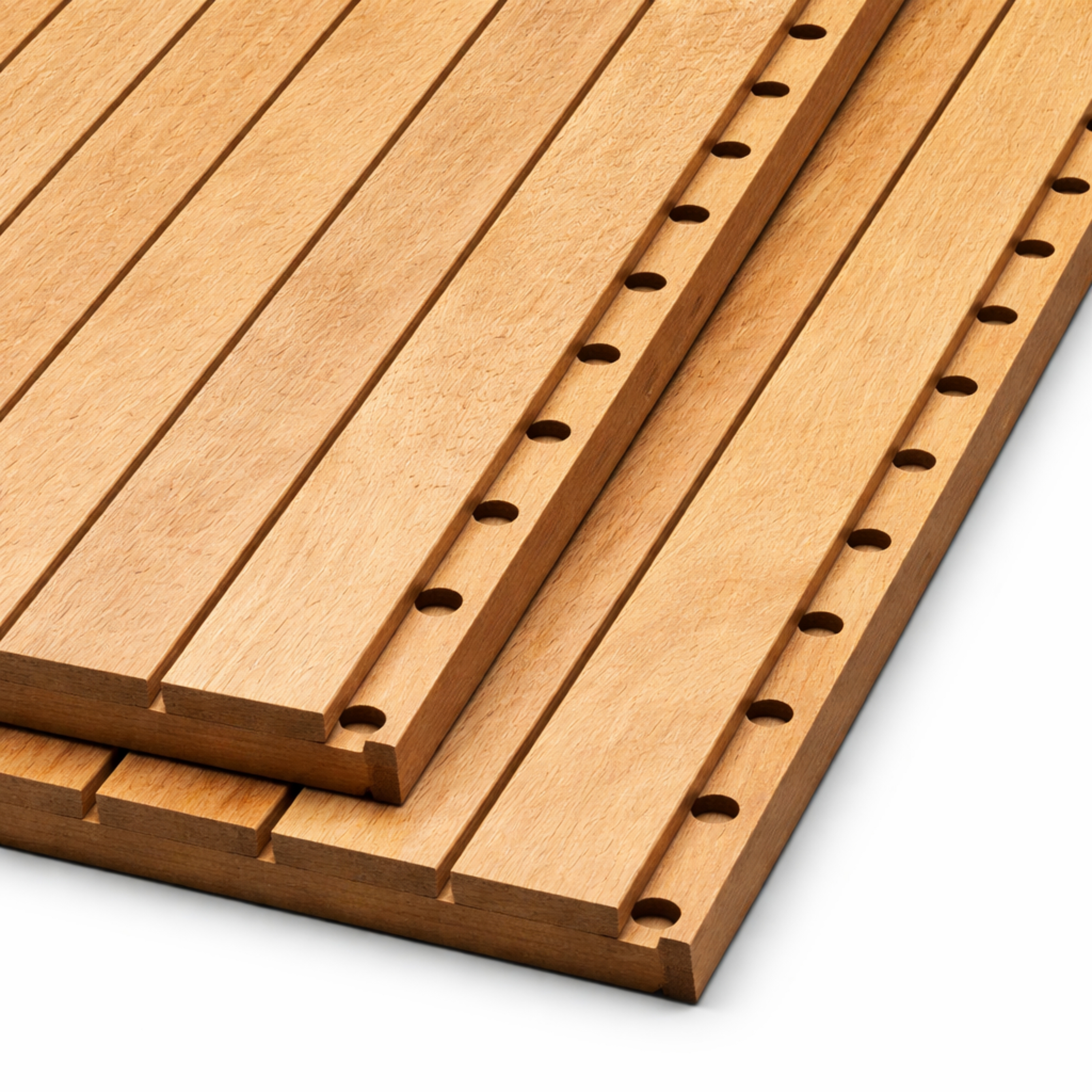

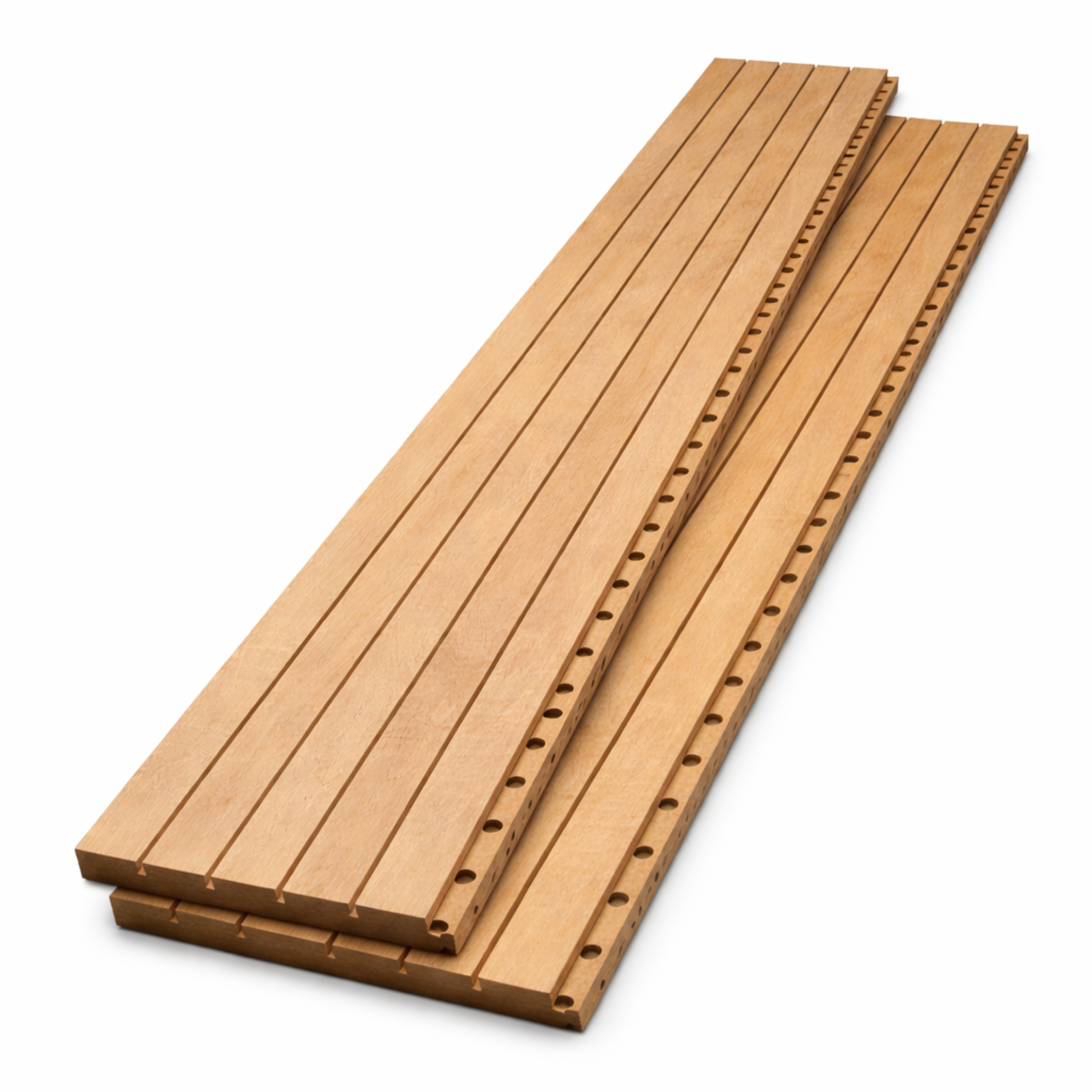

Wooden Slats Acoustic Panels
Crafted from premium materials like MDF, HDF, and HDHMR, these panels are available in various groove patterns such as 13-3, 14-2, and 28-4, ensuring versatility in both design and functionality. The panels feature a tongue-and-groove joint system for seamless installation, resulting in a sophisticated and uniform finish.
Why Choose Wooden Slats Acoustic Panels?
Wooden Slats Acoustic Panels provide a perfect blend of sound absorption and design aesthetics. With precision grooves, premium material options, and seamless installation systems, they are ideal for projects that require high acoustic performance and timeless style.
-
Key Benefits
- Superior Acoustic Performance: Reduces reverberation and controls sound reflections.
- Precision Groove Patterns: Available in 13-3, 14-2, and 28-4 patterns.
- Premium Material Options: MDF, HDF, HDHMR with fire-resistant and eco-friendly variants.
- Aesthetic Appeal: Elegant wood finish enhances interior design.
- Customizable Sizes: Standard dimensions available, with custom sizing upon request.
- Eco-Friendly Certification: Certified under EN 13986: E1 for sustainability.
- Certified under EN 13986: E1 for sustainability.
- Fire Resistance: Compliant with EN 13501-1 (Class B s1, d0) fire safety standards.
- Easy Installation: Seamless installation with tongue-and-groove joint systems.
-
Applications
- Home Theaters: Achieve optimal sound clarity with stylish wooden finishes.
- Recording Studios: Minimize echoes and reflections for clear audio capture.
- Offices & Meeting Rooms: Improve speech clarity in collaborative spaces.
- Auditoriums & Theaters: Control sound dynamics in large spaces.
- Residential Spaces: Add acoustic comfort to living rooms and bedrooms.
- Restaurants & Cafés: Create pleasant acoustic dining environments.
02 / Specifications
Technical specifications
| Manufactured by | MMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India |
|---|---|
| Substrate options | MDF, FR MDF, HDF, HDHMR |
| Slat patterns | 13-3, 14-2, 28-4, 59-5 |
| Standard sizes | 2440 x 192 mm and 2440 x 128 mm |
| Thickness | 14 mm, 16 mm, 18 mm |
| Backing | Supplied with or without acoustic fleece backing |
| Coverage | 96 sq ft per unit |
| Fire rating | EN 13501-1, Class B s1 d0 |
| Formaldehyde class | EN 13986: E1 |
| Installation system | Tongue-and-groove, or aluminium channel and clip system |
| Size tolerance | ±5% |
| Country of origin | India |
- Material Options
MDF, FR MDF, HDF, HDHMR
- Patterns
13-3, 14-2, 28-4, 59-5
- Standard Sizes
2440 x 192mm, 2440 x 128mm
- Thickness
14mm, 16mm, 18mm
- Fire Rating
EN 13501-1 (Class B s1, d0)
- Eco-Certification
EN 13986: E1
- Installation System
Tongue-and-groove system with acoustic substrate backing
03 / In projects

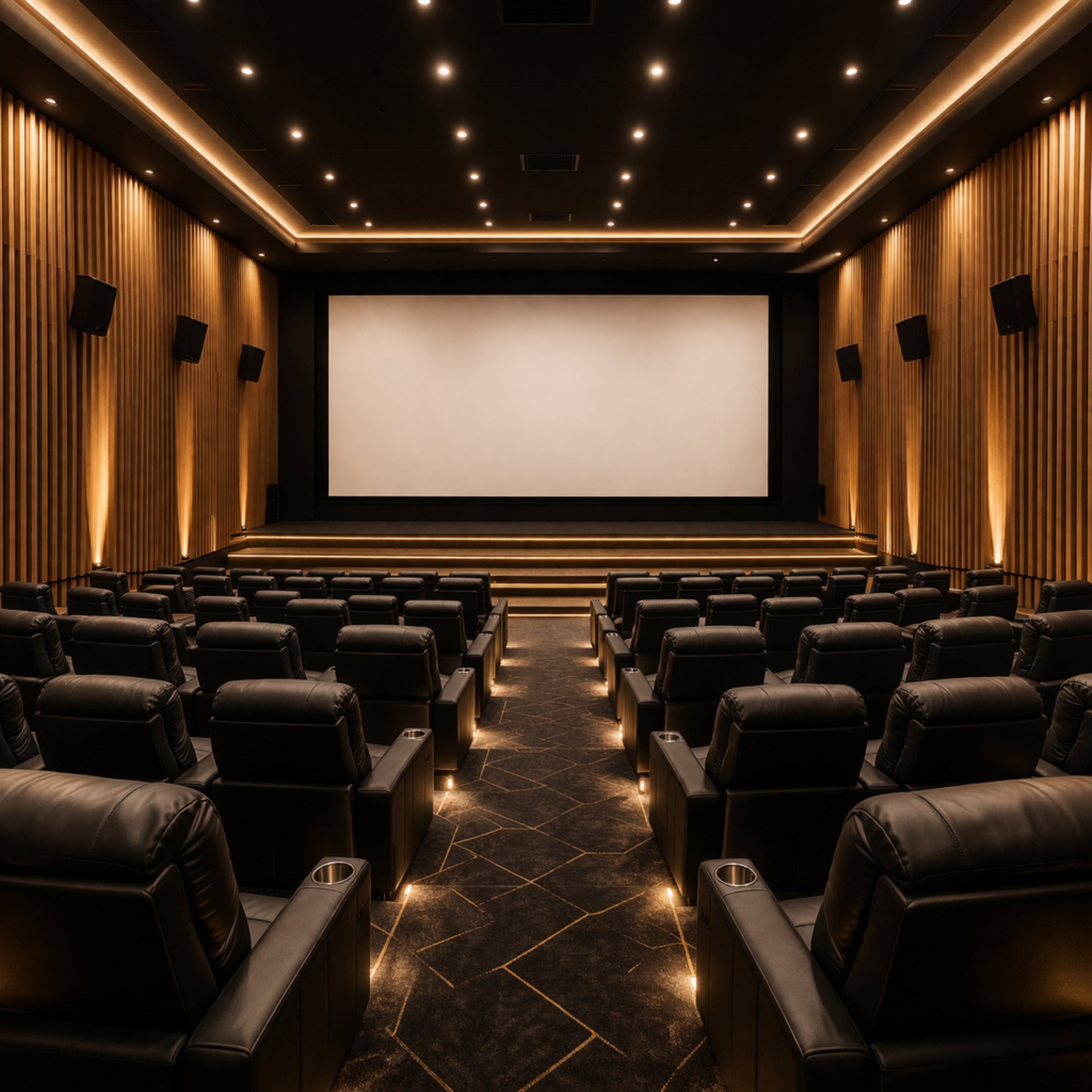

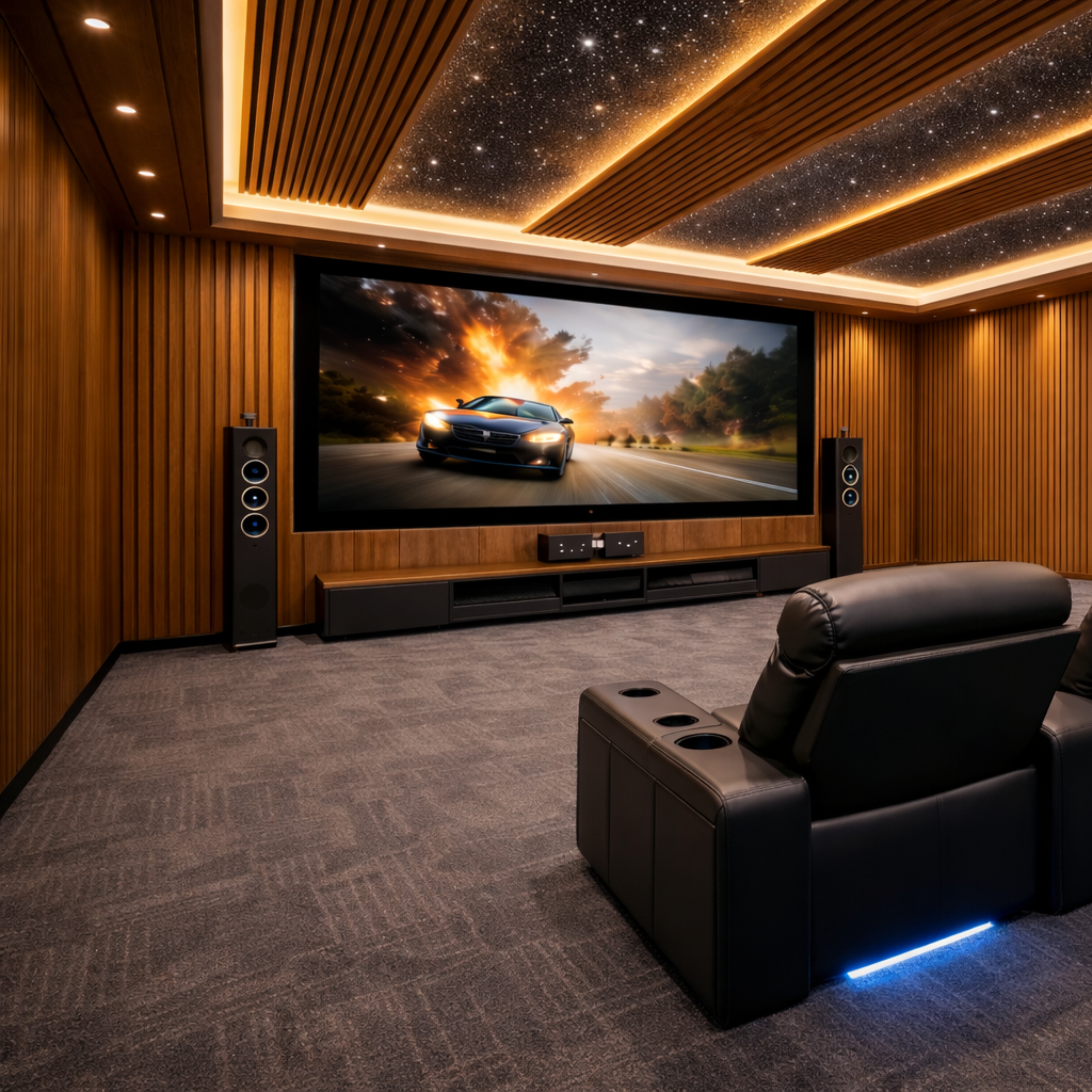

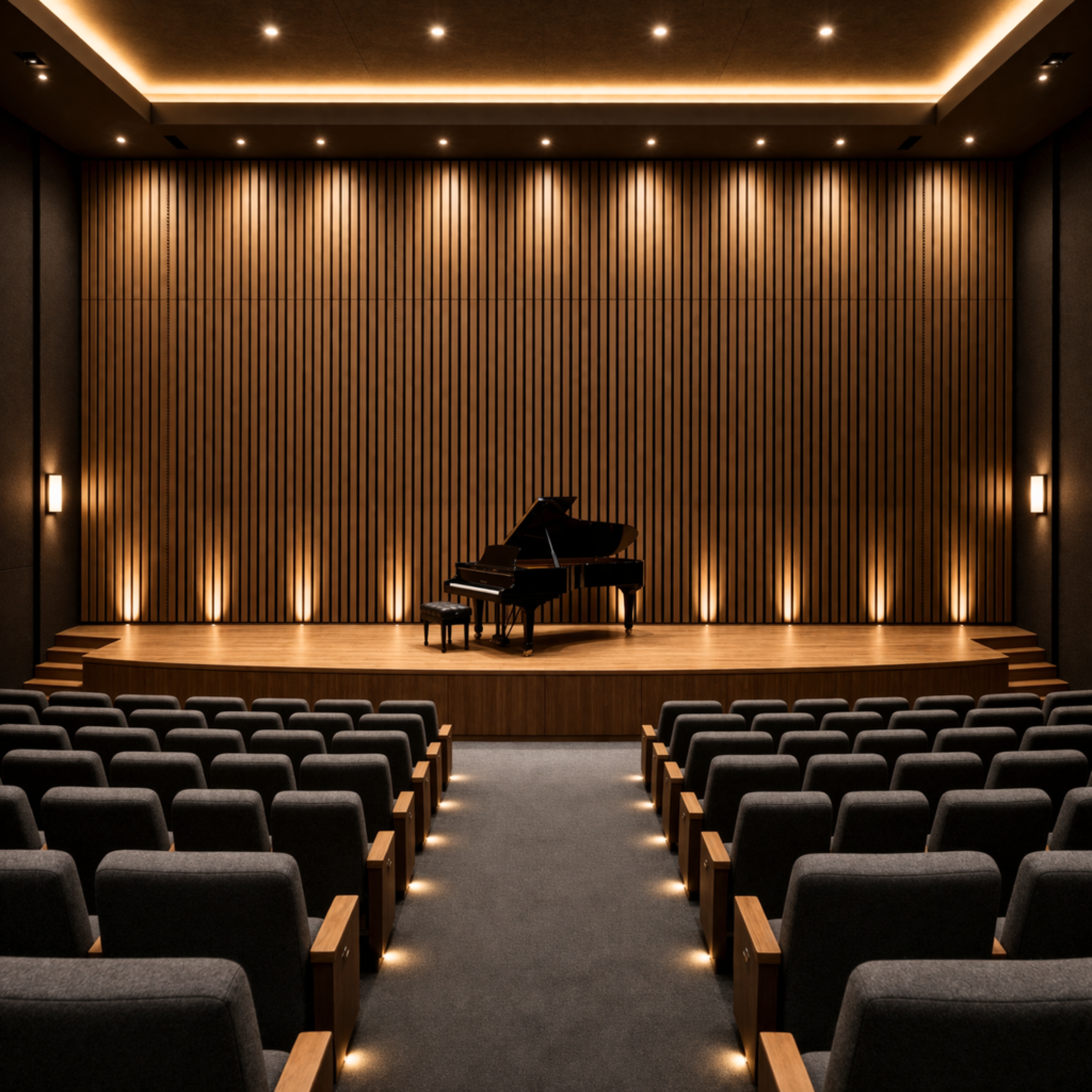

The product in real interiors
