Products > Acoustic & Echo Treatment > Felt Panels > Screen
Screen
Echsorbix ® Screen
Echsorbix® Acoustic Screens are modern, freestanding noise control solutions designed to optimize both acoustic comfort and spatial flexibility. Crafted from 100% PET polyester fiber, these screens provide exceptional sound absorption while adding a sleek, contemporary touch to any space. Ideal for open-plan offices, collaborative workspaces, and commercial interiors, Echsorbix® Acoustic Screens combine functionality with visual appeal.
- NRC, 9 mm
- 0.30
- Standard thickness
- 9 mm, 12 mm, 18 mm, 24 mm (±5%)
- Panel size
- 1800 x 900 mm (6 x 3 ft)
- Density grades
- EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM
- Areal weight
- 1200 to 3600 GSM (custom)
- Material
- 100% PET polyester fibre, non-woven
Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.
01 / The product
Echsorbix ® Screen
Manufactured by MMTPL at our advanced Palwal Plant since 2023, these screens are available in 40+ shades, ensuring seamless integration into diverse interior design themes.
-
Why Choose Echsorbix® Acoustic Screens?
Echsorbix® Acoustic Screens redefine modern acoustic solutions by combining cutting-edgenoise control technology with customizable designs. Manufactured with precision, these screens create functional, sound-optimized zones without compromising aesthetics. Echsorbix® – Shape Your Space with Sound.
-
Key Benefits
- Flexible Space Management: Easily repositioned for changing layouts.
- Acoustic Comfort: Reduces sound transmission and improves speech clarity.
- Aesthetic Appeal: Available in 40+ shades for design harmony.
- Customizable Designs: CNC cutting for intricate patterns and shapes.
- Eco-Friendly: Made from 100% recyclable PET fibers with low VOC emissions.
- Quick Installation: Lightweight and easy to set up.
- Fire Safety Compliant: Durable and Long-Lasting: Resistant to wear, moisture, and fading.
-
Applications
- Open-Plan Offices
- Co-Working Spaces
- Meeting and Conference Rooms
- Libraries and Study Zones
- Healthcare Facilities
- Reception and Waiting Areas
02 / Specifications
Technical specifications
| Material | 100% PET polyester fibre, non-woven |
|---|---|
| Manufactured by | MMTPL (Mahabir Multi Tech Pvt. Ltd.), Palwal Plant, Haryana, India |
| Standard thickness | 9 mm, 12 mm, 18 mm, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | 1800 x 900 mm (6 x 3 ft) |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM |
| NRC, 9 mm | 0.30 |
| NRC, 12 mm | 0.40 |
| NRC, 18 mm | 0.50 |
| NRC, 24 mm | 0.60 |
| NRC, 9 mm over 20 mm BassBloc | 0.90 |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Recycled content | Minimum 60% |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recyclable | 100% |
| Colours | 40+ standard, custom development available |
| Warranty | 5 year colour fastness |
| Lead time | 3 to 7 days |
| Country of origin | India |
| Design options | Smooth, textured, CNC custom cuts |
| Installation | Freestanding, optional mounting accessories |
- Material
100% PET Polyester Fiber
- Manufactured by
MMTPL, Palwal Plant (Since 2023)
- Size
6x3 feet / 1.8x0.9m
- Thickness
9mm, 12mm, 18mm, 24mm (customisable 4mm to 24mm)
- Density
1200 to 3600 GSM
- Design Options
Smooth, Textured, CNC Custom Cuts
- Colors
Available in 40+ shades, custom development available
- Installation
Freestanding with optional mounting accessories
03 / In projects

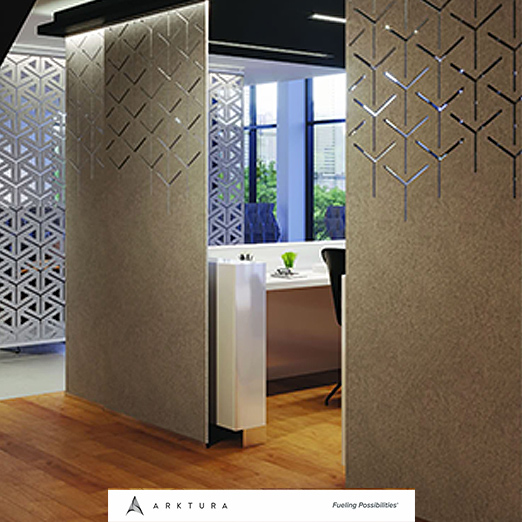

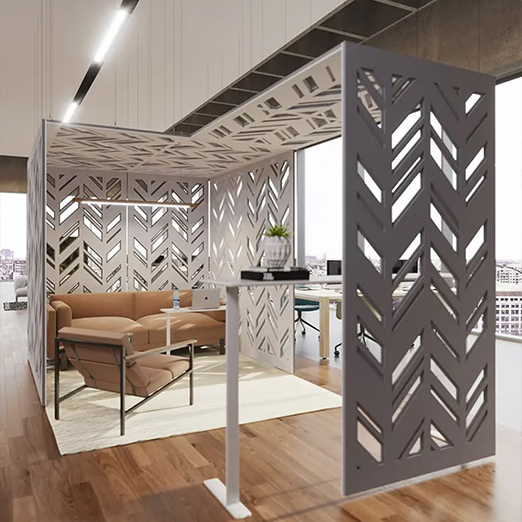

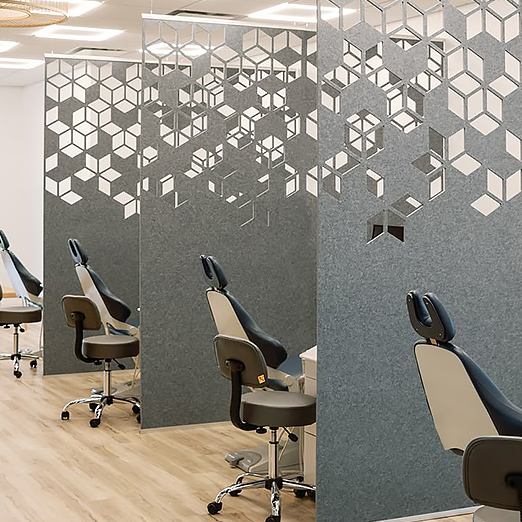

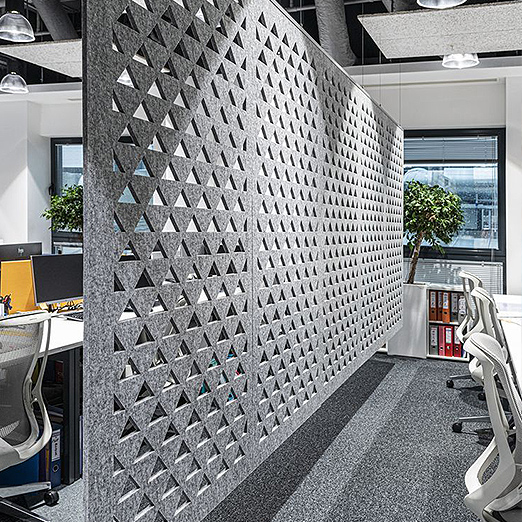

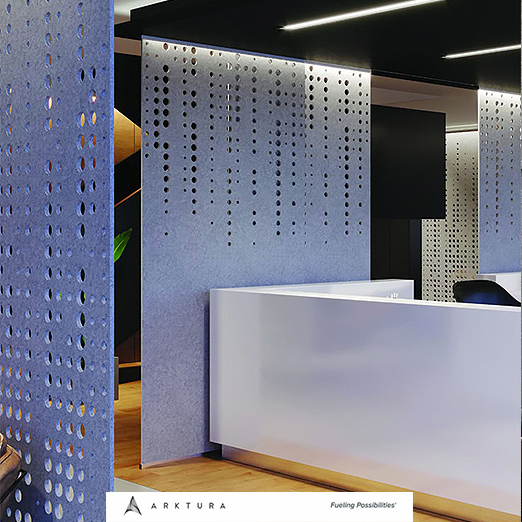

The product in real interiors
