Baffles
Echsorbix ® Felt Acoustic Baffles
Echsorbix® Felt Acoustic Baffles elegantly combine luxury with subtlety, offering both aesthetic enhancement and effective sound absorption. Crafted from premium felt, these baffles are tailored to the specific decor and acoustic needs of any space, able to be customized into various shapes and sizes. Suspended with brass attachments, they exemplify sophistication in design and functionality.
- NRC, 9 mm
- 0.30
- Standard thickness
- 9 mm, 12 mm, 18 mm, 24 mm (±5%)
- Panel size
- Custom, to project requirement
- Density grades
- EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM
- Areal weight
- 1200 to 3600 GSM (custom)
- Material
- 100% PET polyester fibre, non-woven
Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.
01 / The product

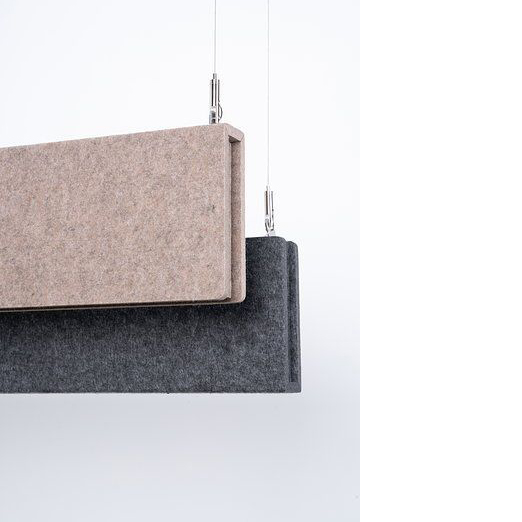

Echsorbix ® Felt Acoustic Baffles
-
Features
- Luxurious Design: The baffles add a refined elegance to interiors, showcasing the harmony of utility and luxury.
- Customization: Tailored to individual project requirements, these baffles can be cut into diverse shapes, allowing for unique configuration and integration into any design schema.
- Quality Craftsmanship: Hung with durable and stylish brass fittings, they offer a secure installation that complements their luxurious appearance.
- Effective Sound Management: Designed to significantly reduce noise and control echoes, these baffles improve the acoustic quality of the environment.
-
Applications

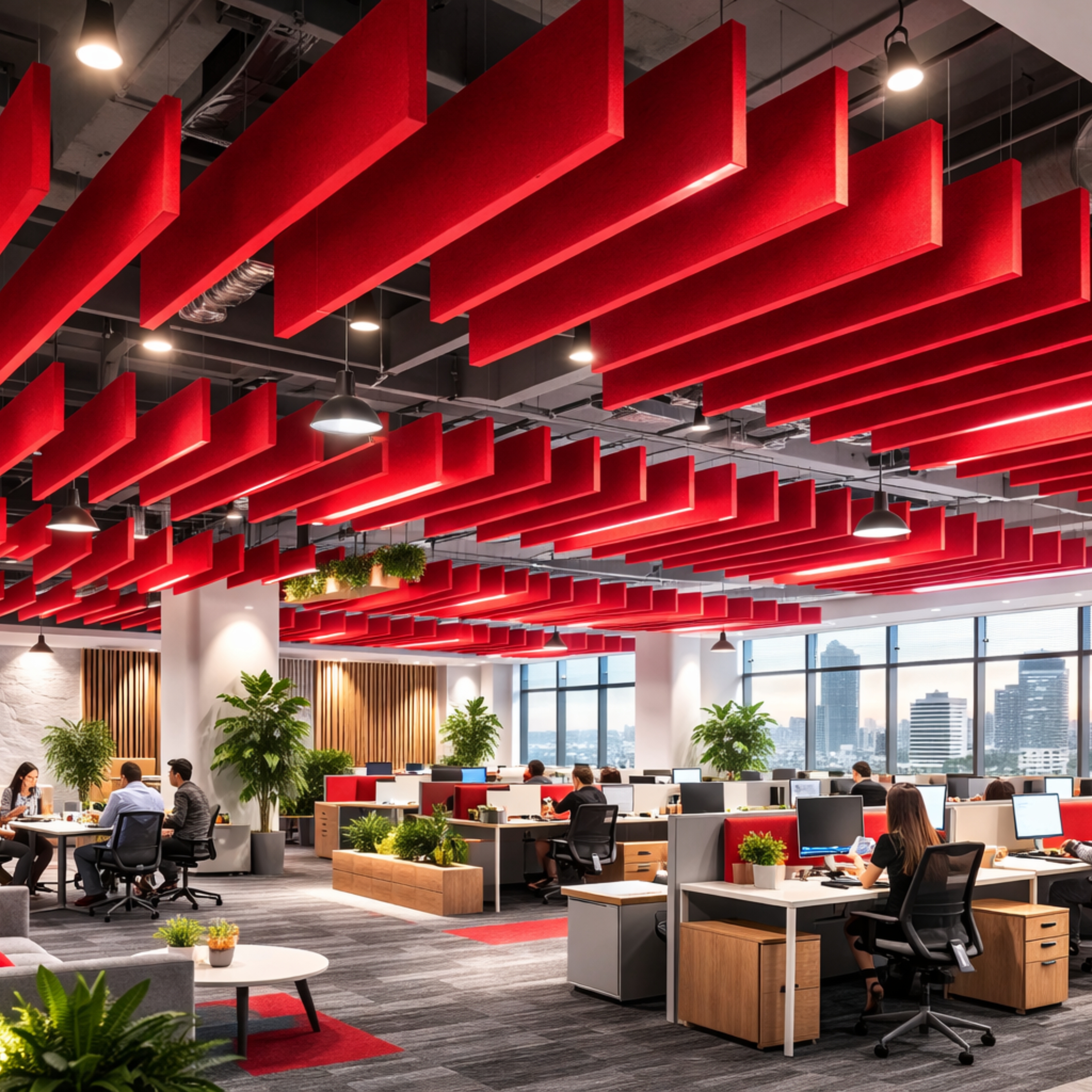

- Corporate Offices: Enhance the aesthetics and acoustic comfort of workspaces, making them ideal for open-plan offices and executive boardrooms.
- Hospitality Venues: Perfect for creating a welcoming and serene atmosphere in hotels and dining areas.

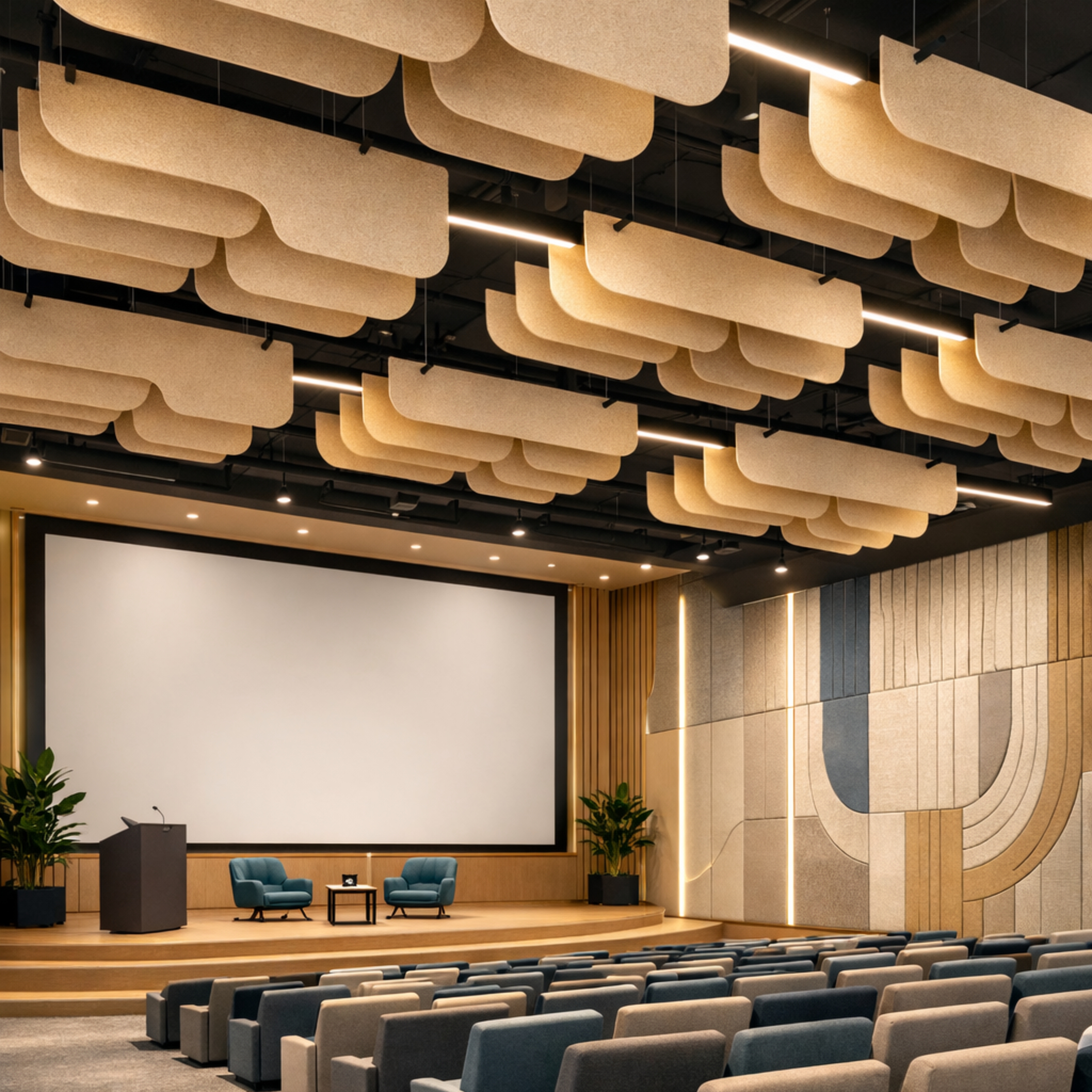

- Educational Facilities: Improve the sound quality in areas such as libraries and lecture halls, facilitating better learning environments.
- Residential Interiors: Optimize the tranquility and style of living areas in upscale homes.
02 / Specifications
Technical specifications
| Material | 100% PET polyester fibre, non-woven |
|---|---|
| Manufactured by | MMTPL (Mahabir Multi Tech Pvt. Ltd.), Palwal Plant, Haryana, India |
| Standard thickness | 9 mm, 12 mm, 18 mm, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | Custom, to project requirement |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM |
| NRC, 9 mm | 0.30 |
| NRC, 12 mm | 0.40 |
| NRC, 18 mm | 0.50 |
| NRC, 24 mm | 0.60 |
| NRC, 9 mm over 20 mm BassBloc | 0.90 |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Recycled content | Minimum 60% |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recyclable | 100% |
| Colours | 40+ standard, custom development available |
| Warranty | 5 year colour fastness |
| Lead time | 3 to 7 days |
| Country of origin | India |
| Mounting type | Vertical suspension from ceiling slab |
| Customisation | CNC-cut shapes, patterns and sizes |
- Material
High-quality felt known for its acoustic absorption properties.
- Thickness Options
Available in 9mm and 18mm, catering to different sound absorption levels.
- Installation

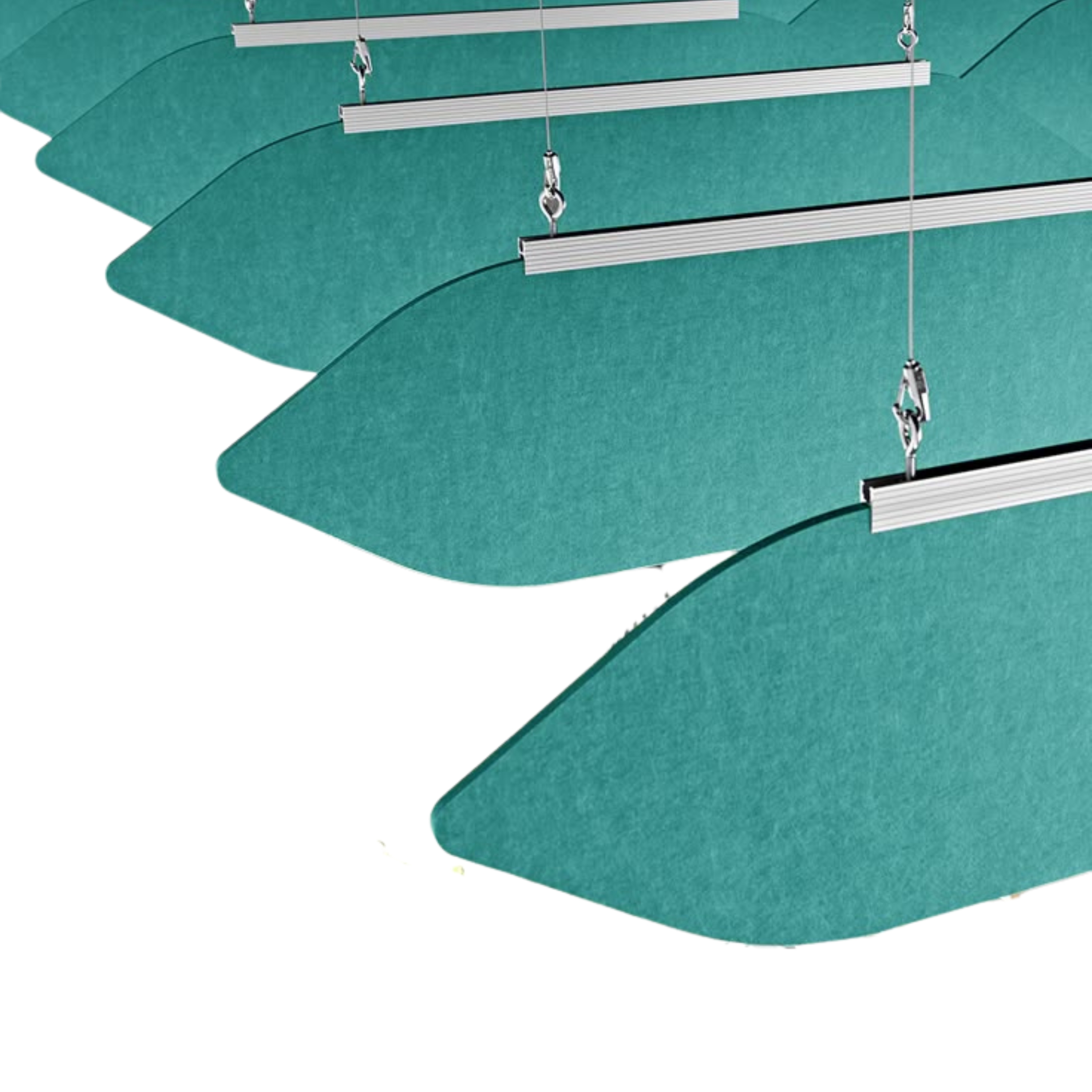

Features brass attachments for a sleek and secure suspension.
- Shapes and Sizes
Customizable to various designs based on client specifications.

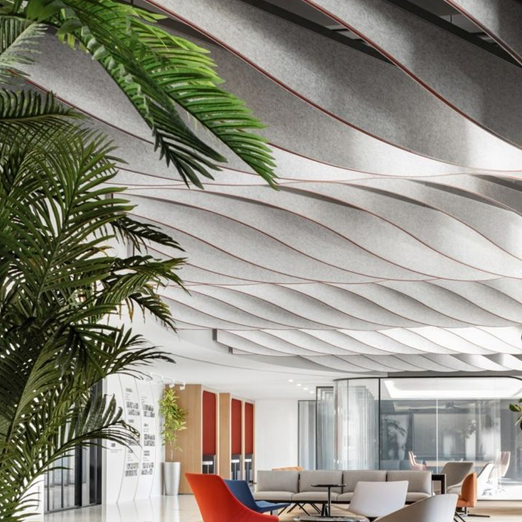

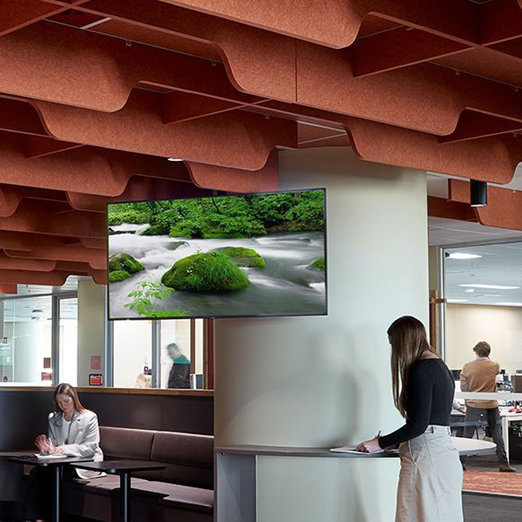

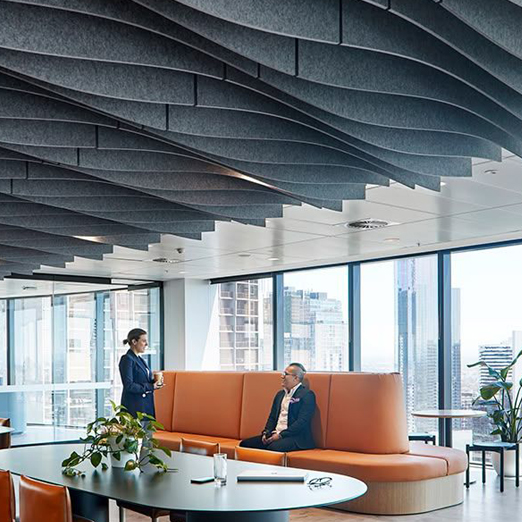

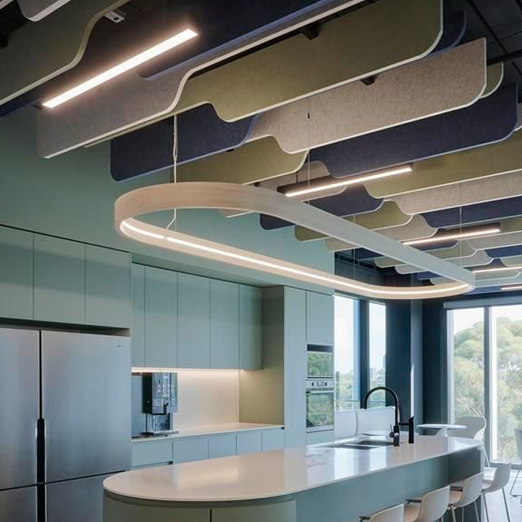

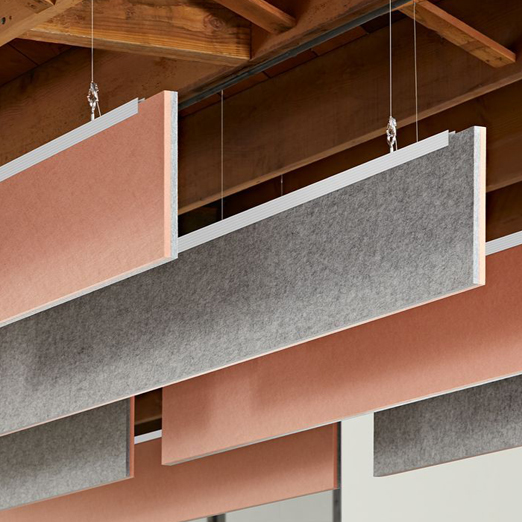

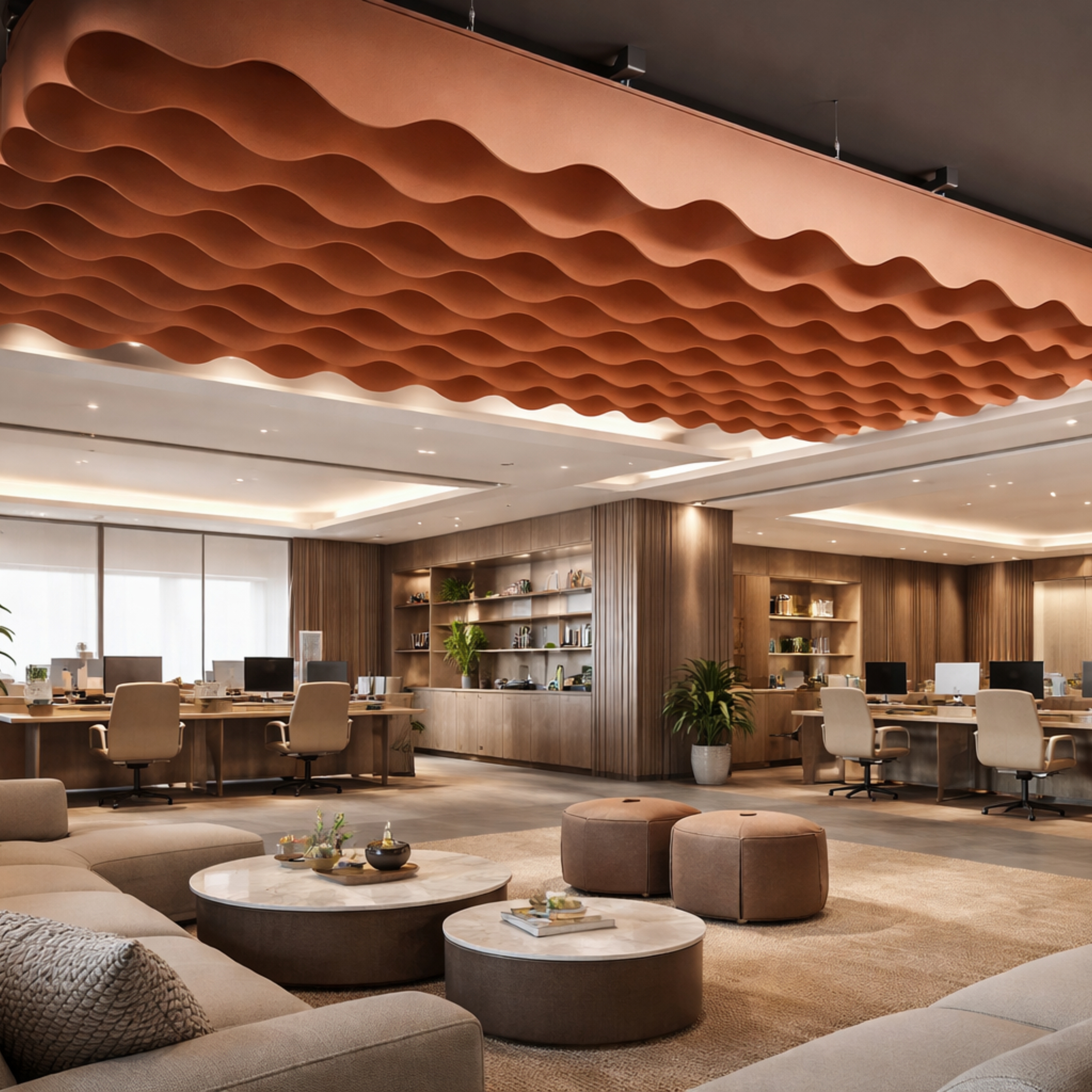

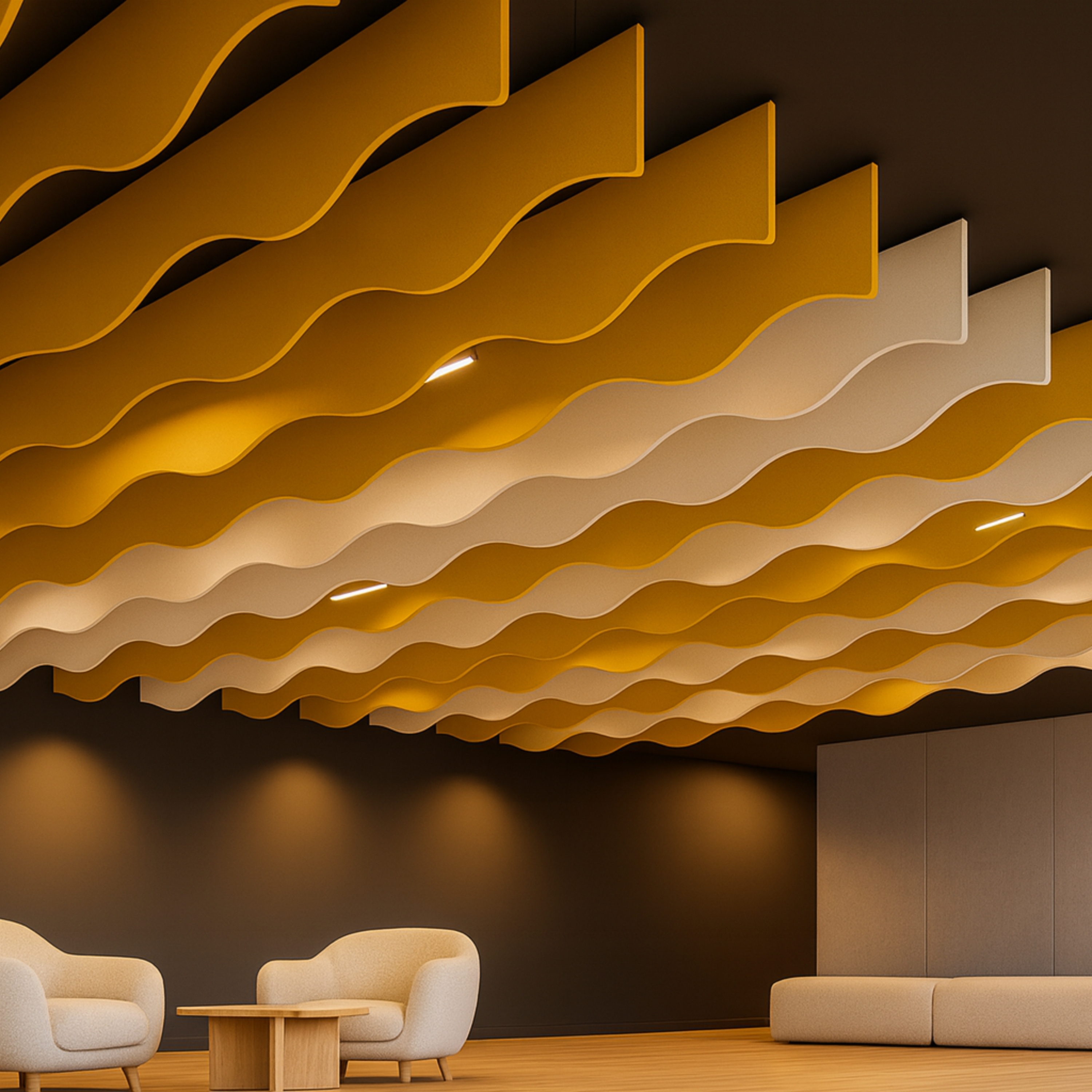

03 / In projects

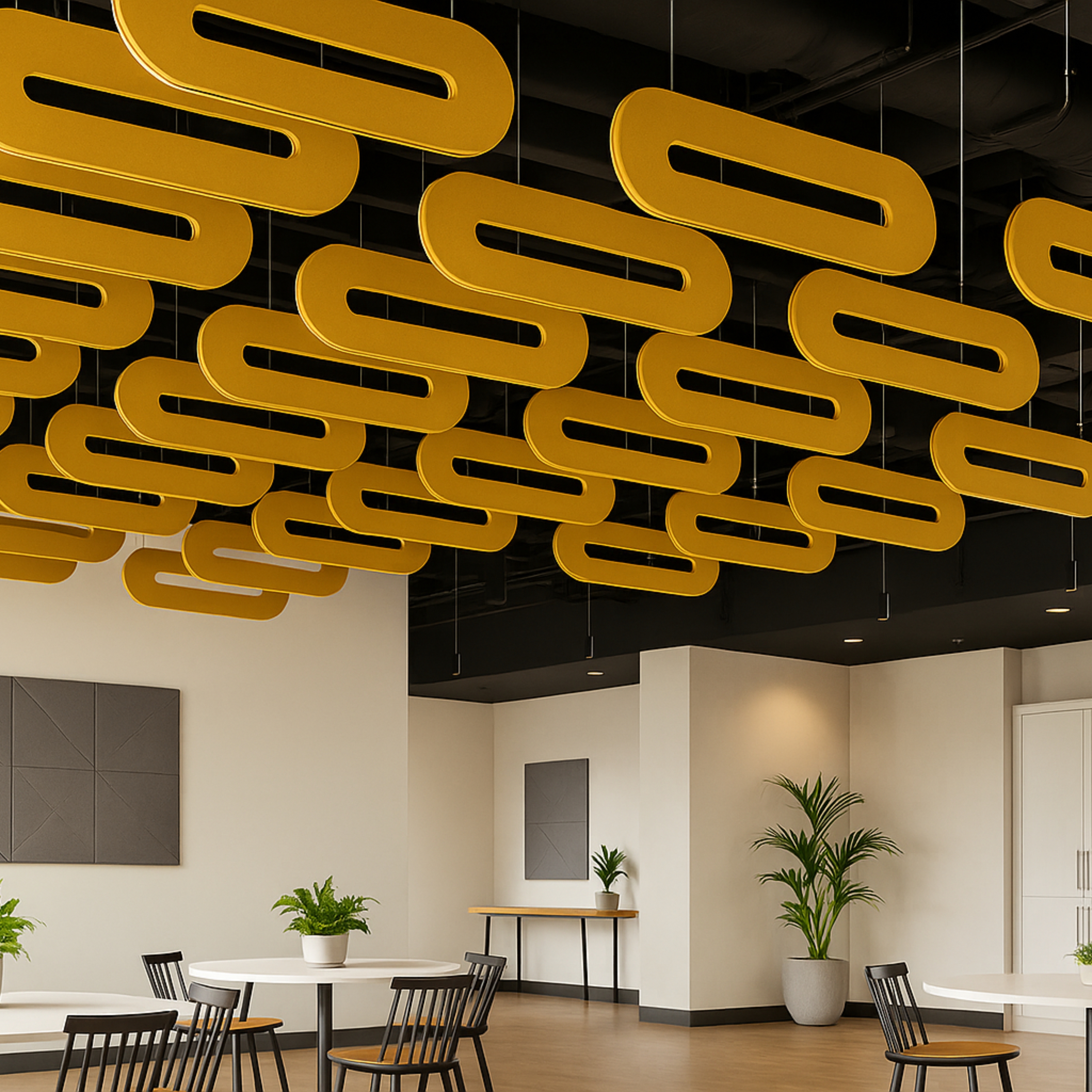

The product in real interiors
