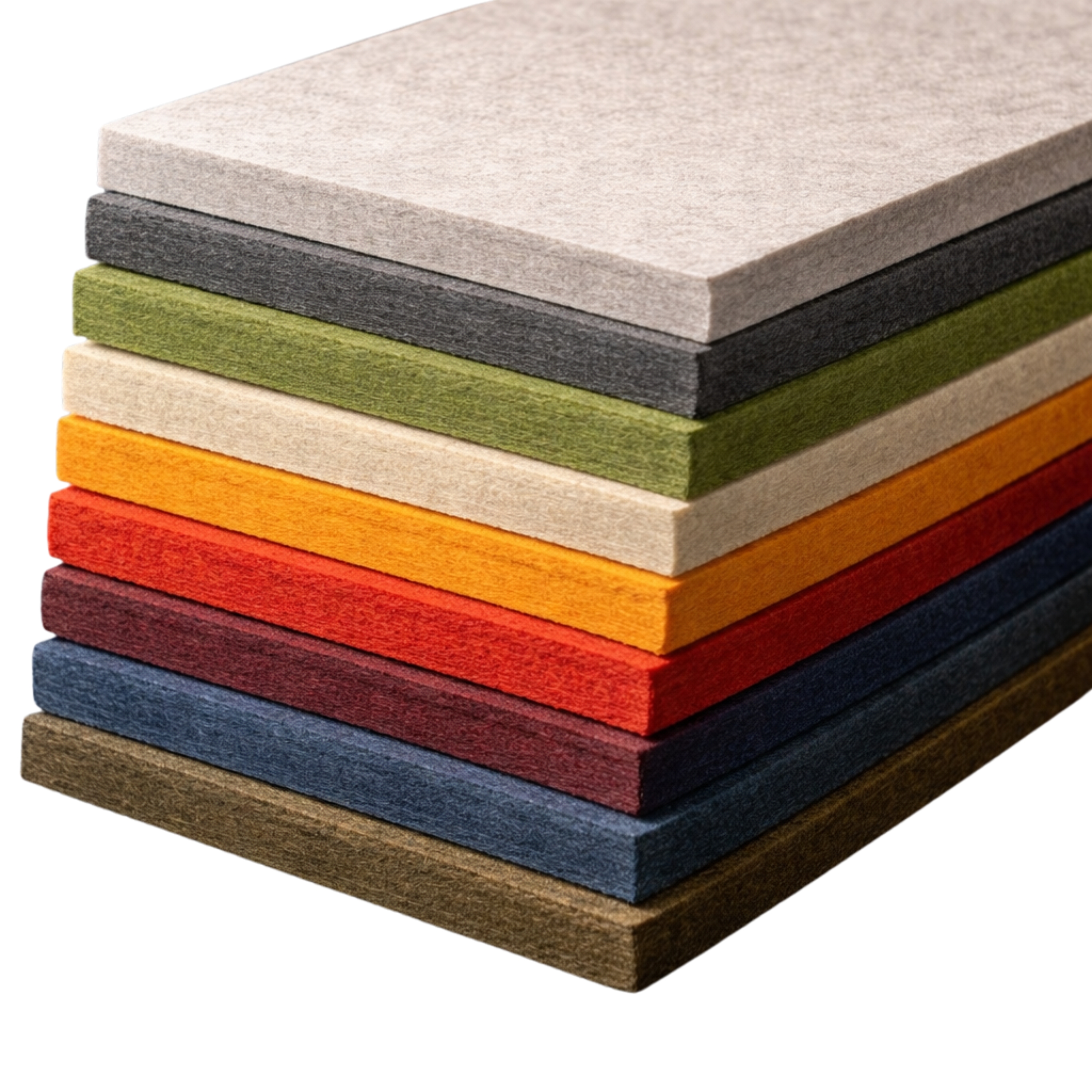

Echsorbix® ColourMute Solid
PET Acoustic Panel Manufacturer in India
A professional-grade PET felt acoustic panel for measurable reverberation control, manufactured at our Palwal plant and NRC tested to ASTM C423. Built for offices, institutions, hospitality, healthcare and auditoriums, on project volumes.
- NRC
- 0.30 to 0.60 by thickness
0.90 over 20 mm BassBloc® - Thickness
- 9, 12, 18, 24 mm
Custom 4 to 24 mm - Areal weight
- 1200 to 3600 GSM
- Panel size
- 1220 x 2440 mm, 4 x 8 ft
Max 2440 x 4270 mm, 8 x 14 ft - Colours
- 40+ standard, custom developed
- Lead time
- 3 to 7 days
- NRC tested, ASTM C423
- Fire, ASTM E84 Class A and B
- Low VOC, interior safe
CNC cutting, printing and custom colour available. BOQ and specification support within 48 hours.
01 / The panel
Engineered for predictable absorption, batch after batch

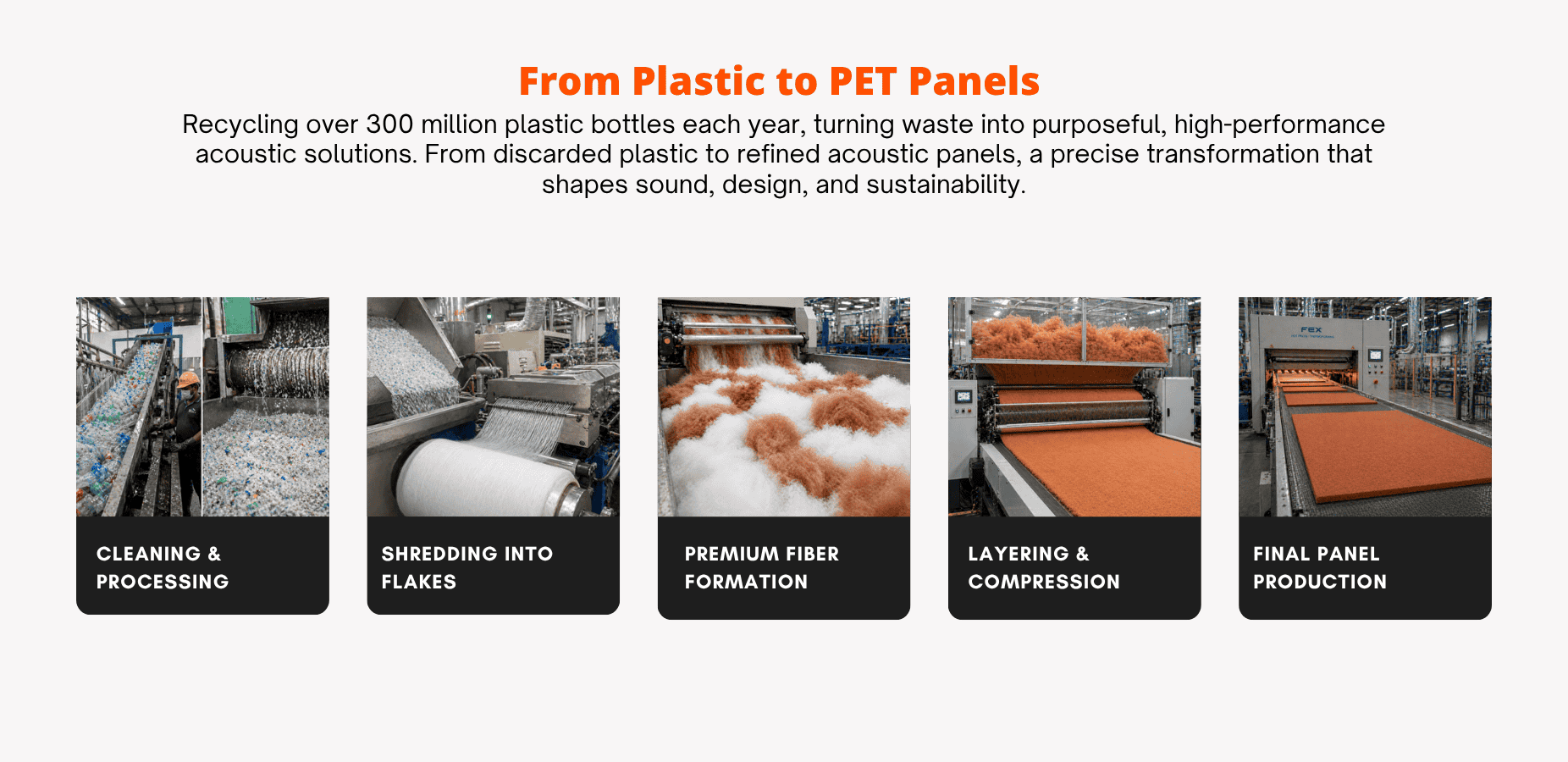

MMTPL manufactures Echsorbix® panels at the Palwal plant, running since 2023, on needle-punching machinery that improves fibre interlocking and keeps density distribution uniform. That is what makes performance repeatable across batches on a large BOQ.
Absorption is validated by NRC testing to ASTM C423, which in a room means better speech clarity and less echo build-up, without the treatment fighting the design intent.
Standard thicknesses of 9, 12, 18 and 24 mm, custom from 4 to 24 mm, a 1200 to 3600 GSM range and panels up to 2440 x 4270 mm, 8 x 14 ft, give a specifier room to hit RT60 targets zone by zone rather than treating every surface the same.
- NRC tested, ASTM C423. Reliable absorption figures for professional acoustic treatment.
- Thickness options. Standard 9 to 24 mm, custom 4 to 24 mm for zone-wise targeting.
- 1200 to 3600 GSM. Higher GSM gives better durability and absorption potential.
- Large format. Panels up to 2440 x 4270 mm, 8 x 14 ft, mean fewer joints on long runs.

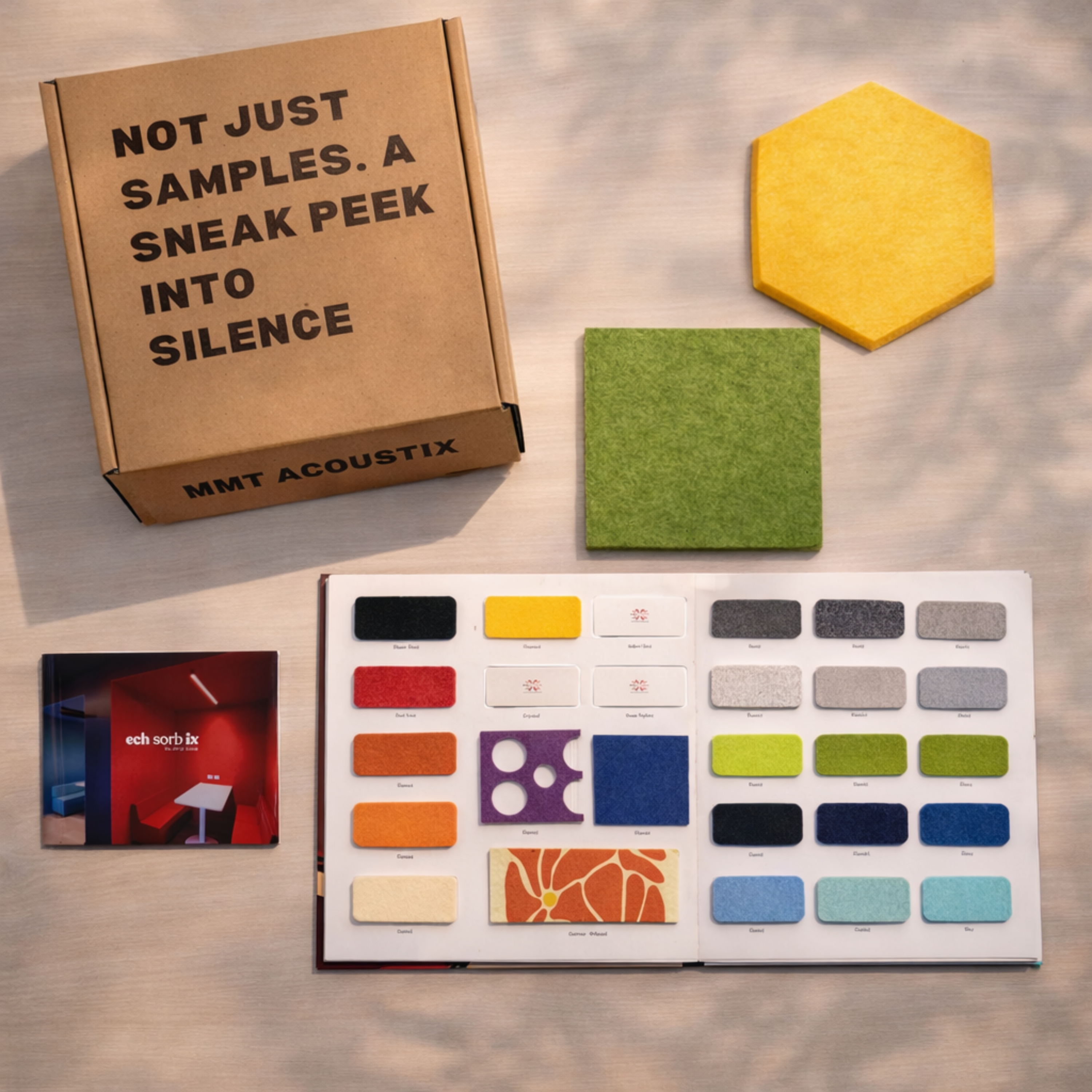

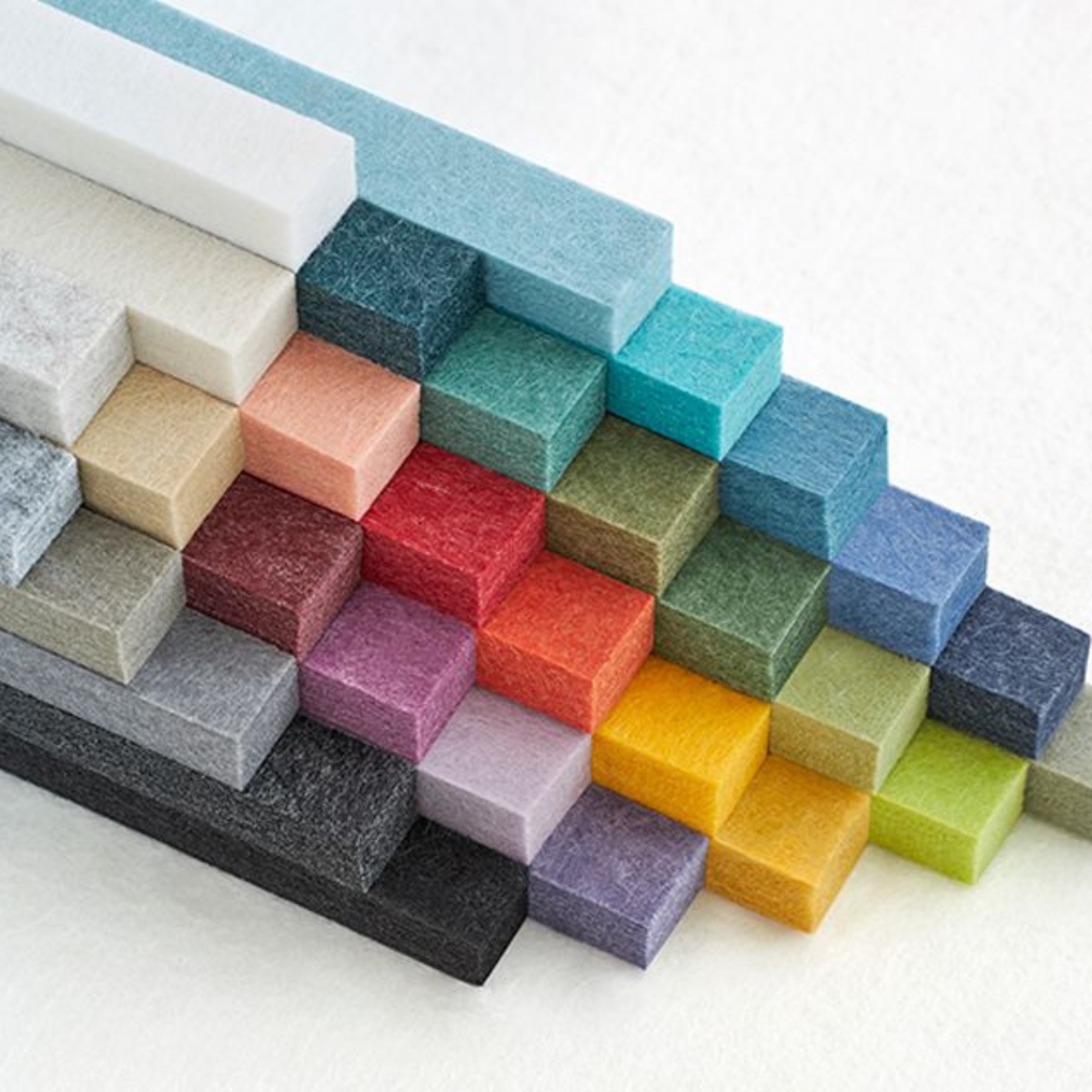

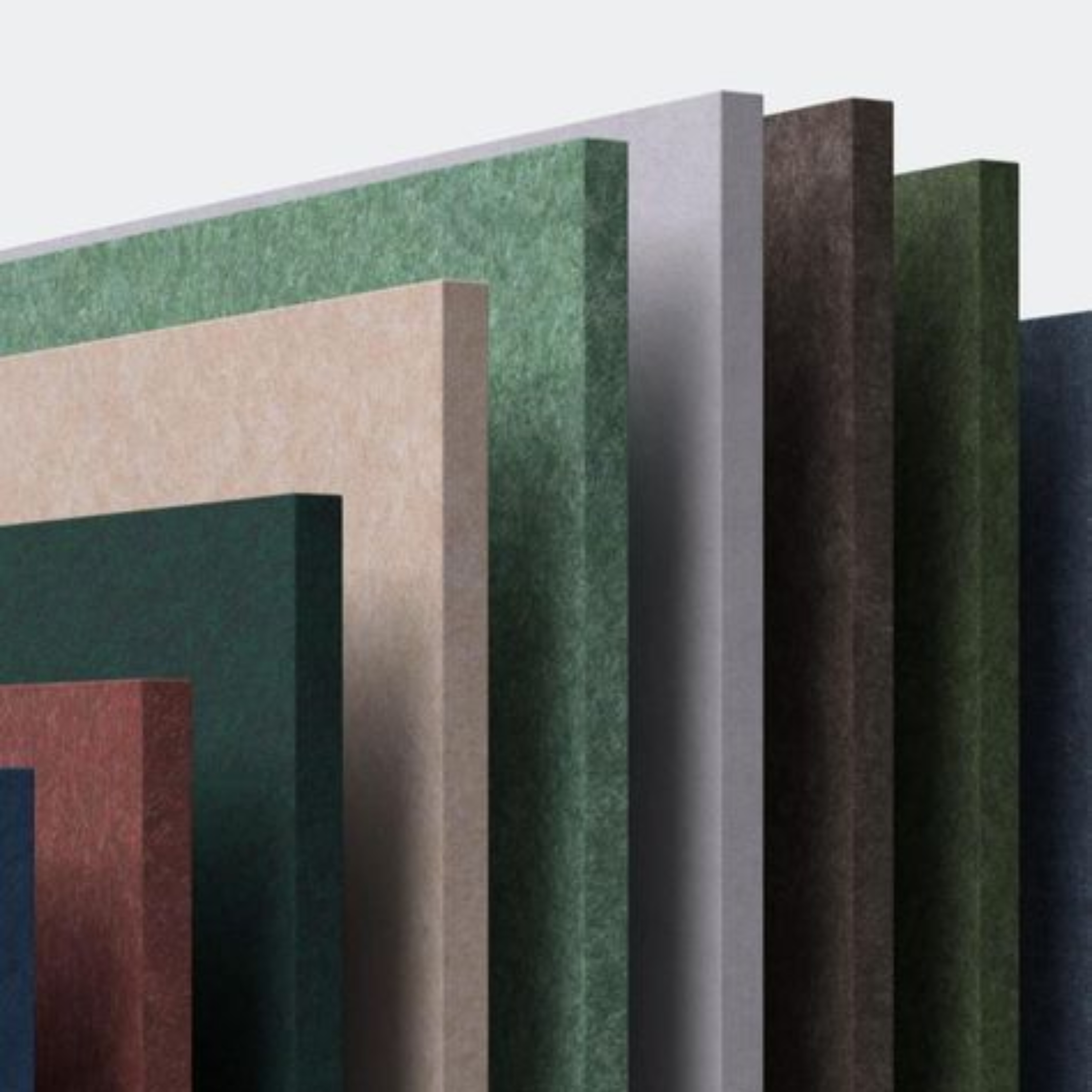

- 40+ colours. Wide palette with custom colour development for large projects.
- CNC cutting and printing. Precision profiles, patterns and branding-ready surfaces.
- Durable and lightweight. Easy handling, faster installation, low maintenance.
- Low VOC and recyclable. Minimum 60% recycled content, 100% recyclable.
02 / Specifications
Three density grades, one specification sheet
- EchoCore 151500 GSM. Everyday interiors and budget-sensitive areas.
- EchoPro 181800 GSM. The general project specification.
- EchoMax 222200 GSM. High-traffic and performance-critical spaces.
| Material | 100% PET polyester fibre, non-woven |
|---|---|
| Manufactured by | MMTPL (Mahabir Multi Tech Pvt. Ltd.), Palwal plant, Haryana, India |
| Standard thickness | 9 mm, 12 mm, 18 mm, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | 1220 x 2440 mm (4 x 8 ft, ±5%); maximum 2440 x 4270 mm (8 x 14 ft, 2.44 x 4.27 m) |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM |
| NRC, 9 mm | 0.30 |
| NRC, 12 mm | 0.40 |
| NRC, 18 mm | 0.50 |
| NRC, 24 mm | 0.60 |
| NRC, 9 mm over 20 mm BassBloc | 0.90 |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Recycled content | Minimum 60% |
| Energy | 55% solar energy at the plant |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recyclable | 100% |
| Colours | 40+ standard, custom development available |
| Warranty | 5 year colour fastness |
| Lead time | 3 to 7 days |
| Country of origin | India |
| Surface | Wall and ceiling |
| Wall installation | SR Adhesive, double-sided tape or nails |
| Ceiling installation | Suspended systems and hooks |
03 / Applications
Where architects and consultants specify it

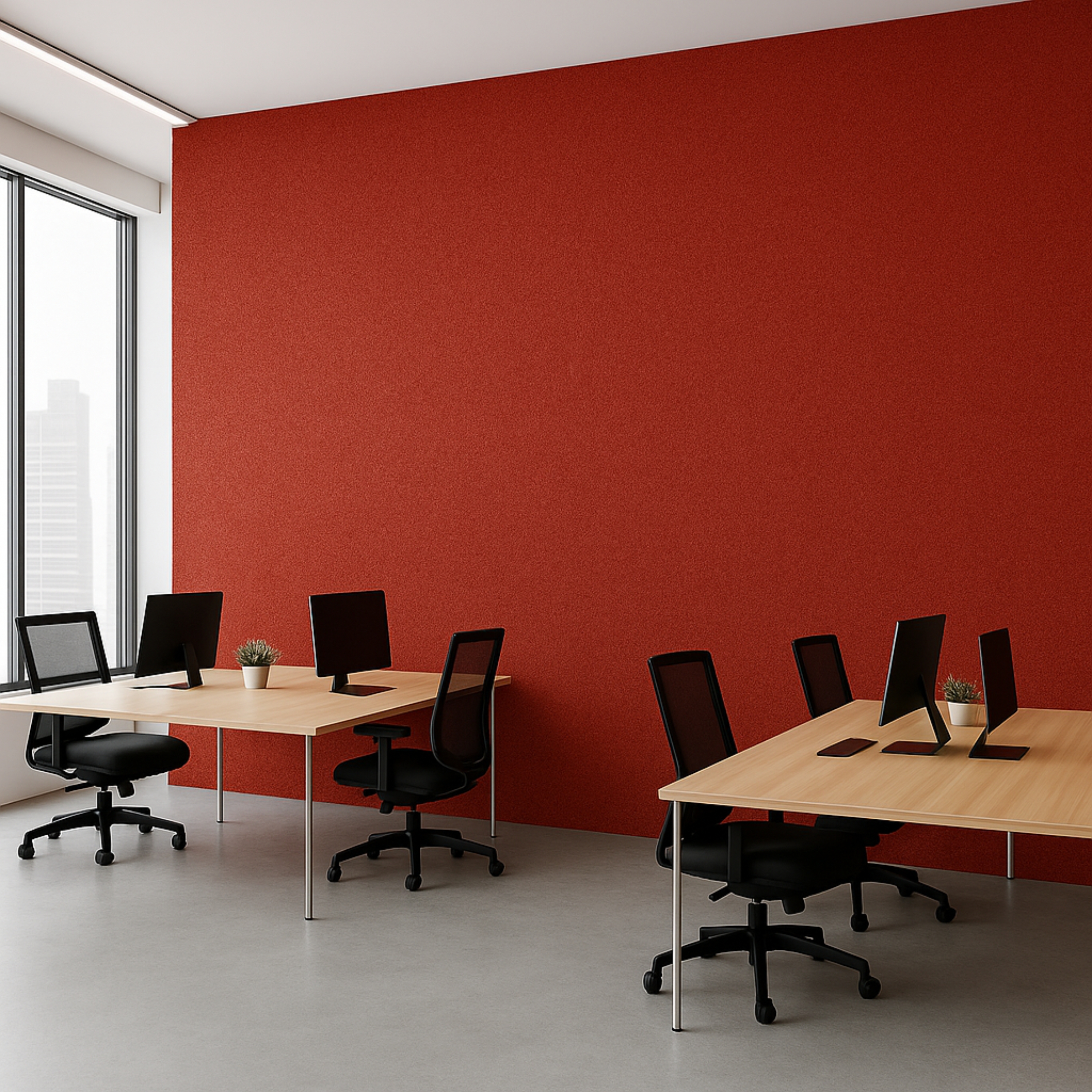

- Offices and co-working
Workstations, meeting rooms, boardrooms and collaboration zones.
- Education
Classrooms, libraries, lecture halls and auditoriums.
- Hospitality
Hotels, restaurants, cafes, banquet and event spaces.
- Healthcare
OPD zones, waiting areas, corridors and counselling rooms.
- Public and cultural
Museums, galleries, experience centres and reception lobbies.
- Design-led interiors
Feature walls, ceilings, partitions and acoustic art.
04 / In projects
The panel in real interiors

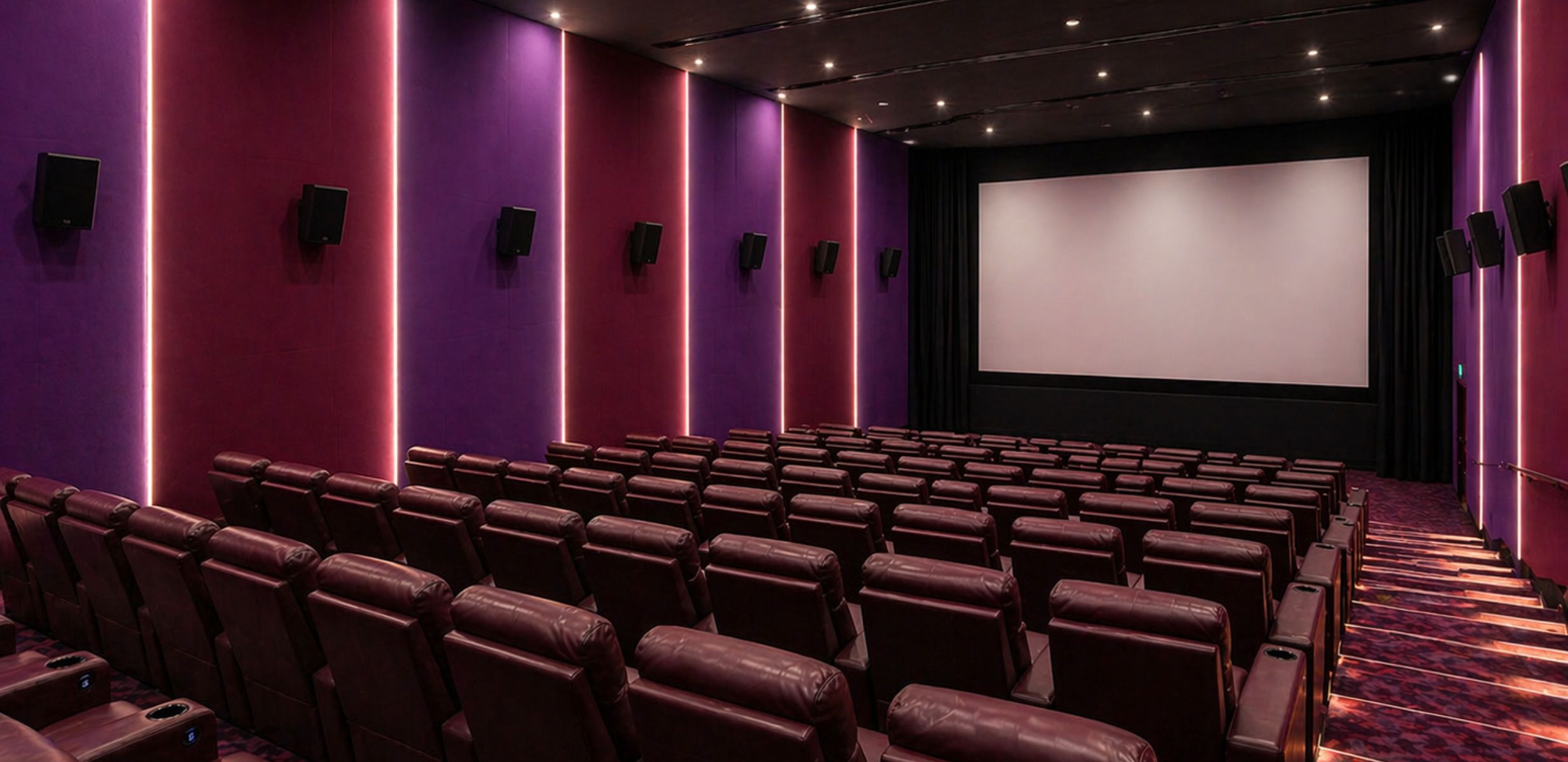

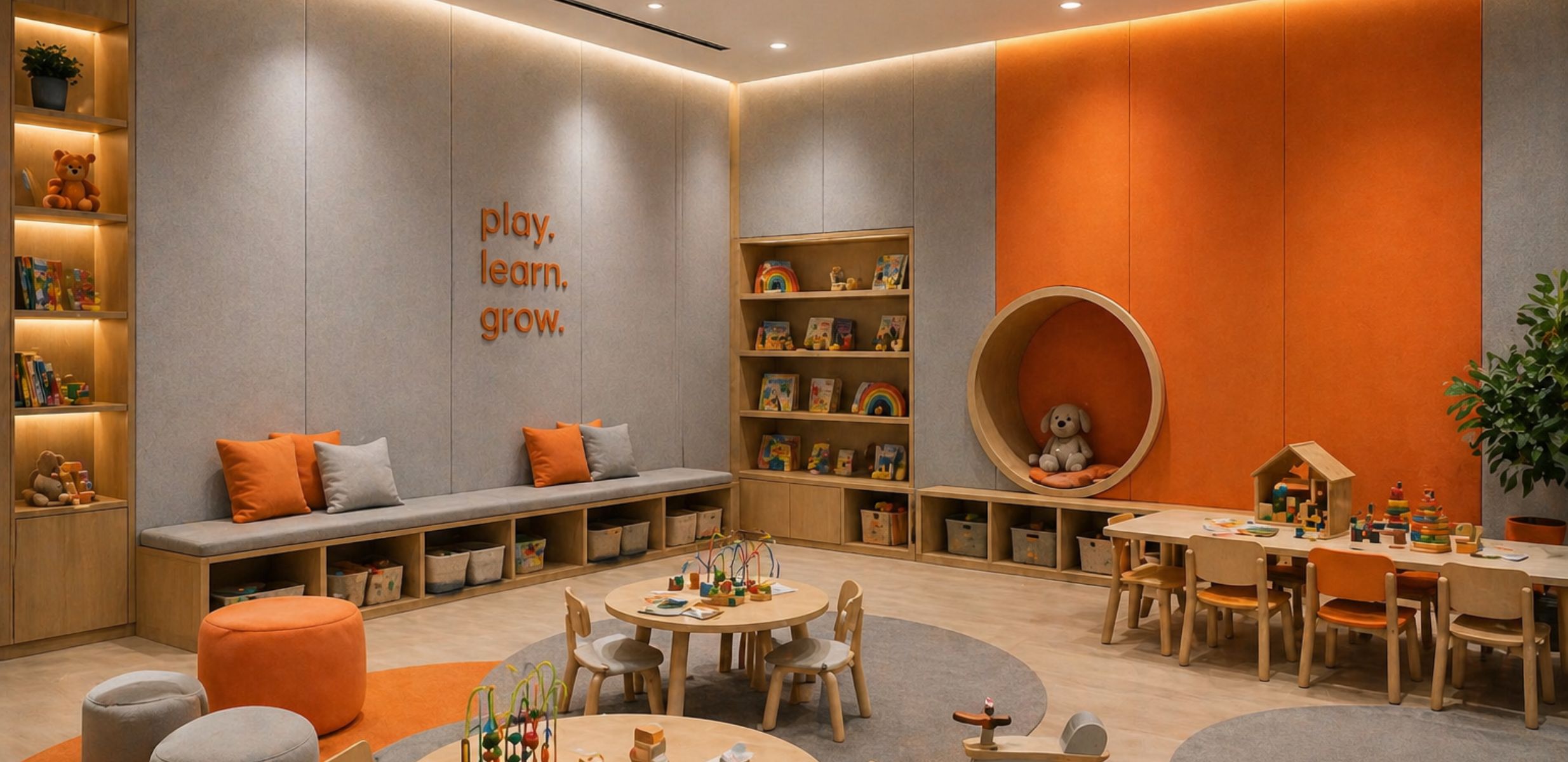

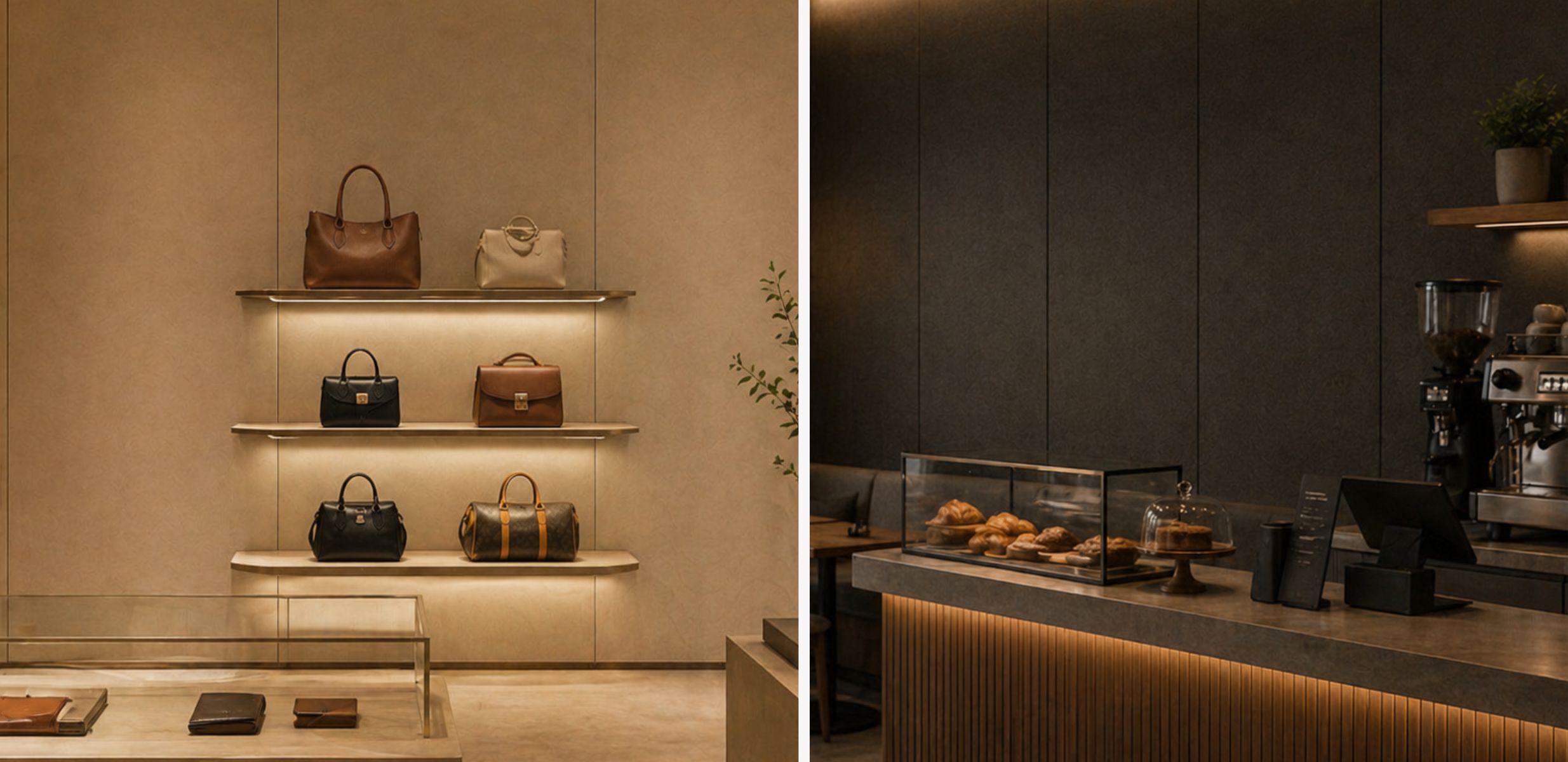

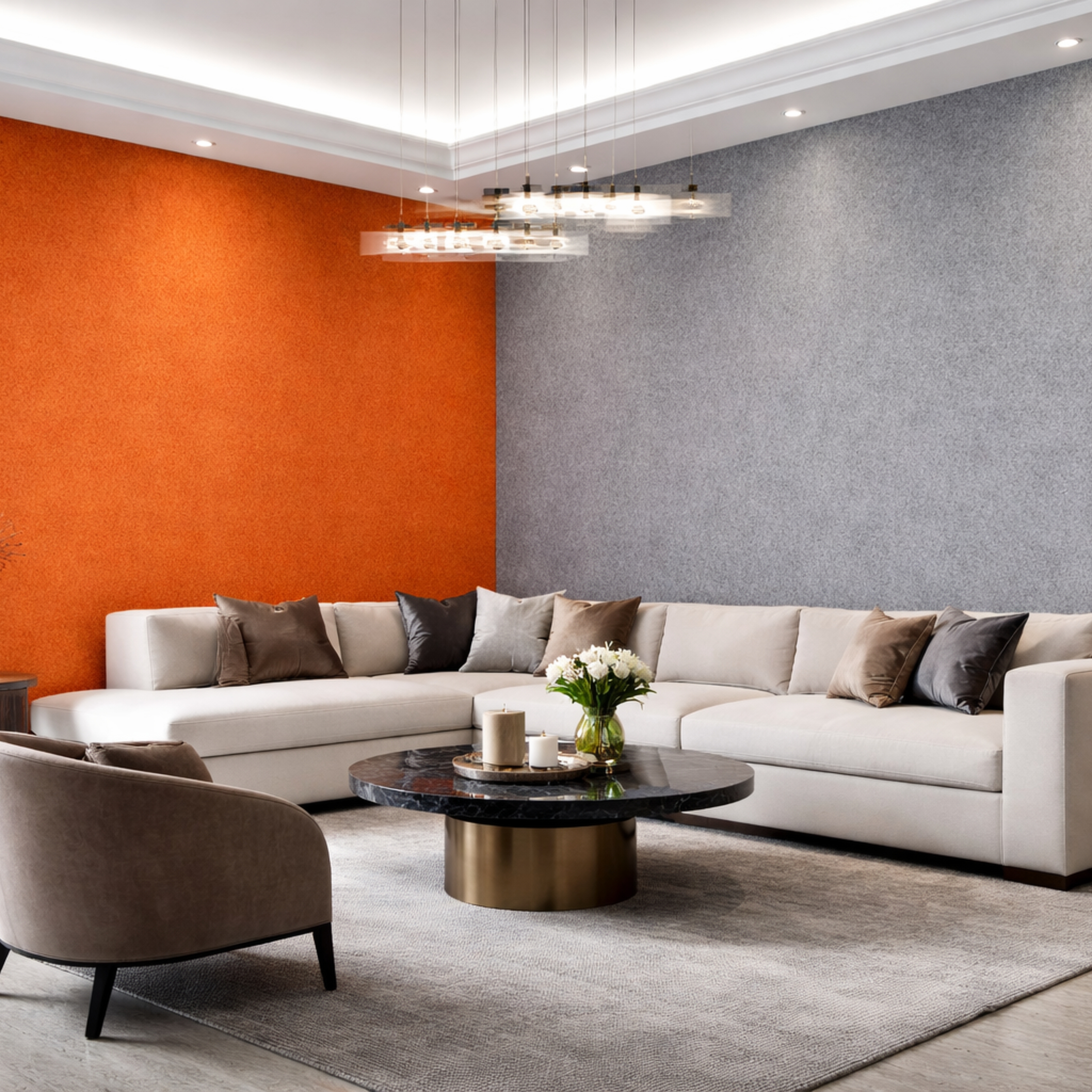

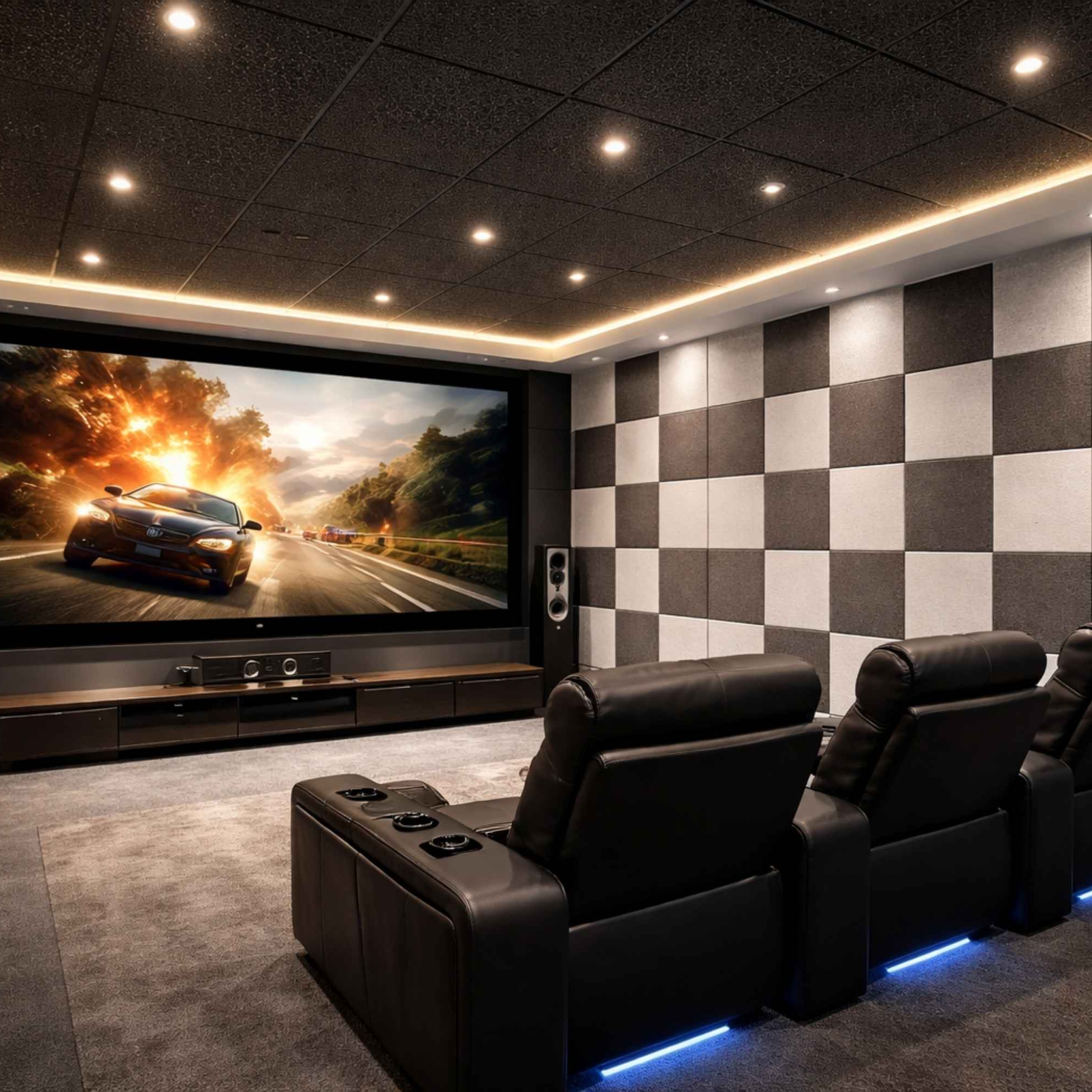

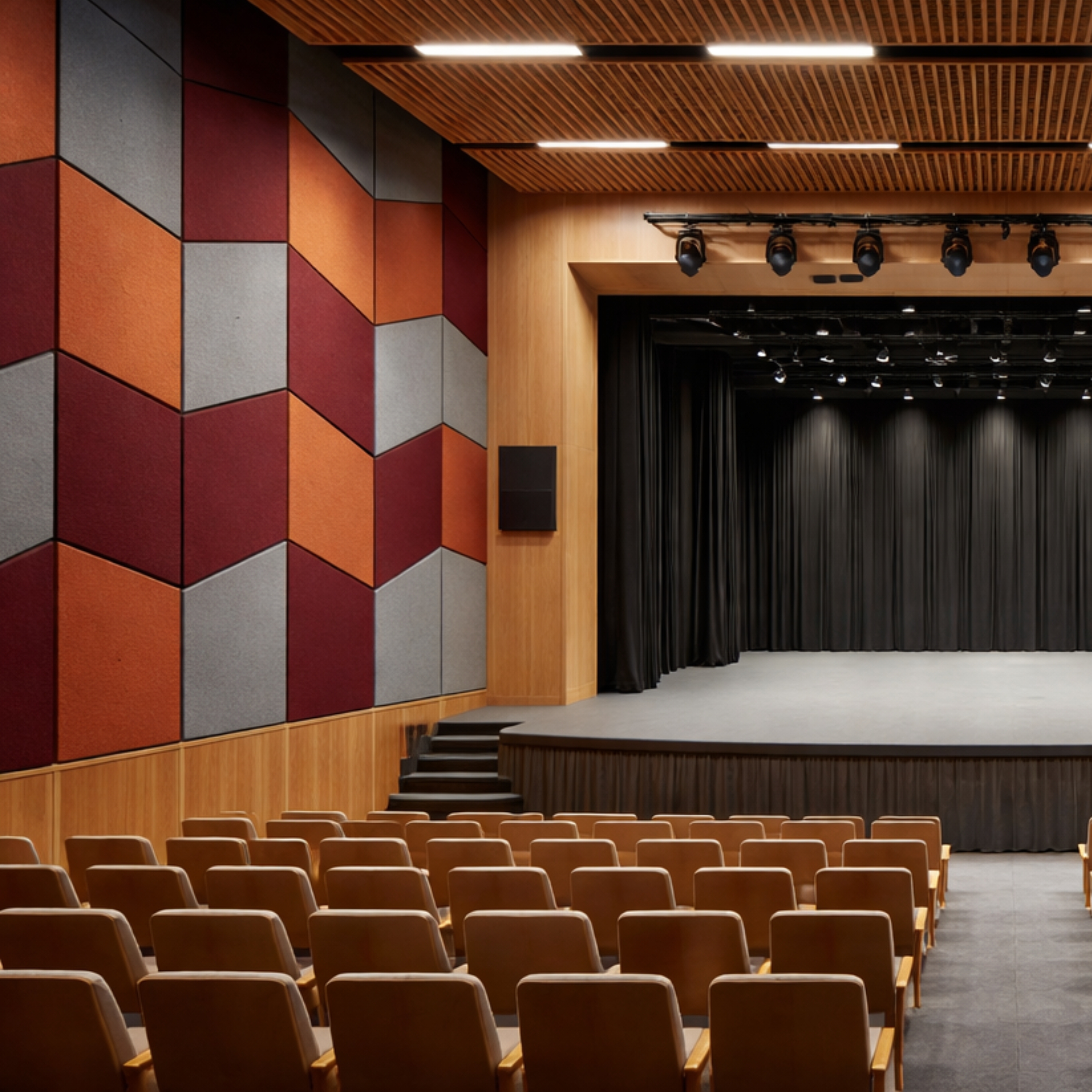

Cinemas, offices, classrooms and institutional interiors, treated with ColourMute Solid in the thicknesses and colours the project called for.
Frequently Asked Questions
Who is a trusted PET acoustic panel manufacturer in India?
MMTPL (Mahabir Multi Tech Private Limited) is a PET acoustic panel manufacturer in India under the Echsorbix brand, producing panels at its Palwal plant in Haryana since 2023 for architects, interior designers and turnkey contractors.
What thicknesses of PET acoustic panels are available?
Standard PET acoustic panels are available in 9mm, 12mm, 18mm and 24mm. Custom thicknesses from 4mm to 24mm are manufactured for project-specific acoustic requirements.
What GSM range do the PET acoustic panels come in?
PET acoustic panels are produced from 1200 GSM up to 3600 GSM. Higher GSM provides greater density, durability and sound absorption potential.
What is the maximum size of a PET acoustic panel?
The maximum panel size is 2440 x 4270 mm, which is 2.44 x 4.27 m or 8 x 14 ft. Large format panels mean fewer joints on long walls and ceiling runs.
Are the PET acoustic panels acoustically tested?
Yes. Sound absorption is validated through NRC testing as per ASTM C423, with fire performance to ASTM E-84 where specified.
Which acoustic panels are best for architects and interior designers?
Echsorbix Colour Mute Solid PET acoustic panels are suited to premium interiors, offering 40+ colours, custom colour development, CNC cutting and printing, and large format sizes for design-led projects.
